Driver Side Door Entry Lock Function does not Operate: Wiring Diagram

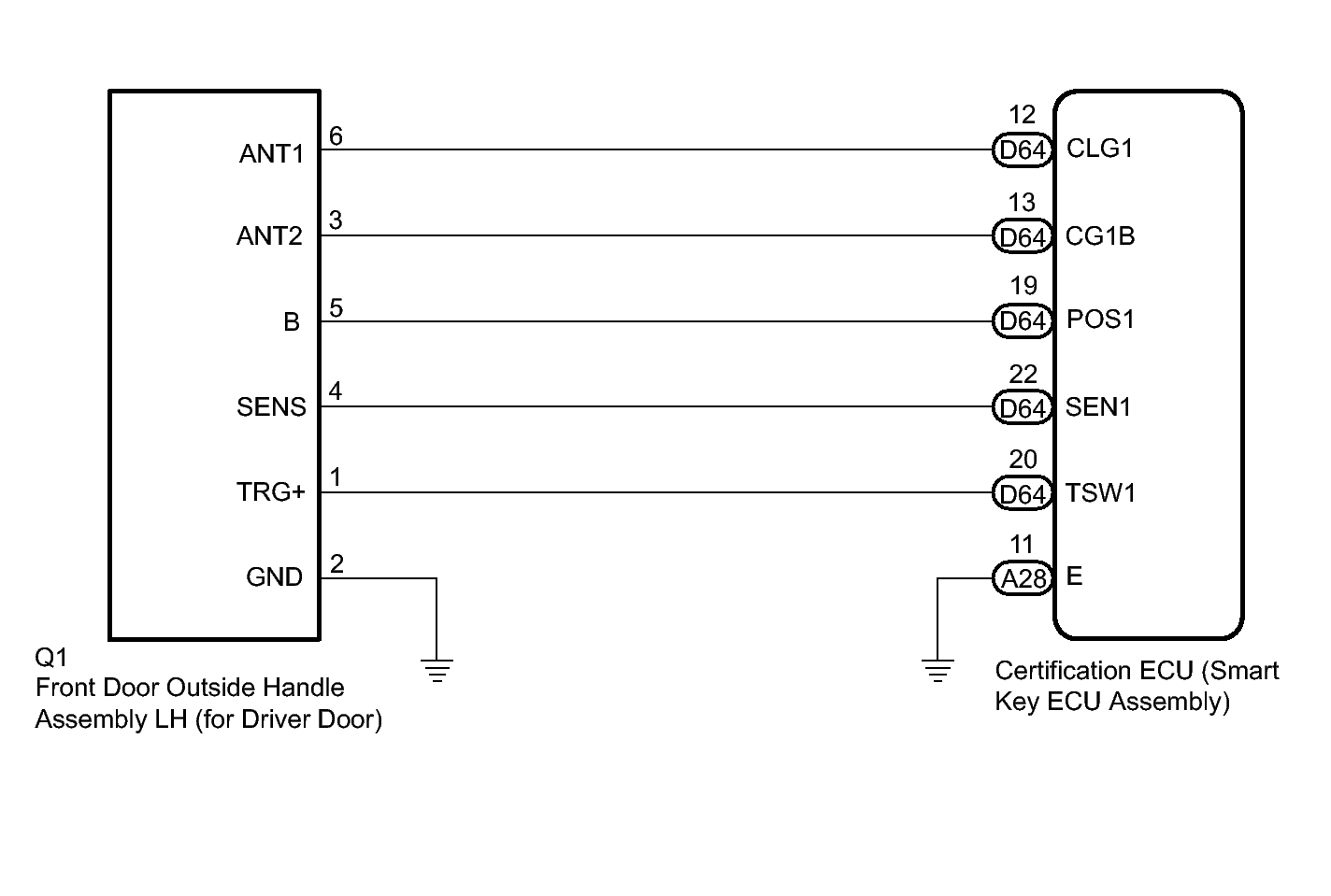

Fig 1: Front Door Outside Handle Assembly LH (for driver door) Wiring Diagram
GTY365583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
