Front Passenger Side Power Window Auto Up / Down Function does not Operate with Front Passenger Side Power Window Switch: Wiring Diagram

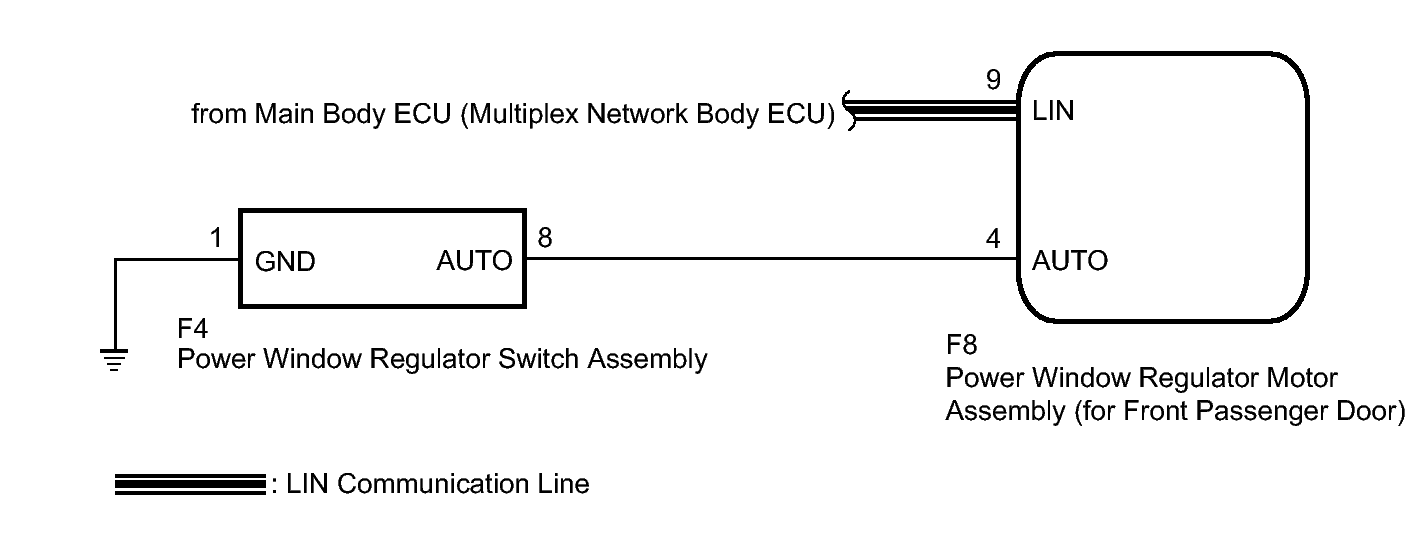

Fig 1: Power Window Regulator Motor Assembly (For Front Passenger Door) Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
