Immobiliser System, Remote Engine Starter System, Smart Key System, Starting, Steering Lock, Wireless Charging System and Wireless Door Lock Control: Notes

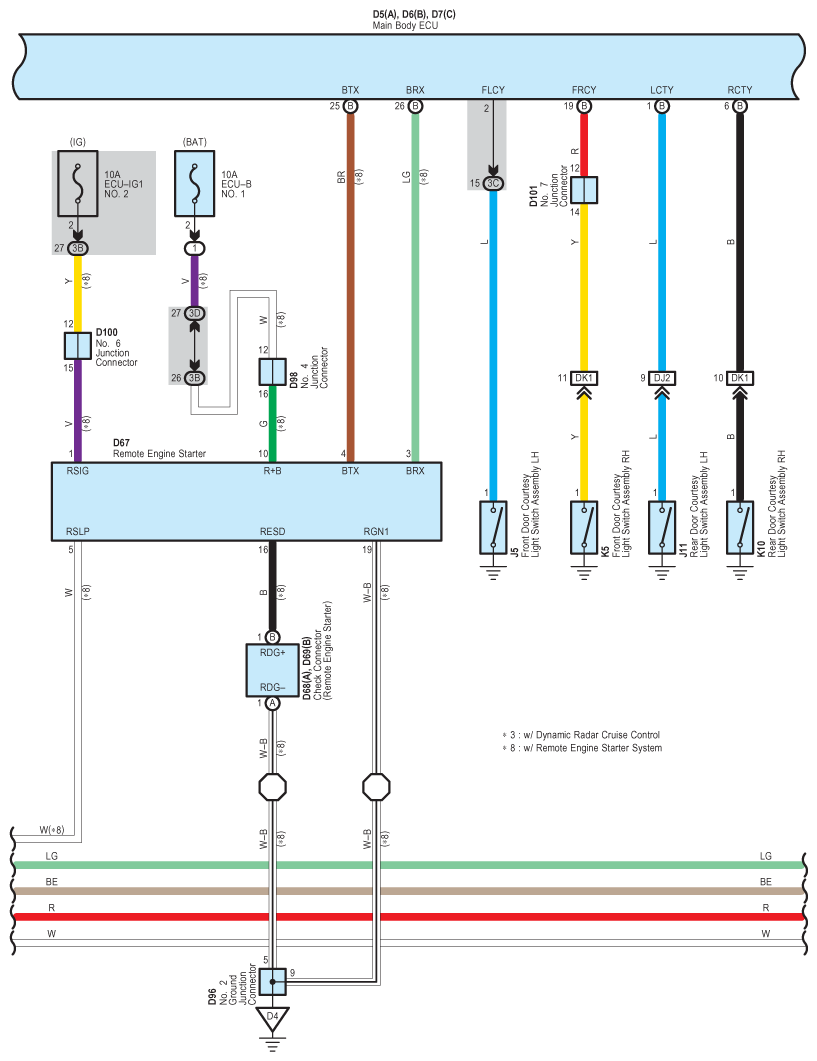

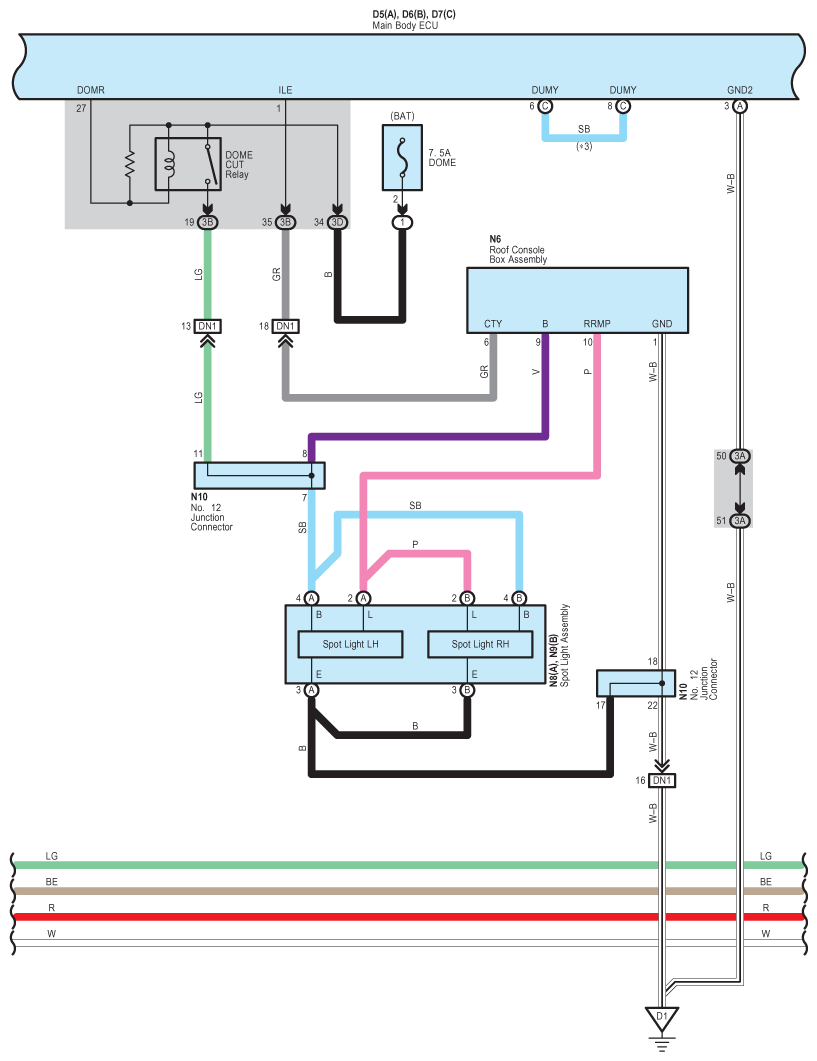

Fig 1: Immobiliser, Remote Engine Starter, Smart Key, Steering Lock, Wireless Charging System Wiring Diagram (1 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

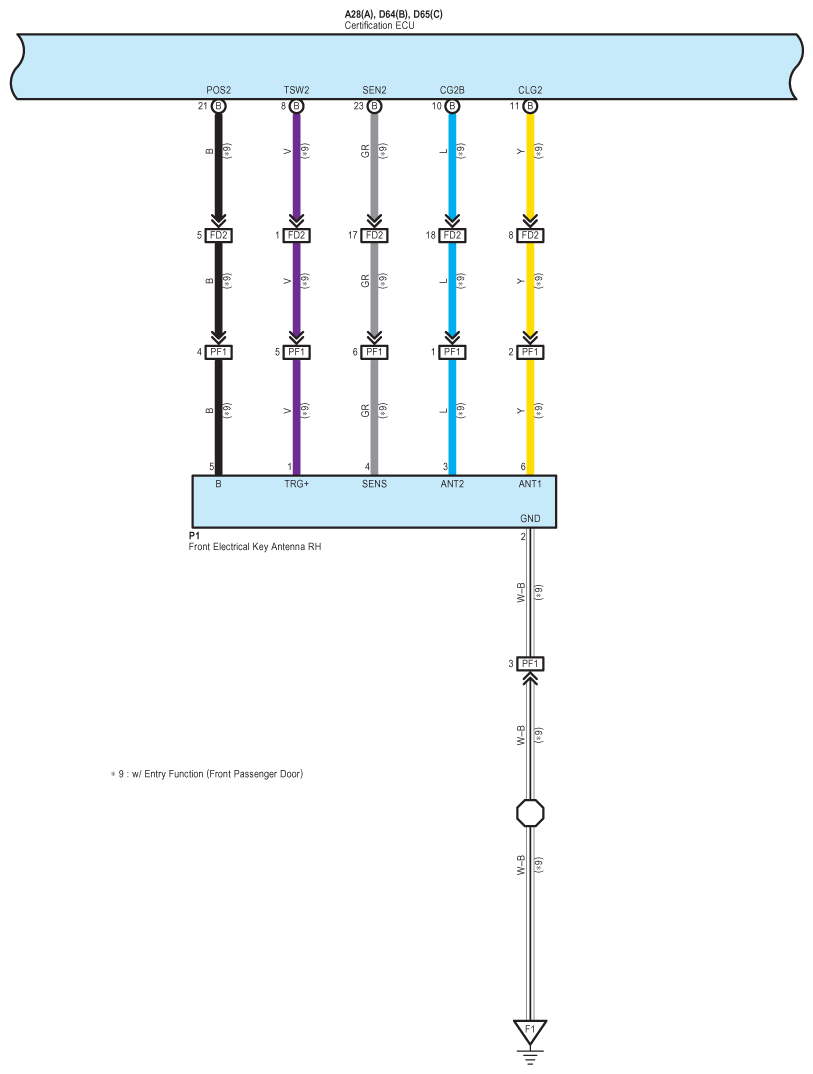

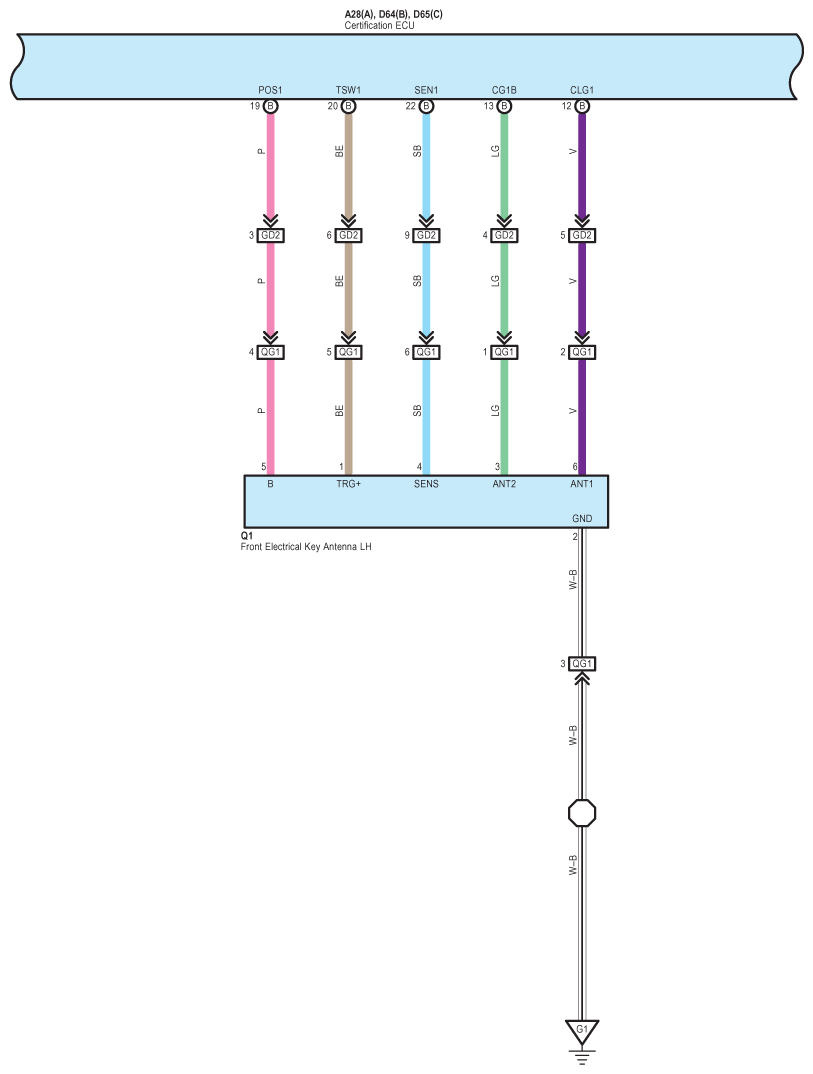

Fig 2: Immobiliser, Remote Engine Starter, Smart Key, Steering Lock, Wireless Charging System Wiring Diagram (2 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

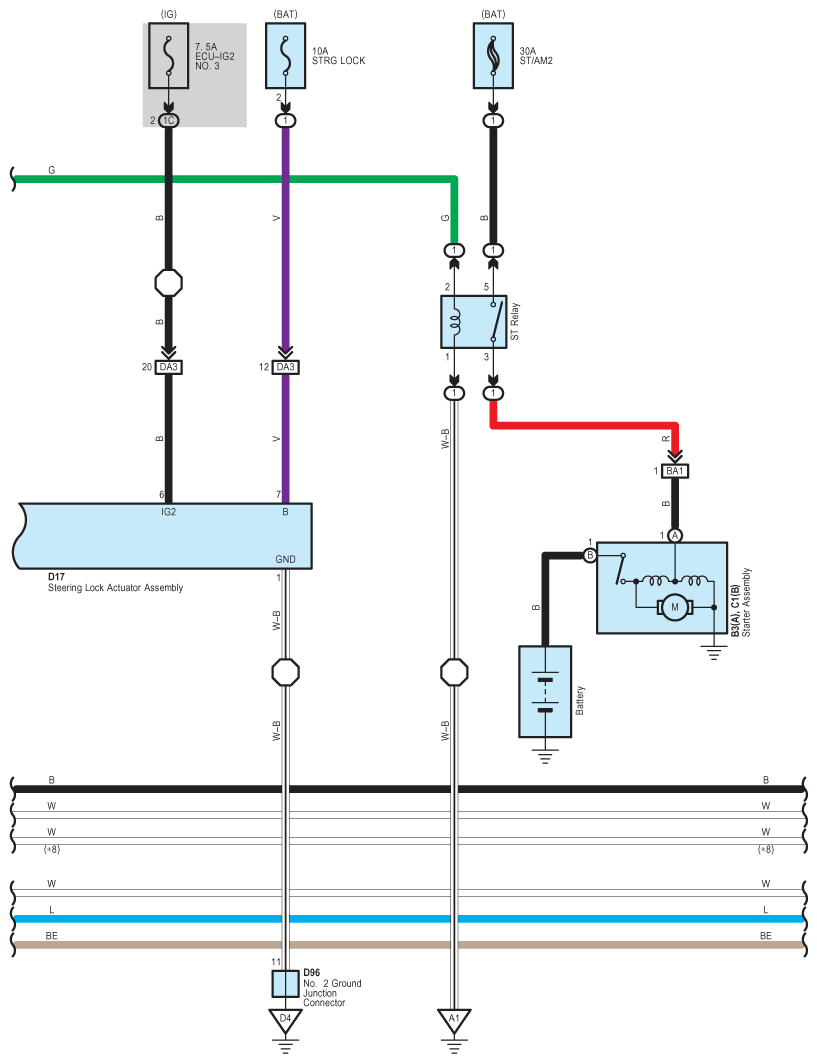

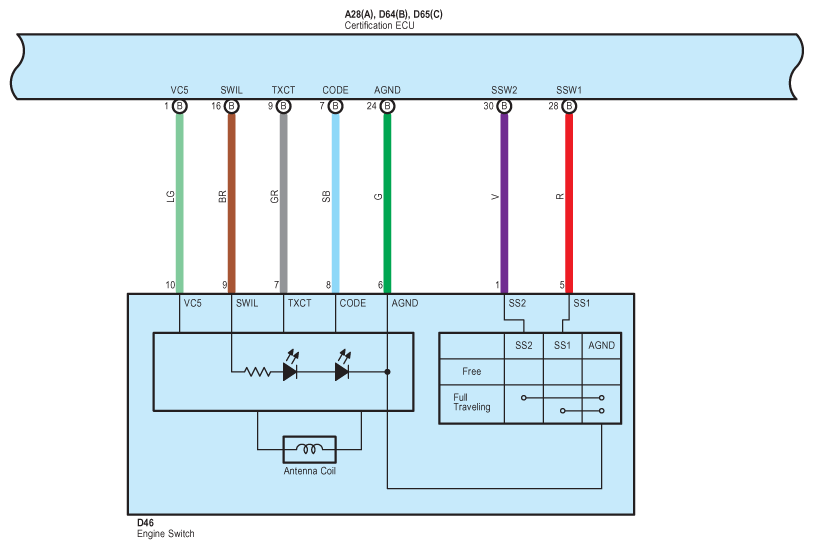

Fig 3: Immobiliser, Remote Engine Starter, Smart Key, Steering Lock, Wireless Charging System Wiring Diagram (3 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

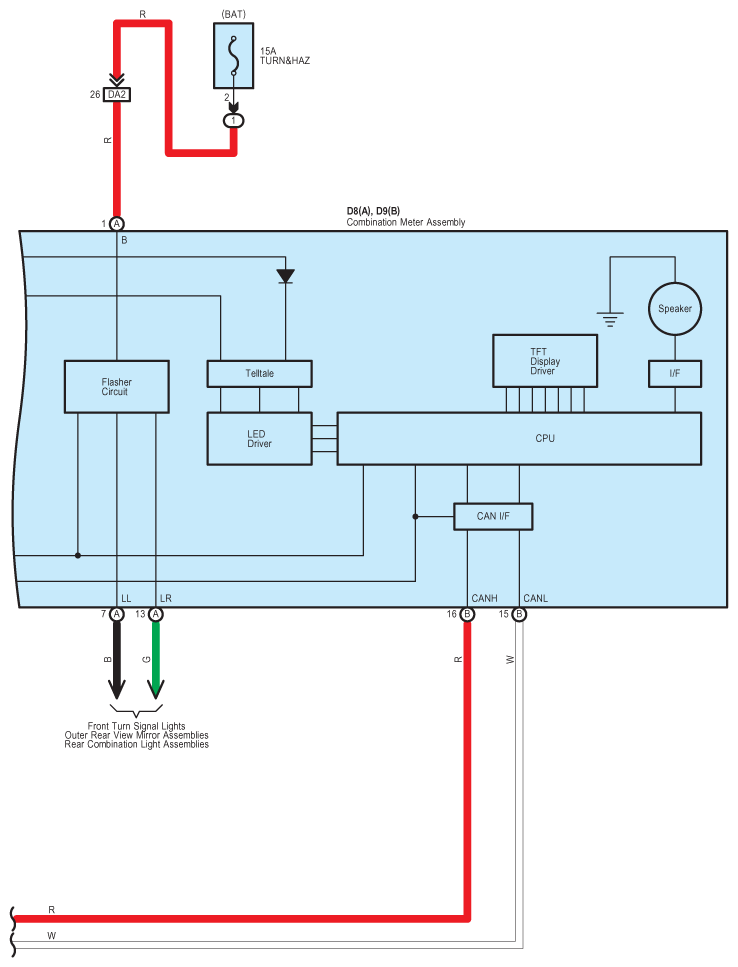

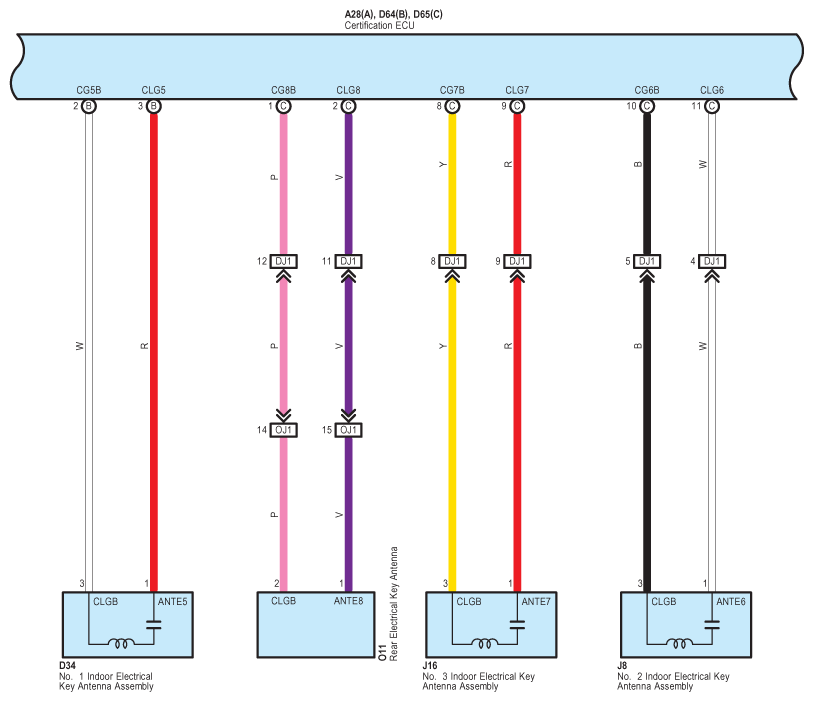

Fig 4: Immobiliser, Remote Engine Starter, Smart Key, Steering Lock, Wireless Charging System Wiring Diagram (4 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

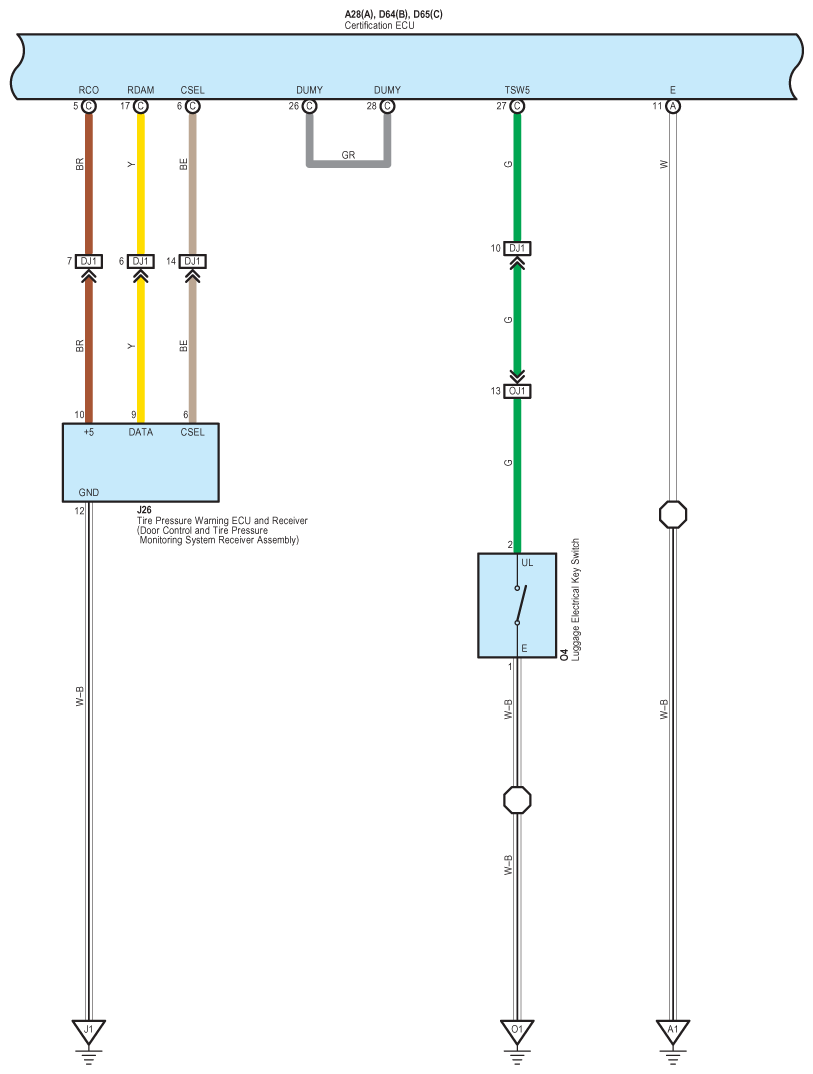

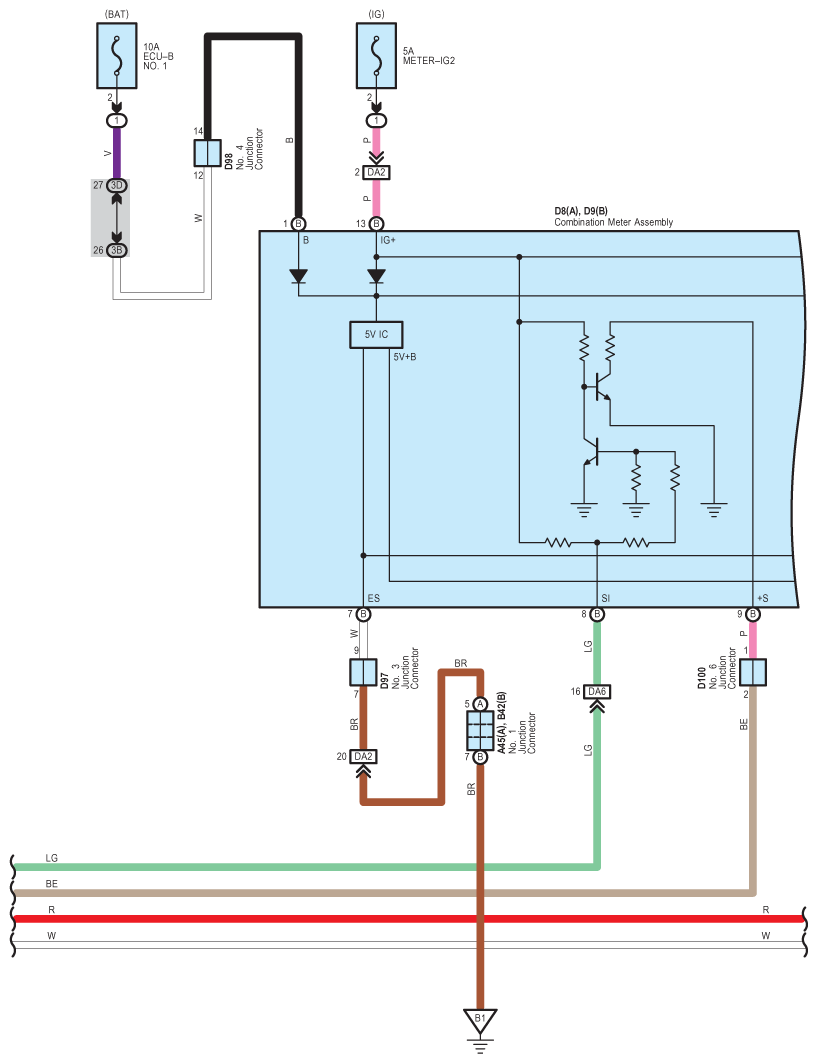

Fig 5: Immobiliser, Remote Engine Starter, Smart Key, Steering Lock, Wireless Charging System Wiring Diagram (5 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

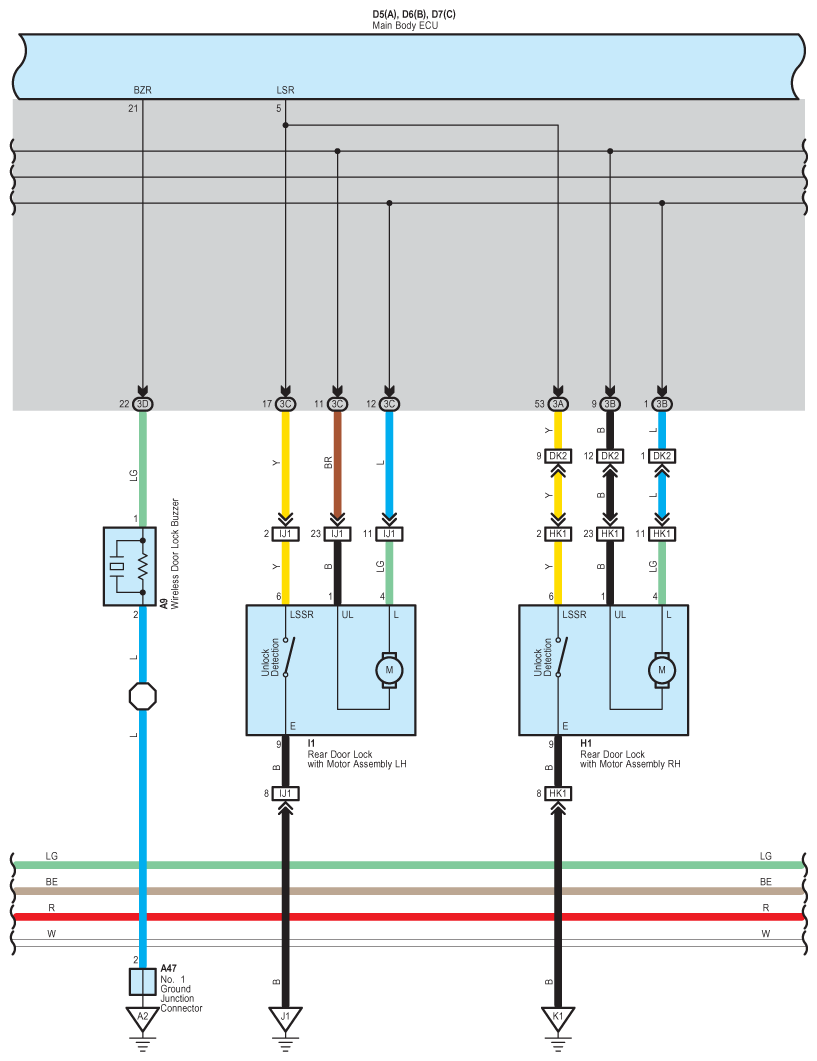

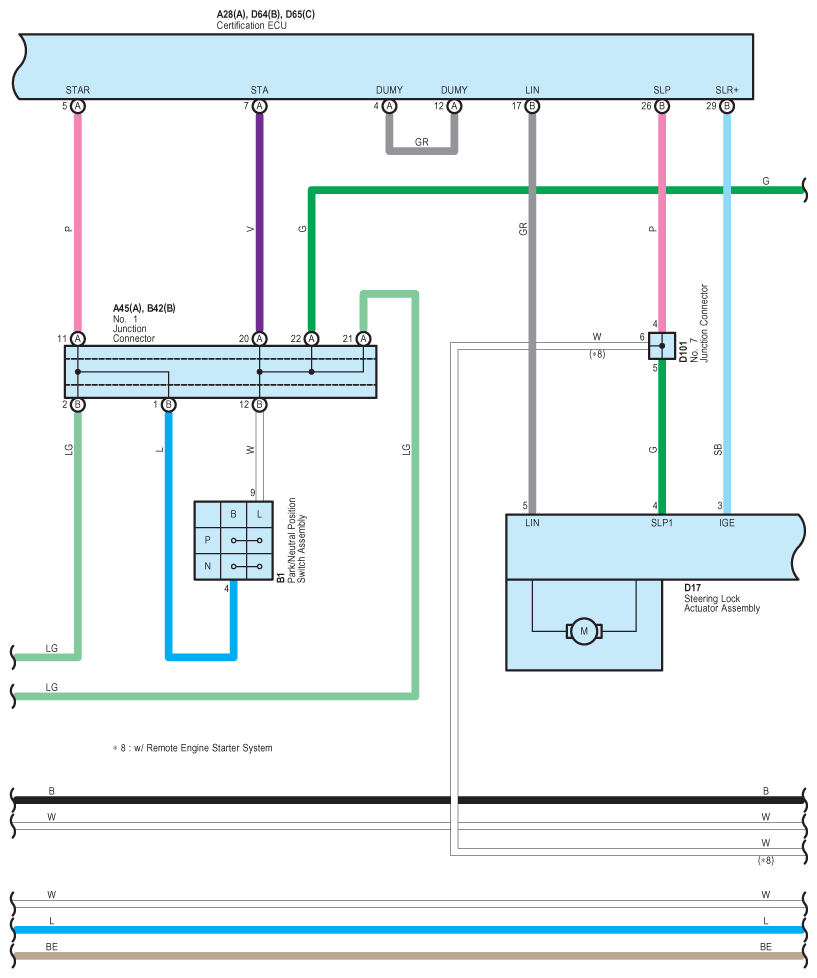

Fig 6: Immobiliser, Remote Engine Starter, Smart Key, Steering Lock, Wireless Charging System Wiring Diagram (6 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

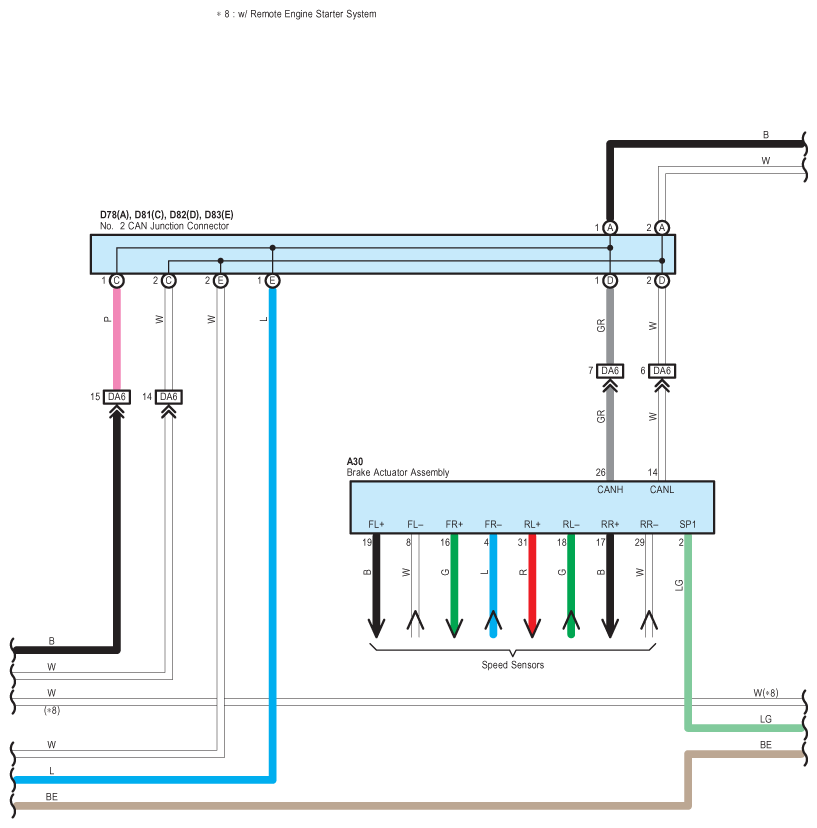

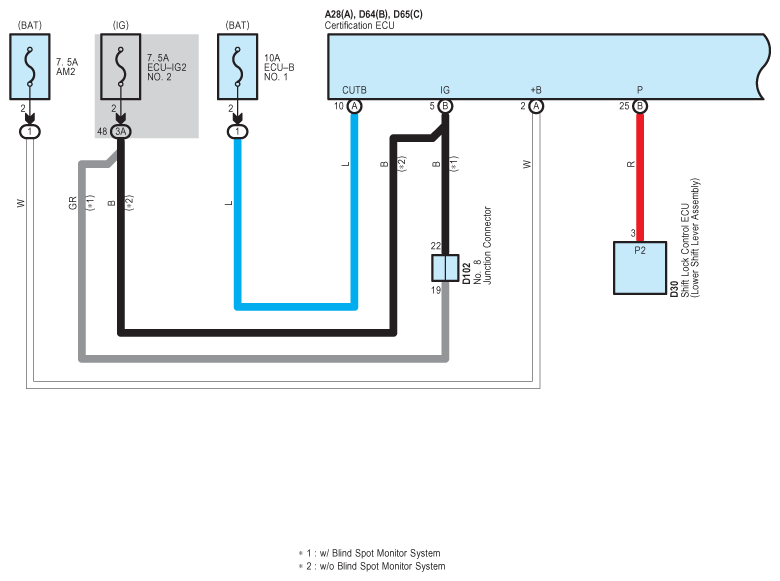

Fig 7: Immobiliser, Remote Engine Starter, Smart Key, Steering Lock, Wireless Charging System Wiring Diagram (7 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

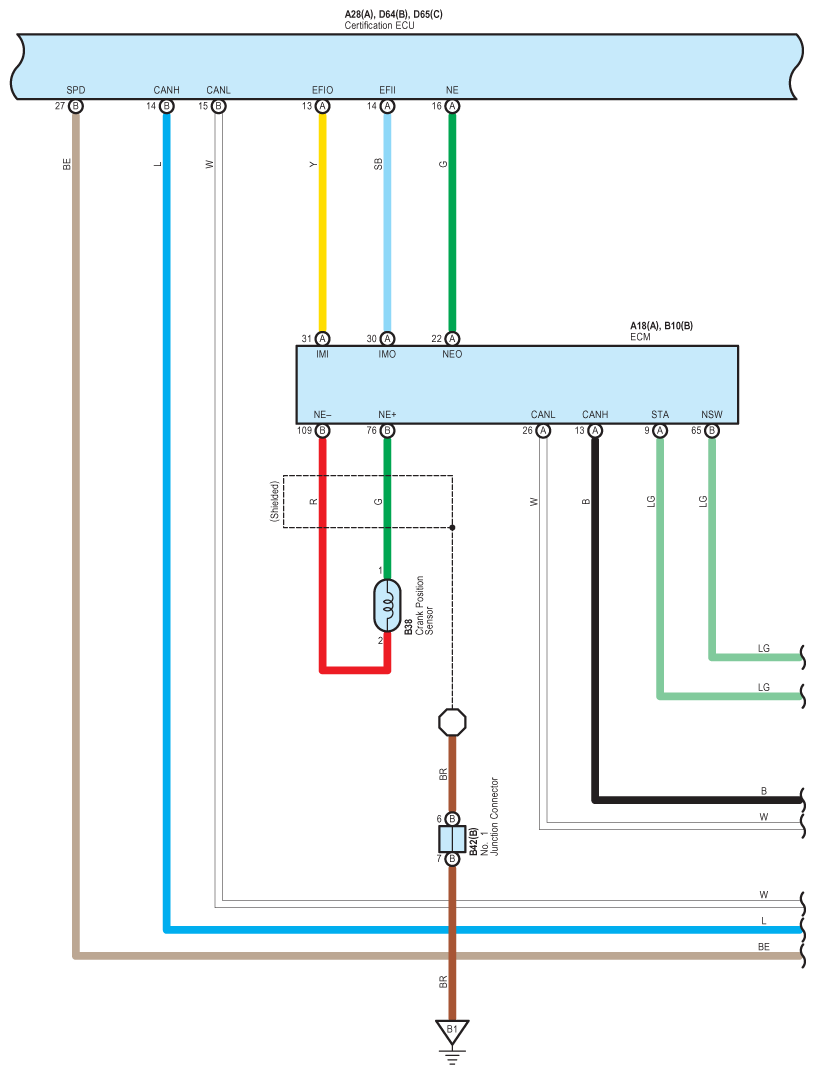

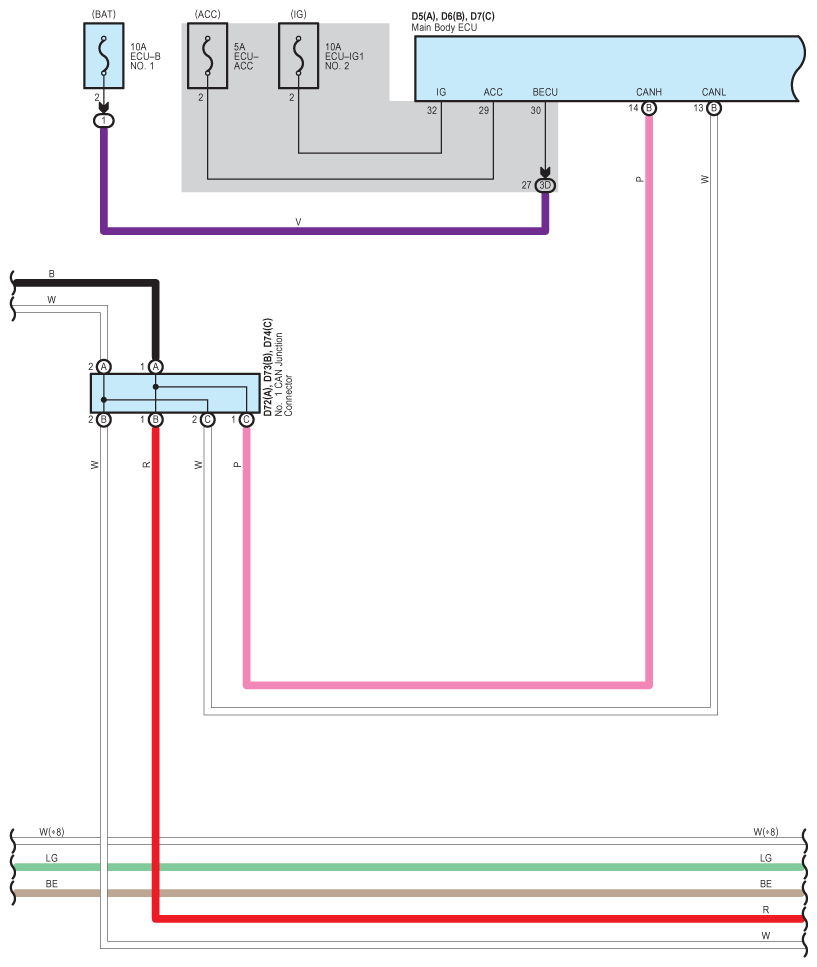

Fig 8: Immobiliser, Remote Engine Starter, Smart Key, Steering Lock, Wireless Charging System Wiring Diagram (8 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

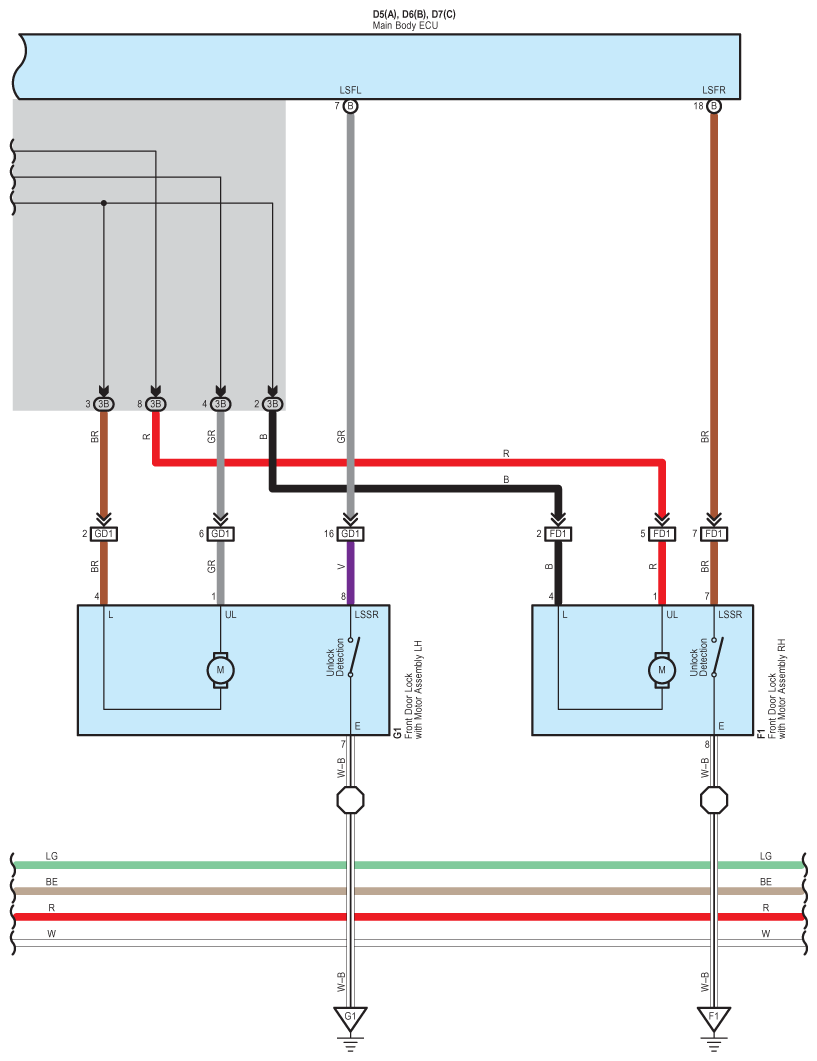

Fig 9: Immobiliser, Remote Engine Starter, Smart Key, Steering Lock, Wireless Charging System Wiring Diagram (9 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

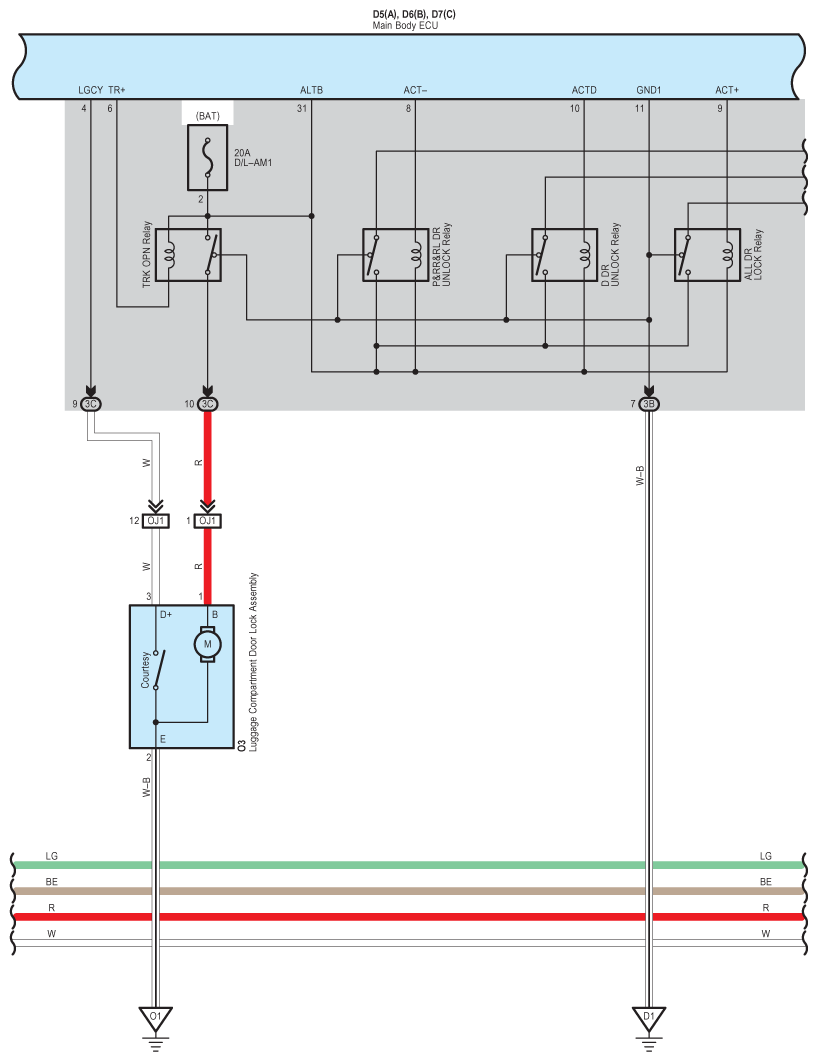

Fig 10: Immobiliser, Remote Engine Starter, Smart Key, Steering Lock, Wireless Charging System Wiring Diagram (10 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

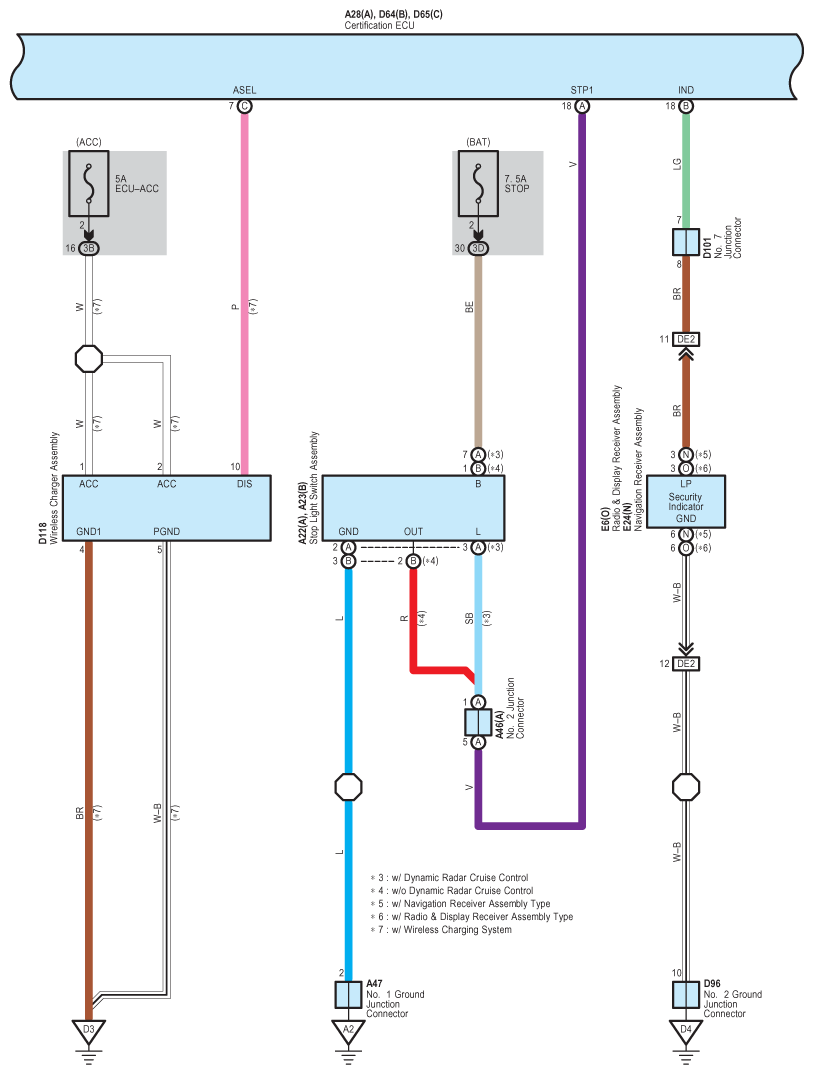

Fig 11: Immobiliser, Remote Engine Starter, Smart Key, Steering Lock, Wireless Charging System Wiring Diagram (11 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Immobiliser, Remote Engine Starter, Smart Key, Steering Lock, Wireless Charging System Wiring Diagram (12 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 13: Immobiliser, Remote Engine Starter, Smart Key, Steering Lock, Wireless Charging System Wiring Diagram (13 Of 19)

Fig 14: Immobiliser, Remote Engine Starter, Smart Key, Steering Lock, Wireless Charging System Wiring Diagram (14 Of 19)

Fig 15: Immobiliser, Remote Engine Starter, Smart Key, Steering Lock, Wireless Charging System Wiring Diagram (15 Of 19)

Fig 16: Immobiliser, Remote Engine Starter, Smart Key, Steering Lock, Wireless Charging System Wiring Diagram (16 Of 19)

Fig 17: Immobiliser, Remote Engine Starter, Smart Key, Steering Lock, Wireless Charging System Wiring Diagram (17 Of 19)

Fig 18: Immobiliser, Remote Engine Starter, Smart Key, Steering Lock, Wireless Charging System Wiring Diagram (18 Of 19)

Fig 19: Immobiliser, Remote Engine Starter, Smart Key, Steering Lock, Wireless Charging System Wiring Diagram (19 Of 19)
