Multiplex Communication System (CAN): Notes

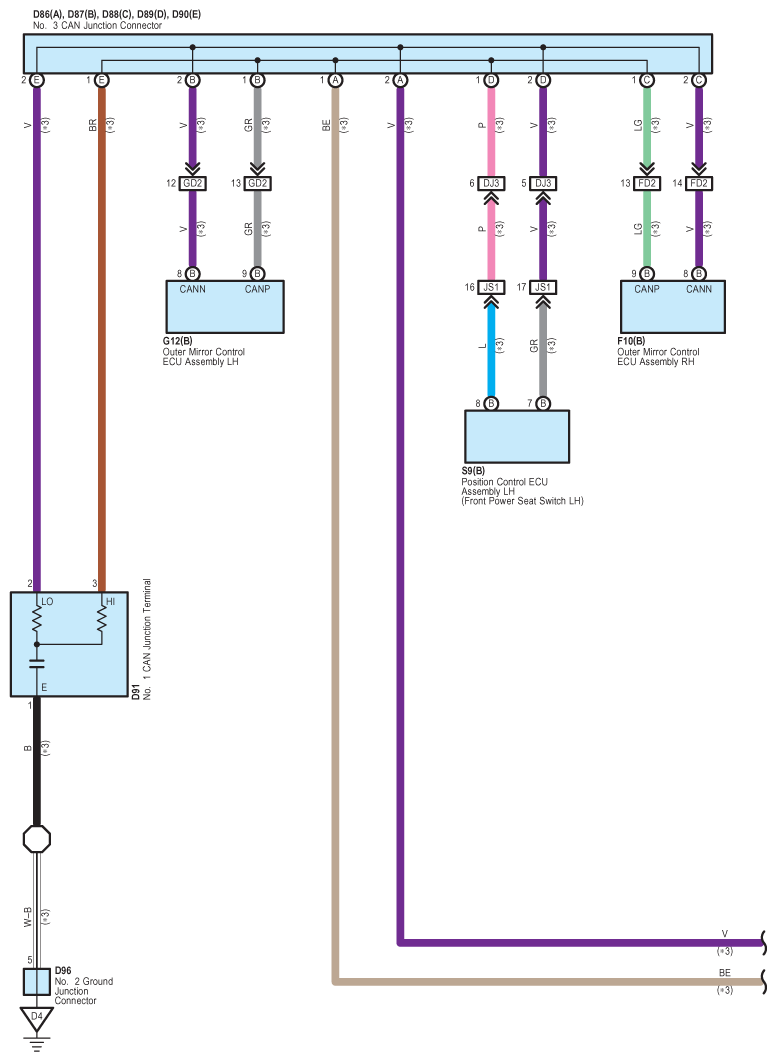

Fig 1: Multiplex Communication (CAN) System Wiring Diagram (1 Of 5)
G09095380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

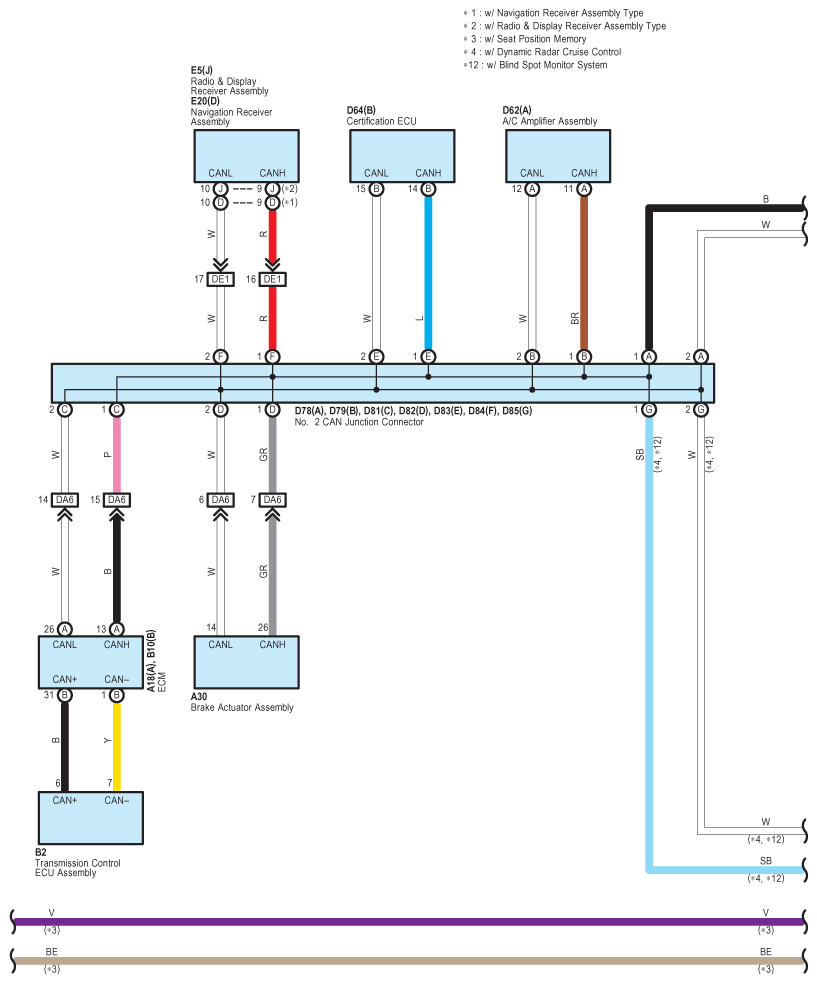

Fig 2: Multiplex Communication (CAN) System Wiring Diagram (2 Of 5)
G09095381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

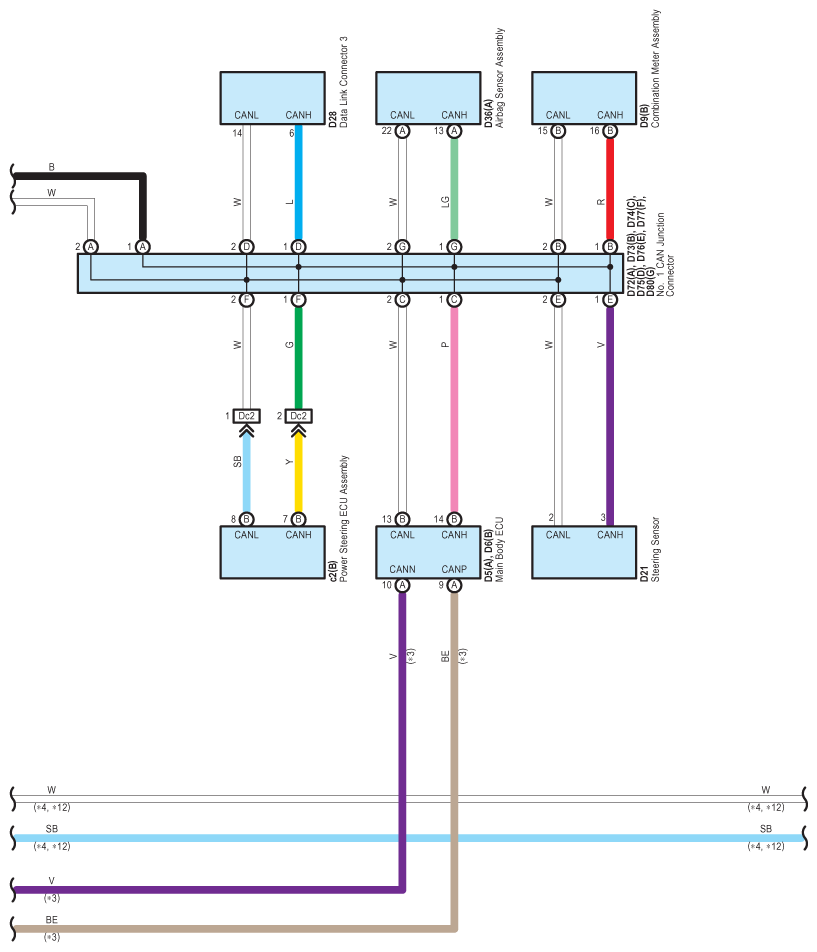

Fig 3: Multiplex Communication (CAN) System Wiring Diagram (3 Of 5)
G09095382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

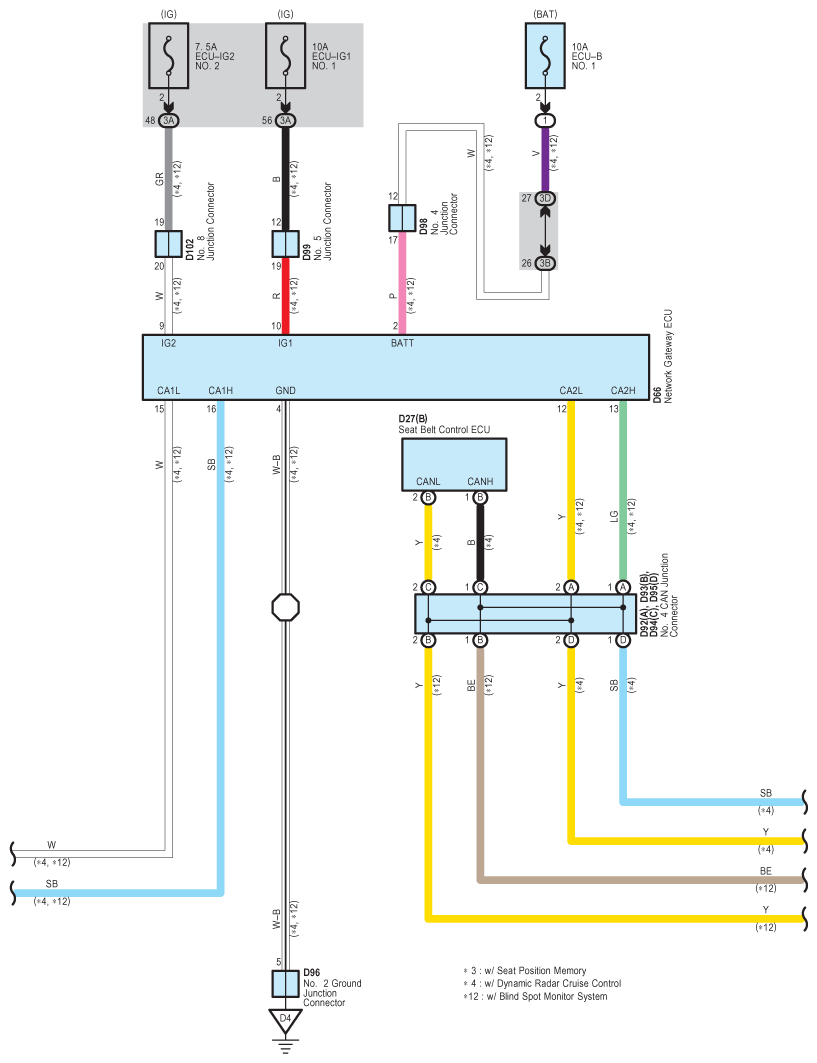

Fig 4: Multiplex Communication (CAN) System Wiring Diagram (4 Of 5)
G09095383Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

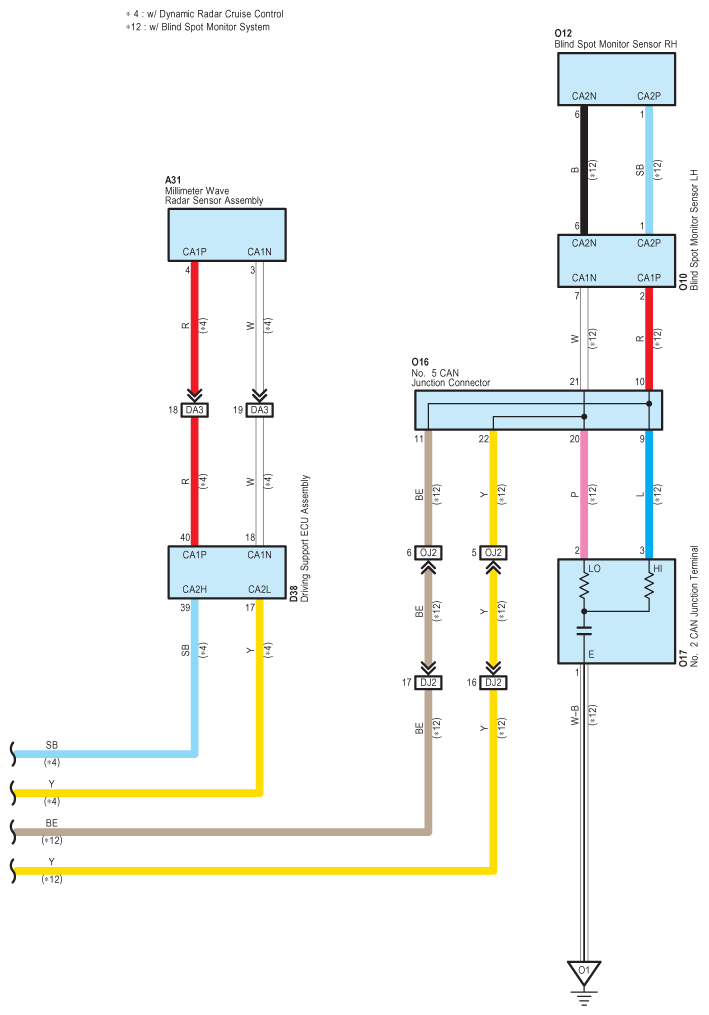

Fig 5: Multiplex Communication (CAN) System Wiring Diagram (5 Of 5)
G09095384Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
