Steering Column Assembly: Inspection: Inspection

NOTE:

When using a vise, do not overtighten it.

INSPECT PRELOAD
1. Secure the steering column assembly in a vise.
2. Using SST, turn the main shaft and measure the preload.

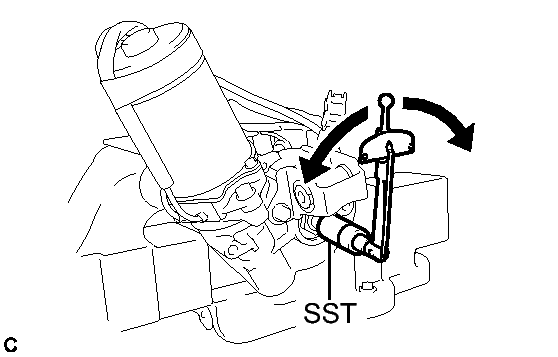

  Fig 1: Turning Main Shaft Using SST 09616-00011
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - SST: 09616-00011
  Preload

  Torque: 0.8 to 1.2 N*m (8 to 12 kgf*cm, 7 to 10 in.*lbf)

  If the preload is not as specified, replace the steering column assembly.
INSPECT STEERING LOCK OPERATION (w/o Smart Key System)
1. Check that the steering lock mechanism is activated when the key is removed.

  Fig 2: Checking Steering Lock Mechanism (Key Removed)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check that the steering lock mechanism is deactivated when the key is inserted and turned to the ACC position.

  Fig 3: Checking Steering Lock Mechanism
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  If there is any abnormality, replace the ignition switch lock cylinder assembly or steering column upper with switch bracket assembly.
