Engine Control (2AZ-FE) (Except TMC Made): Notes

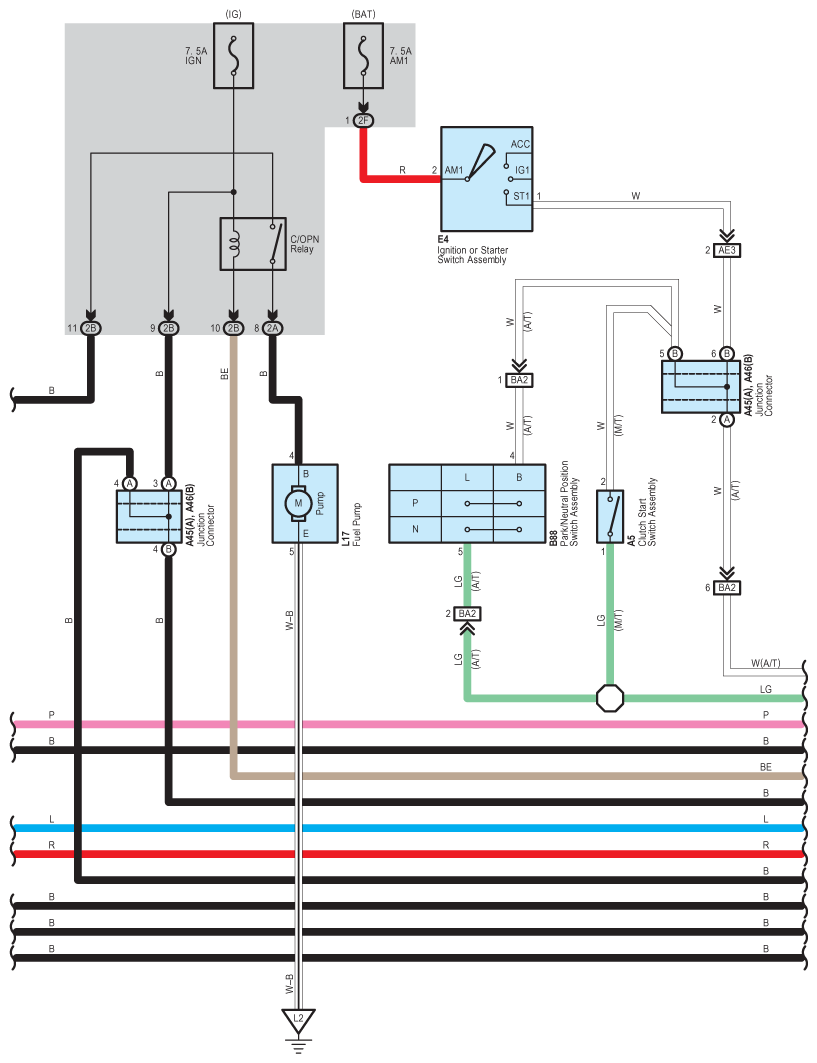

Fig 1: Engine Control (2AZ-FE, Except TMC Made; 1 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

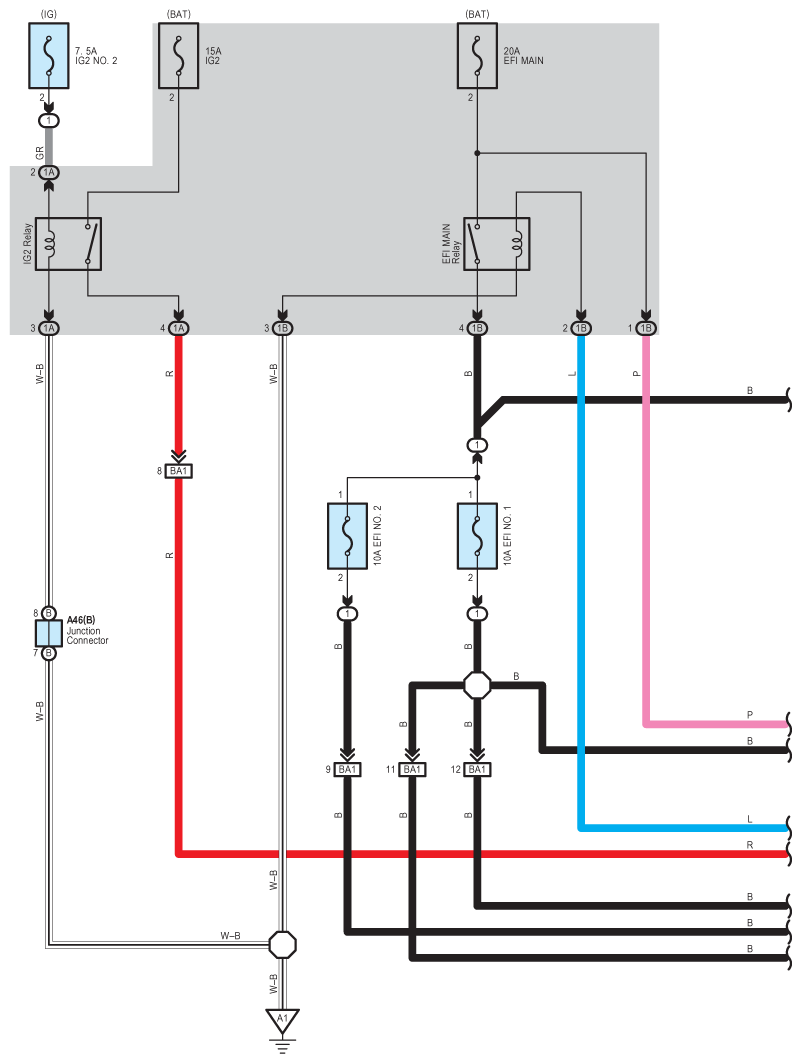

Fig 2: Engine Control (2AZ-FE, Except TMC Made; 2 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

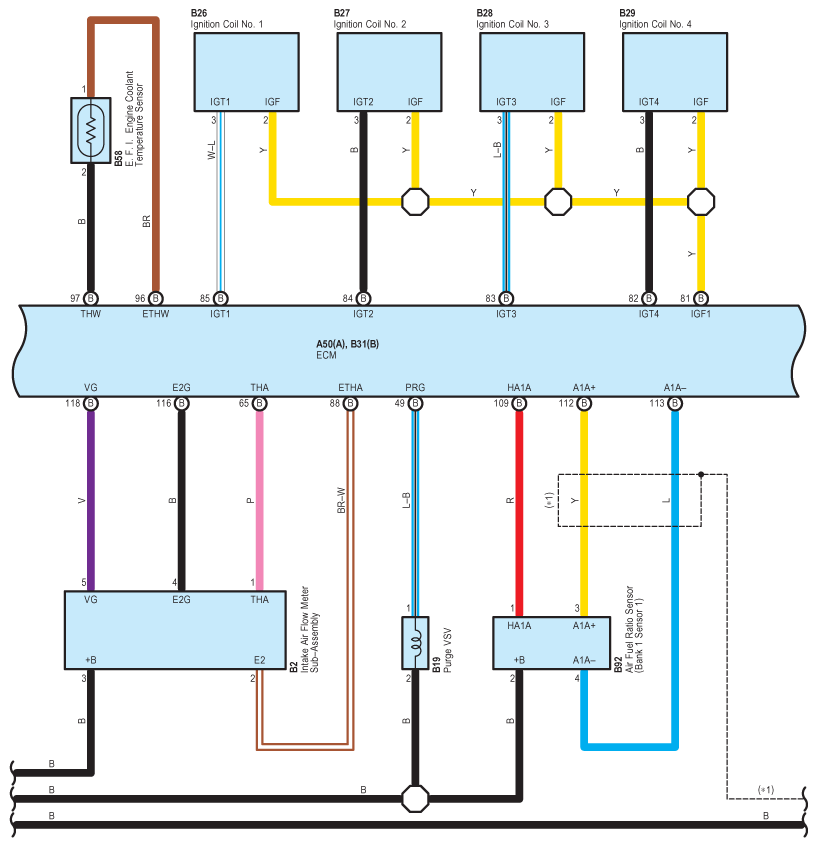

Fig 3: Engine Control (2AZ-FE, Except TMC Made; 3 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

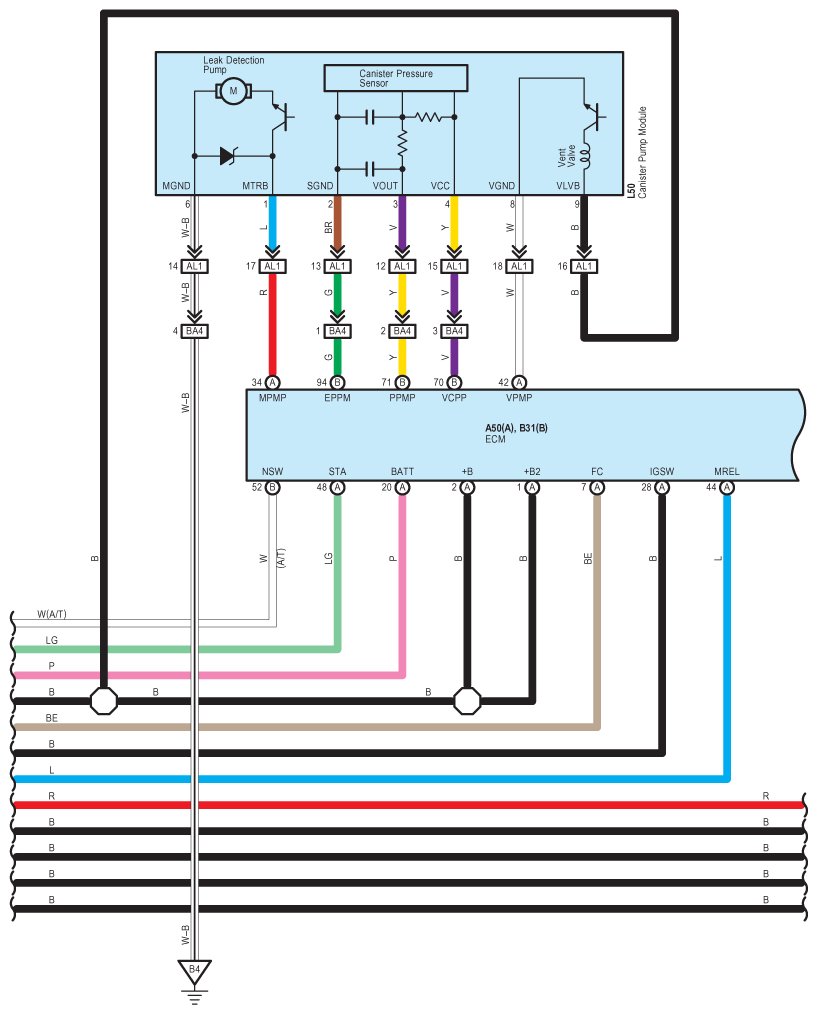

Fig 4: Engine Control (2AZ-FE, Except TMC Made; 4 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

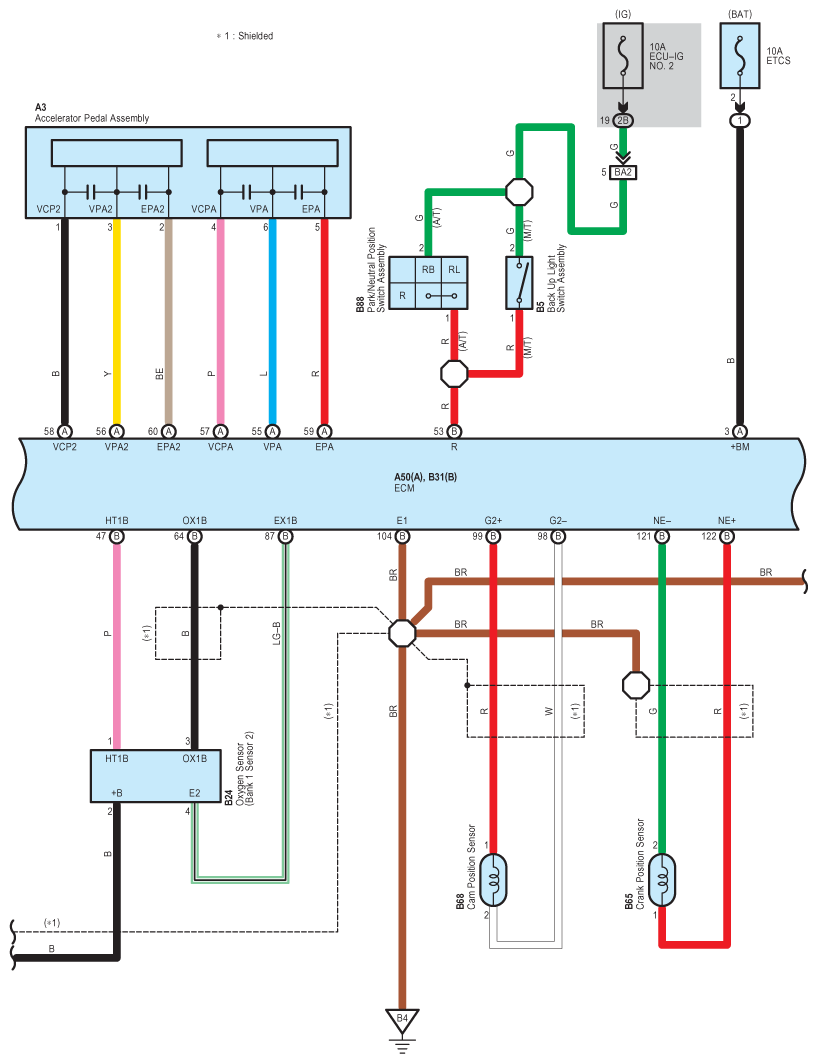

Fig 5: Engine Control (2AZ-FE, Except TMC Made; 5 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

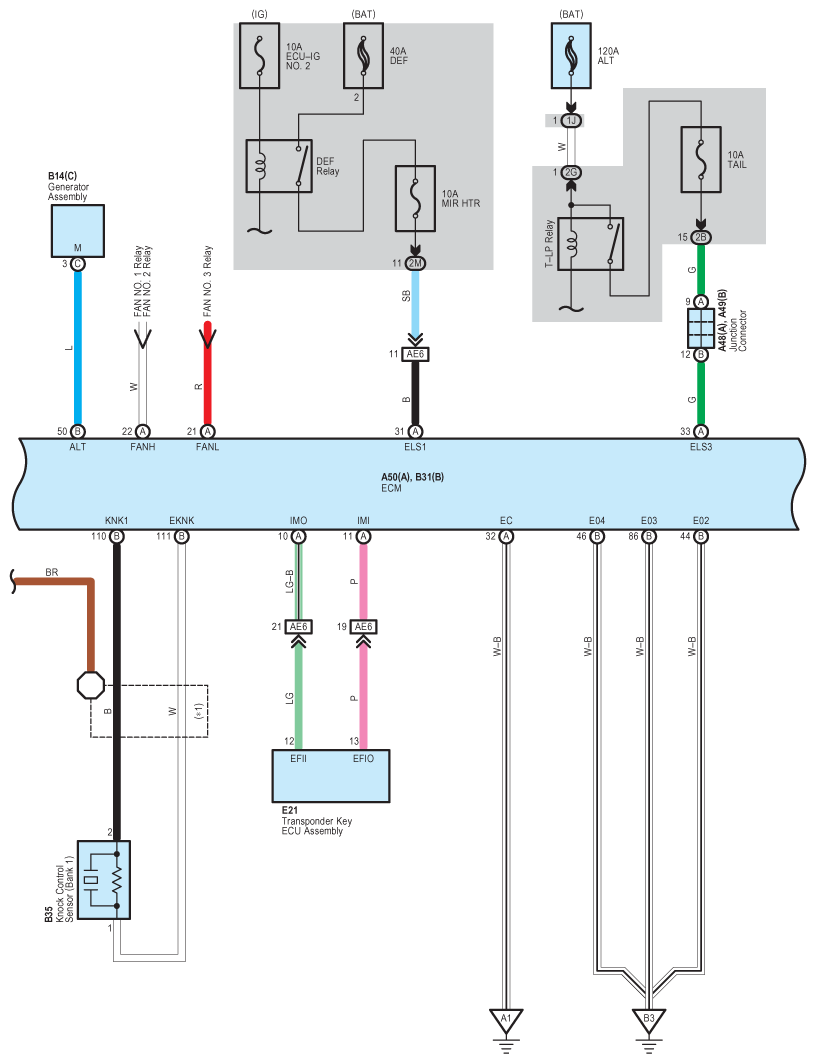

Fig 6: Engine Control (2AZ-FE, Except TMC Made; 6 Of 9)

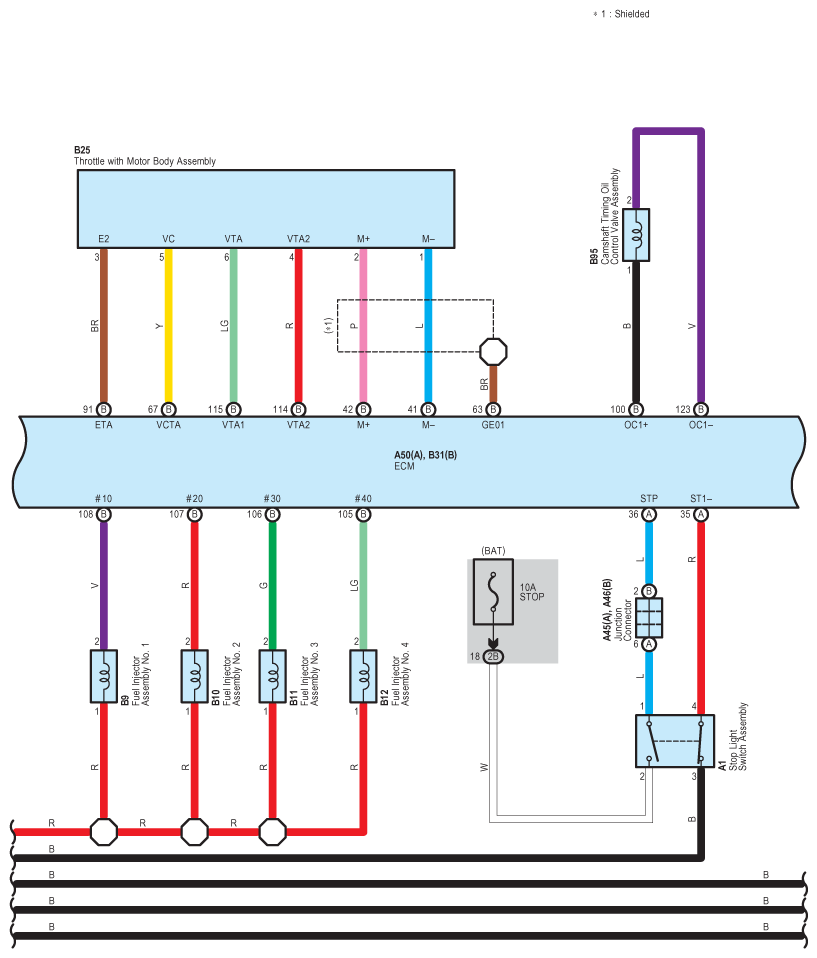

Fig 7: Engine Control (2AZ-FE, Except TMC Made; 7 Of 9)

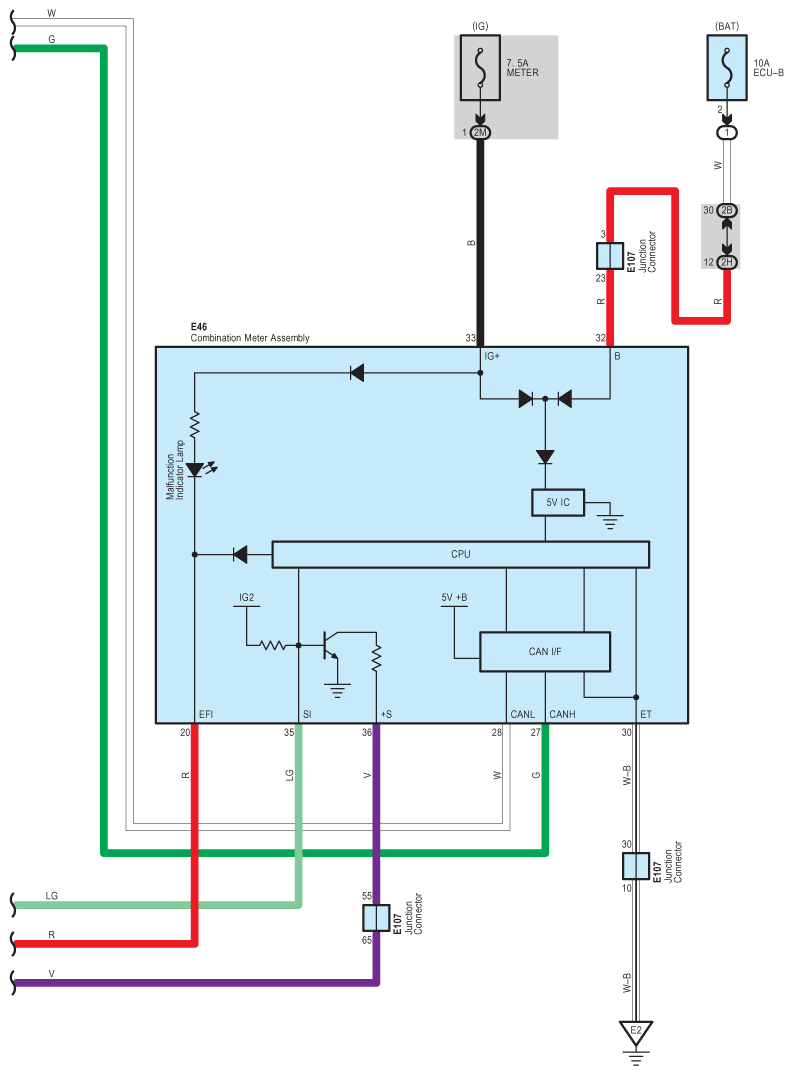

Fig 8: Engine Control (2AZ-FE, Except TMC Made; 8 Of 9)

Fig 9: Engine Control (2AZ-FE, Except TMC Made; 9 Of 9)
