Horn (Except TMC Made): Notes

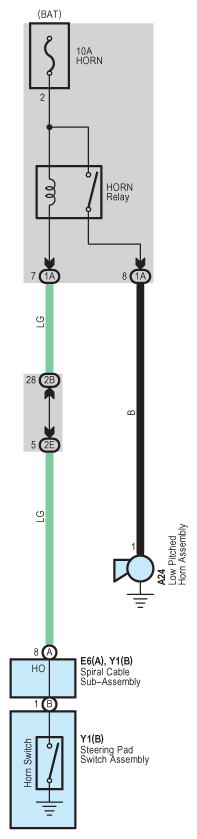

Fig 1: Horn (Except TMC Made)

G09106696

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
