Interior Light (Except TMC Made): Notes

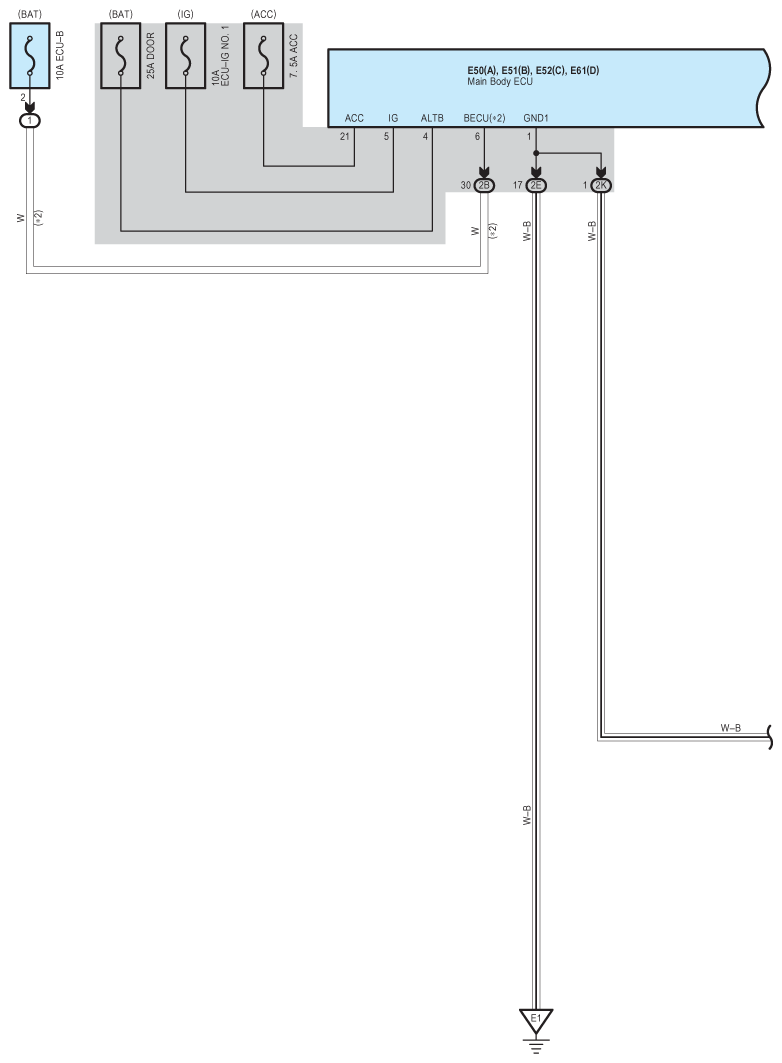

Fig 1: Interior Light System Wiring Diagram (Except TMC Made; 1 Of 5)
G09106607Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

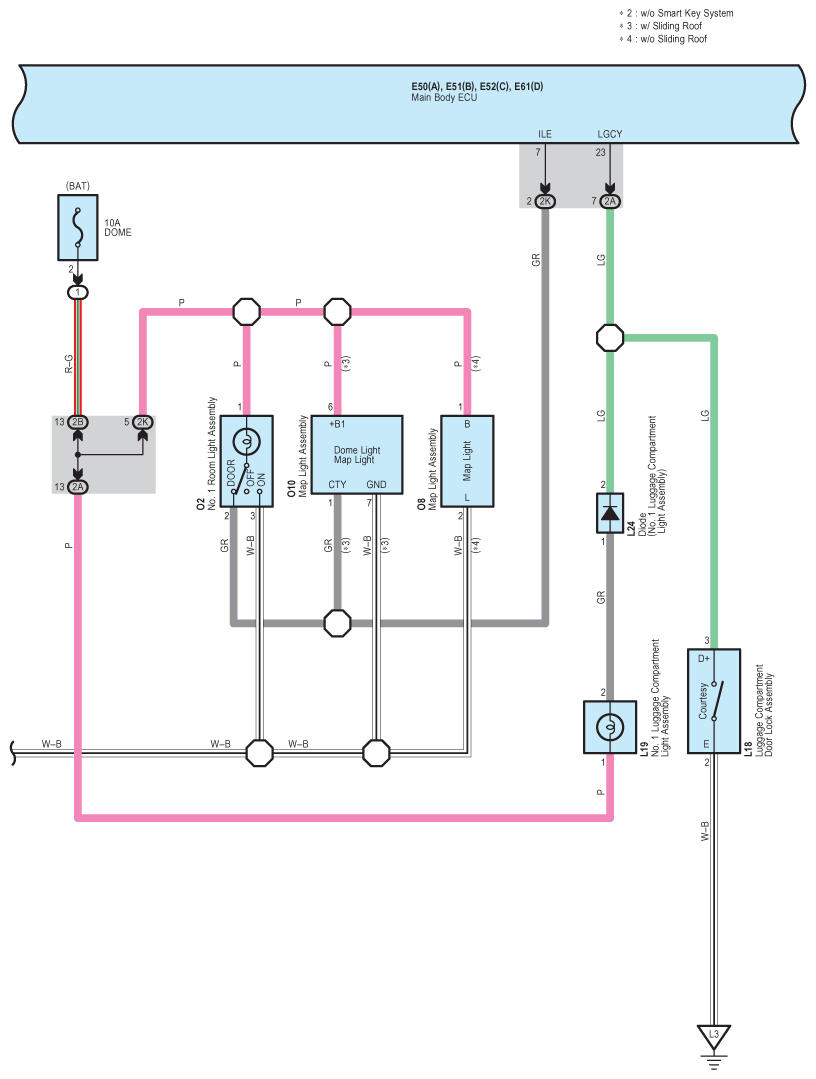

Fig 2: Interior Light System Wiring Diagram (Except TMC Made; 2 Of 5)
G09106608Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

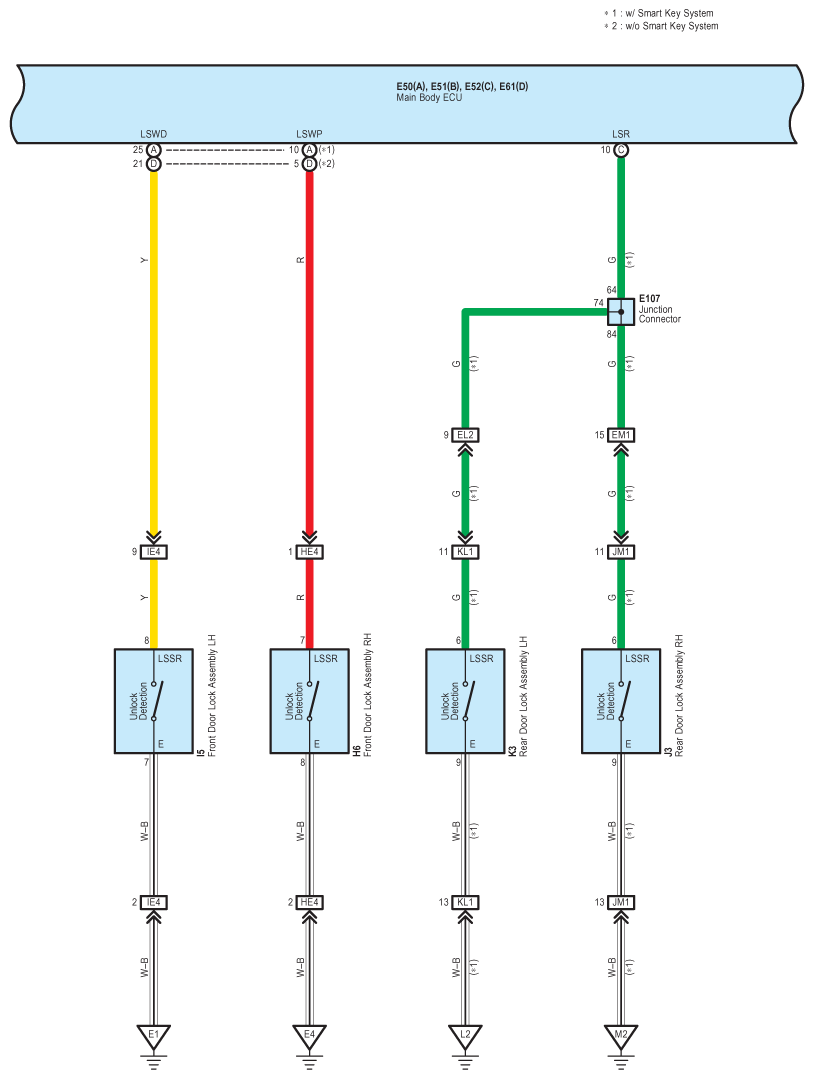

Fig 3: Interior Light System Wiring Diagram (Except TMC Made; 3 Of 5)
G09106609Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

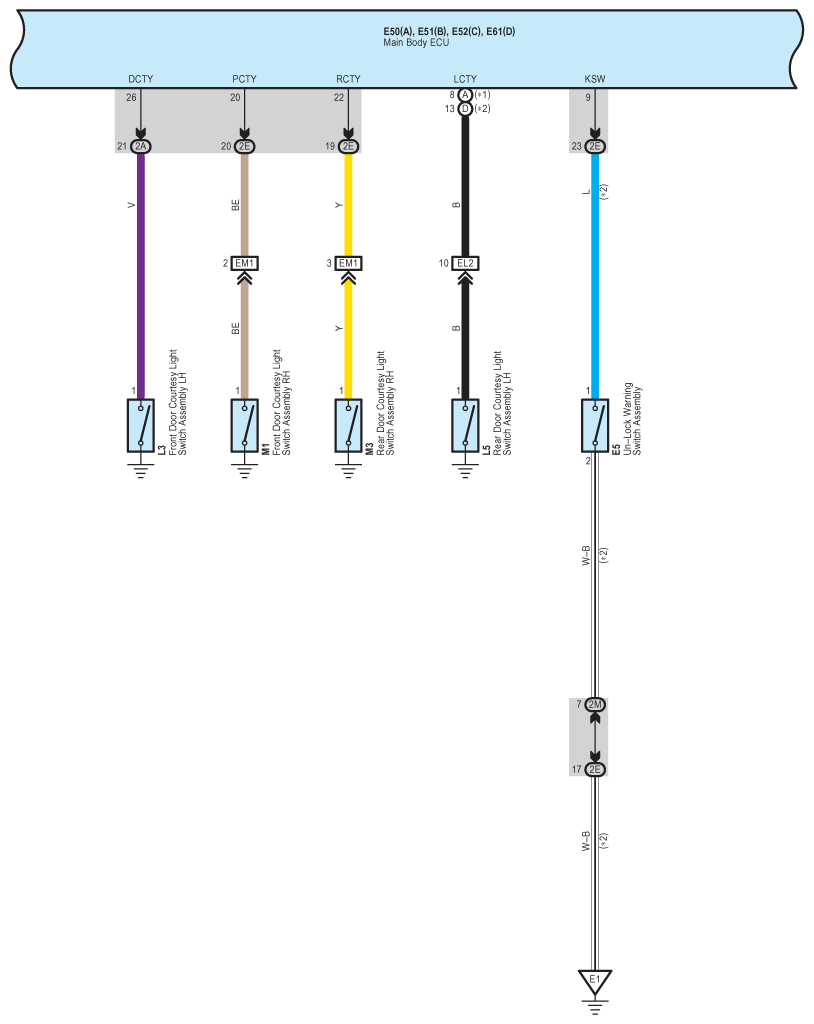

Fig 4: Interior Light System Wiring Diagram (Except TMC Made; 4 Of 5)
G09106610Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

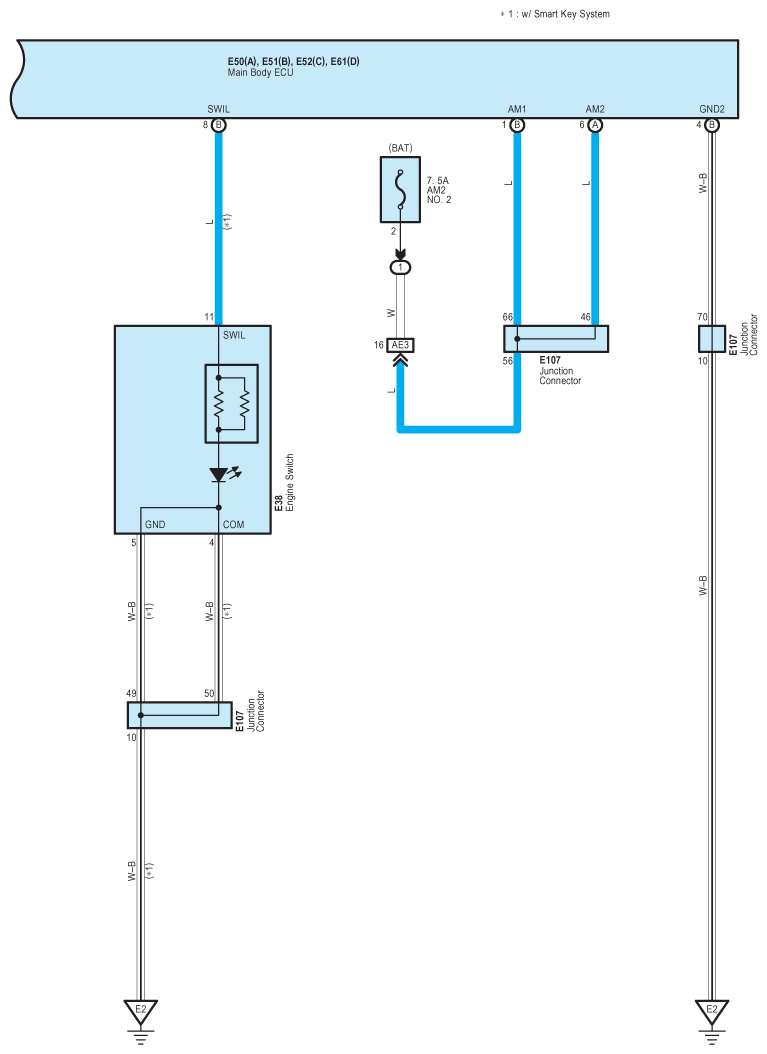

Fig 5: Interior Light System Wiring Diagram (Except TMC Made; 1 Of 5)
G09106611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
