Key Reminder (TMC Made): Notes

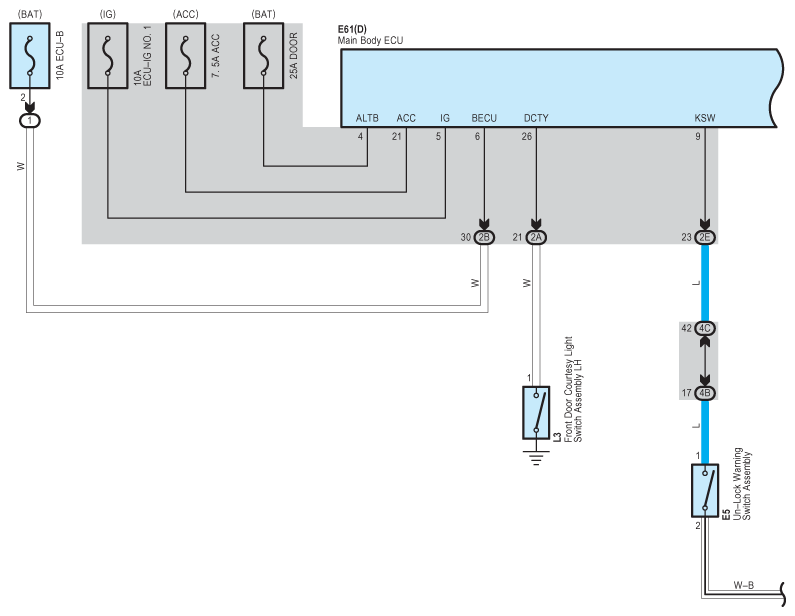

Fig 1: Key Reminder System Wiring Diagram (TMC Made; 1 Of 2)
G09106466Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

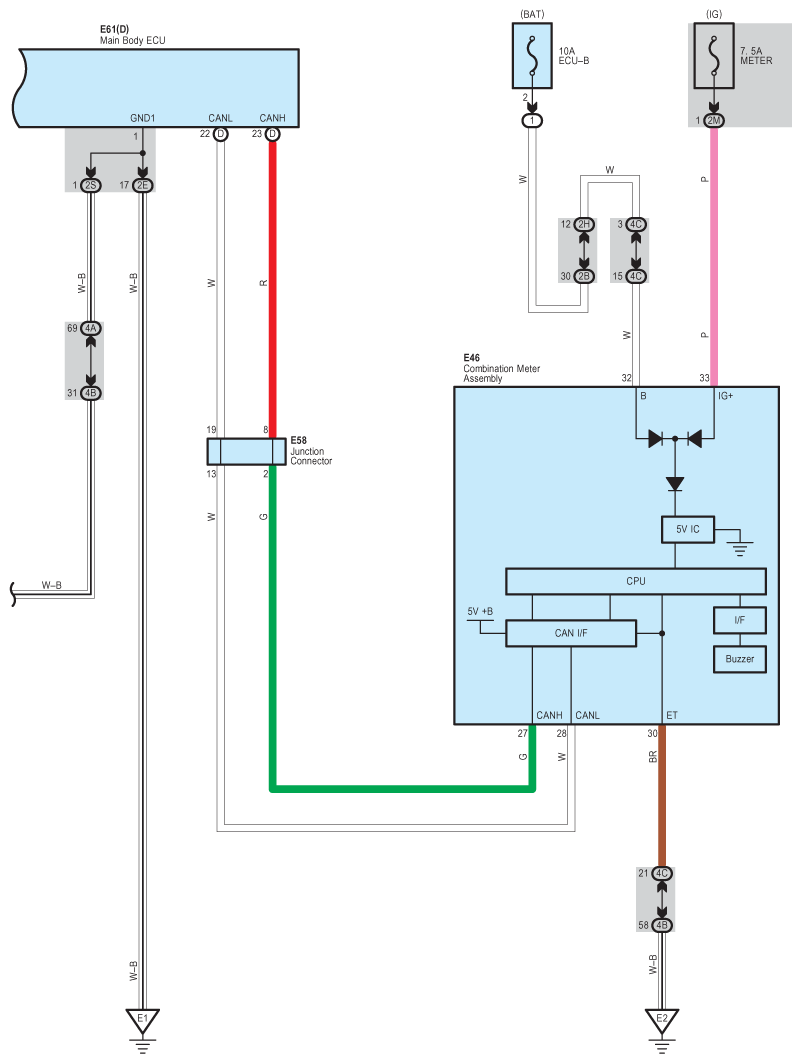

Fig 2: Key Reminder System Wiring Diagram (TMC Made; 2 Of 2)
G09106467Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
