Steering
>>
Power Steering
>>
Power Steering System (Diagnostics - Introduction)
>>
Power Steering System
>>
System Diagram
>>
System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram

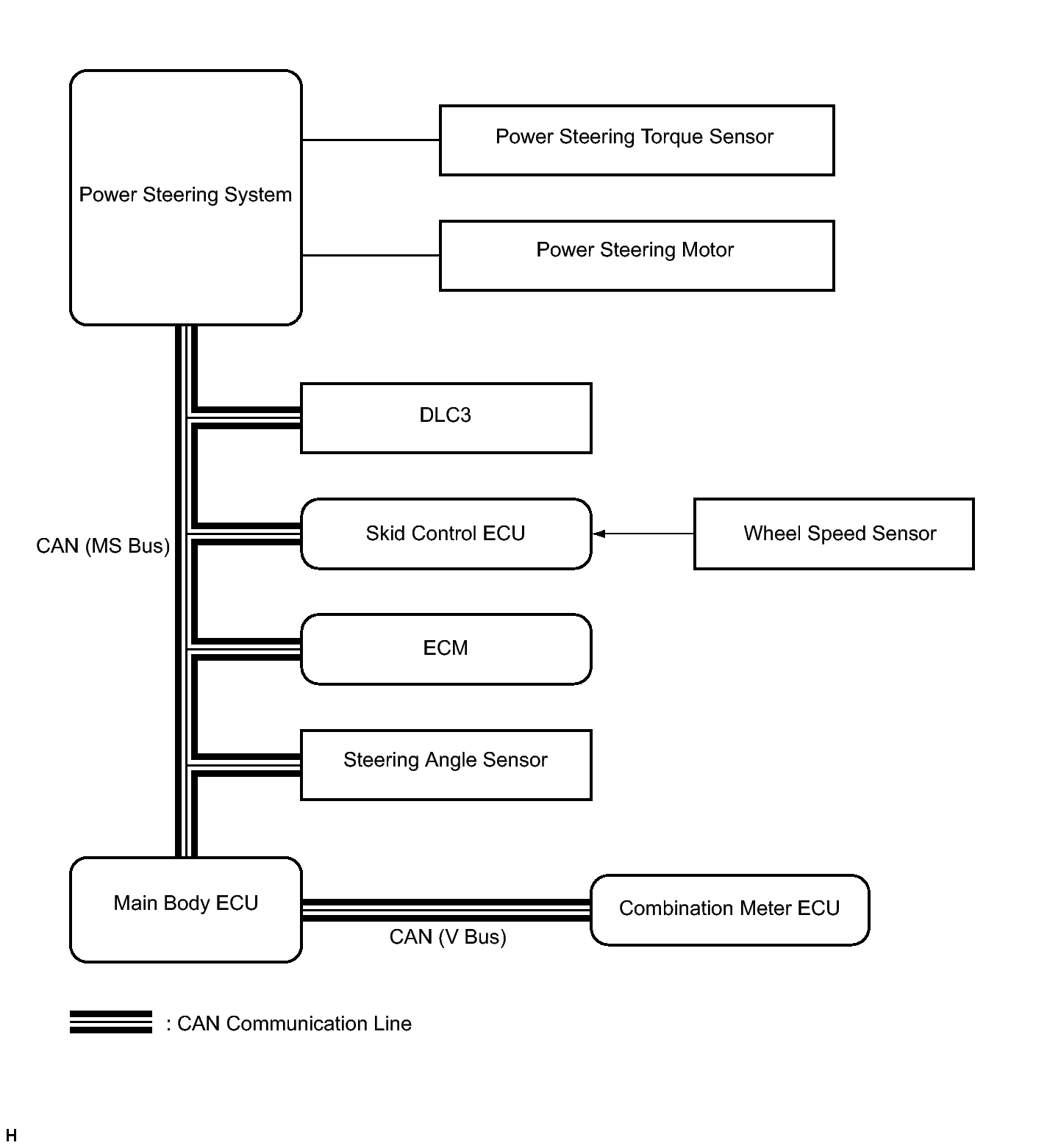

Fig 1: Identifying Power Steering System Diagram
