Skid Control ECU Communication Stop Mode: Wiring Diagram

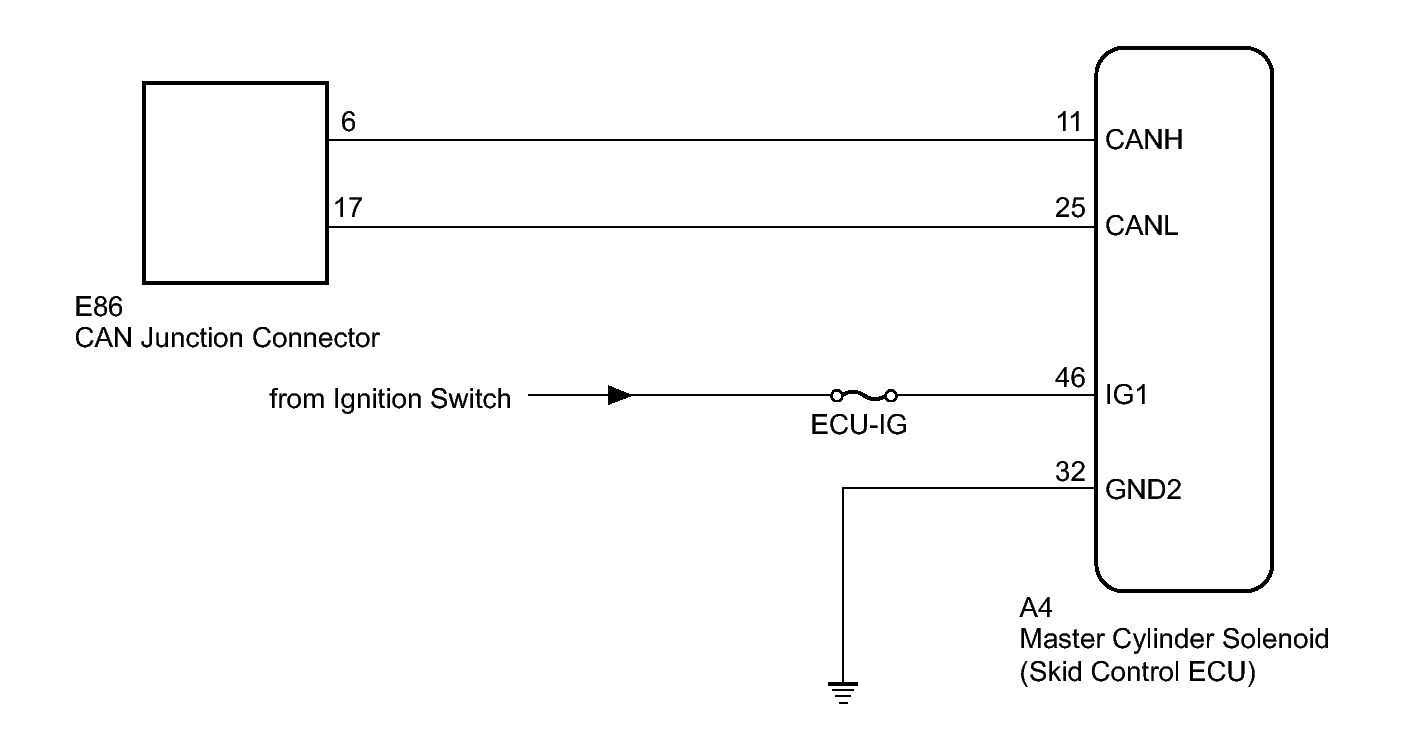

Fig 1: Master Cylinder Solenoid (Skid Control ECU) - Wiring Diagram
GTY374149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
