Window Defogger Switch: Installation: Installation

INSTALL INTEGRATION CONTROL AND PANEL ASSEMBLY

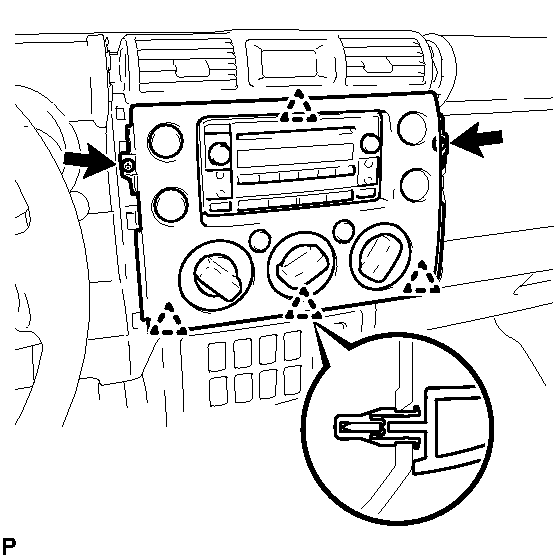

Fig 1: Identifying Integration Control Assembly Screws And Clips
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Engage the 4 clips and install the integration control and panel.
2. Install the 2 screws.
INSTALL INSTRUMENT PANEL GARNISH LH . Refer to INSTALLATION - Step 46
INSTALL INSTRUMENT PANEL GARNISH RH . Refer to INSTALLATION - Step 47
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)
