Fuel Pump Control Circuit: Wiring Diagram

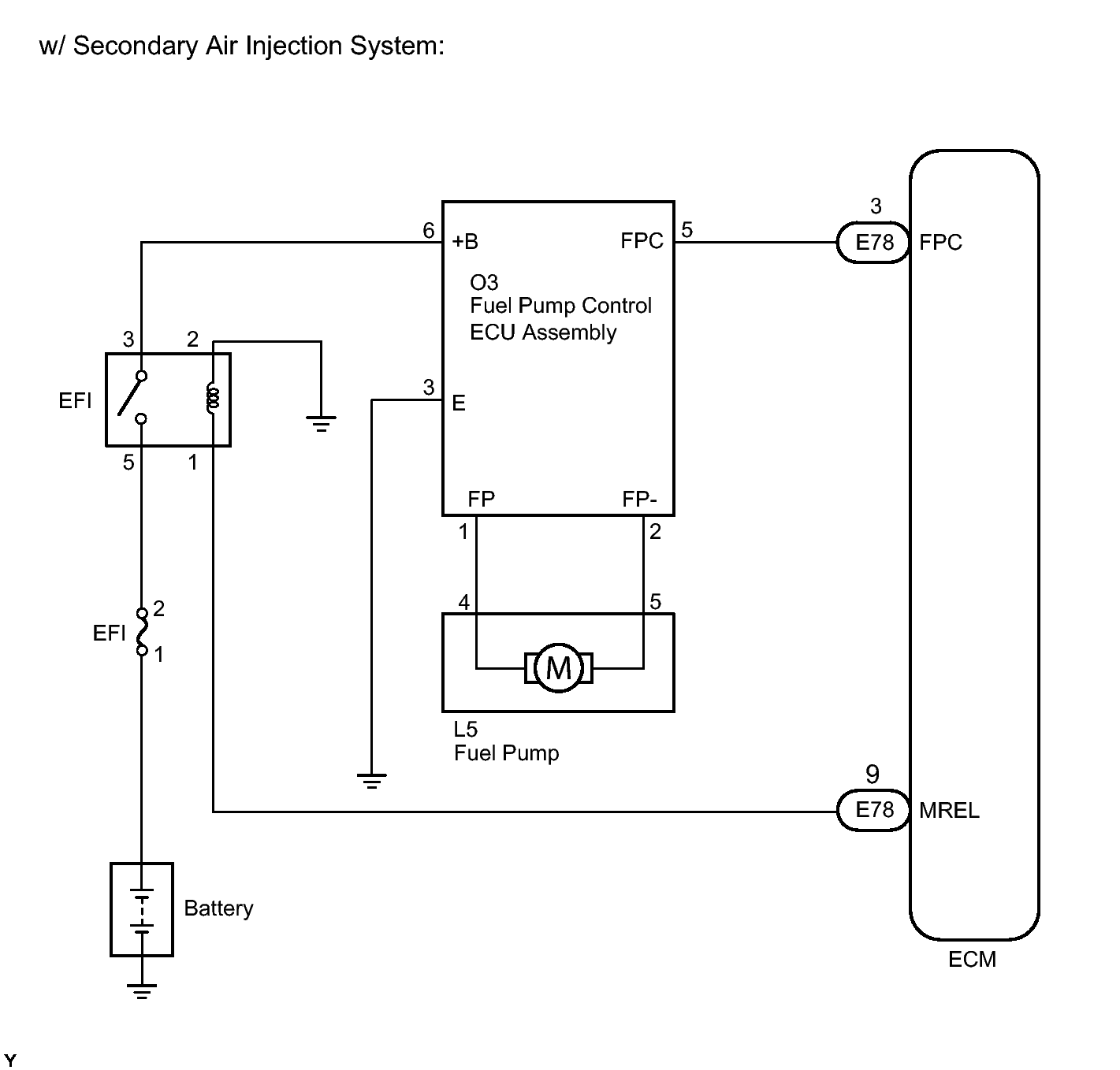

Fig 1: Fuel Pump Control Circuit (With Secondary Air Injection System) - Wiring Diagram
GTY372236Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

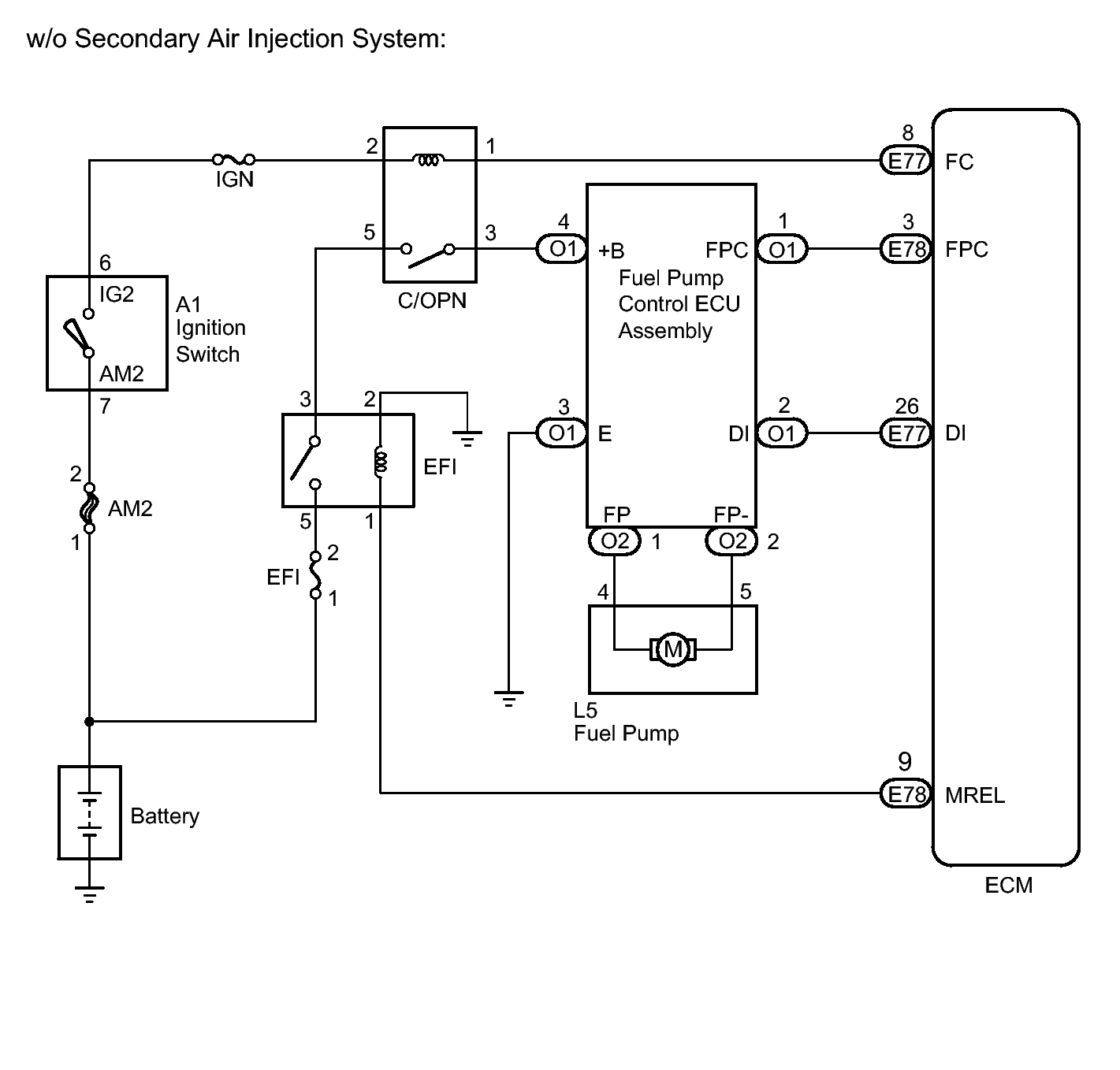

Fig 2: Fuel Pump Control Circuit (Without Secondary Air Injection System) - Wiring Diagram
GTY372600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
