VC Output Circuit: Wiring Diagram

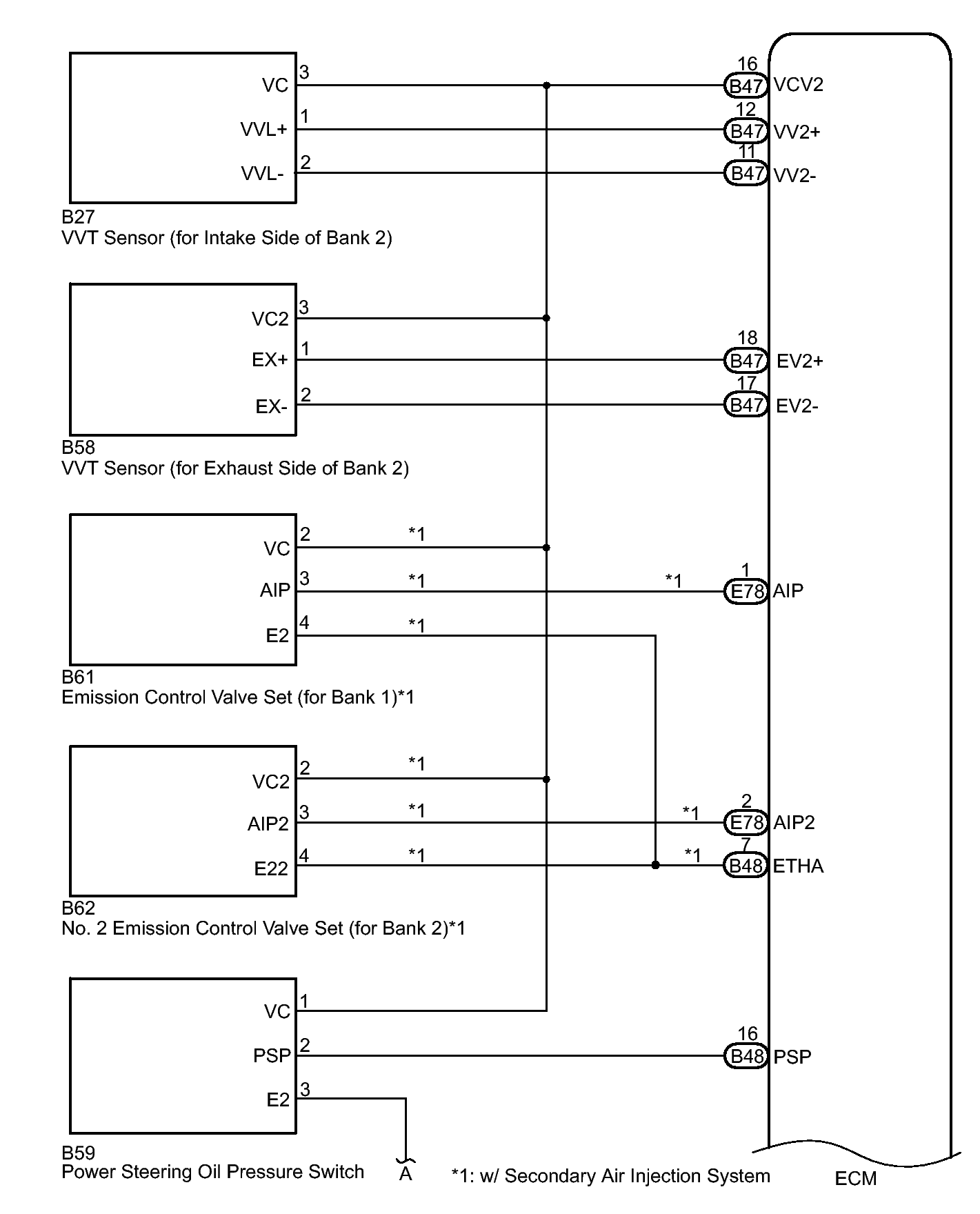

Fig 1: ECM VC Output Circuit - Wiring Diagram (1 Of 2)
GTY372720Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

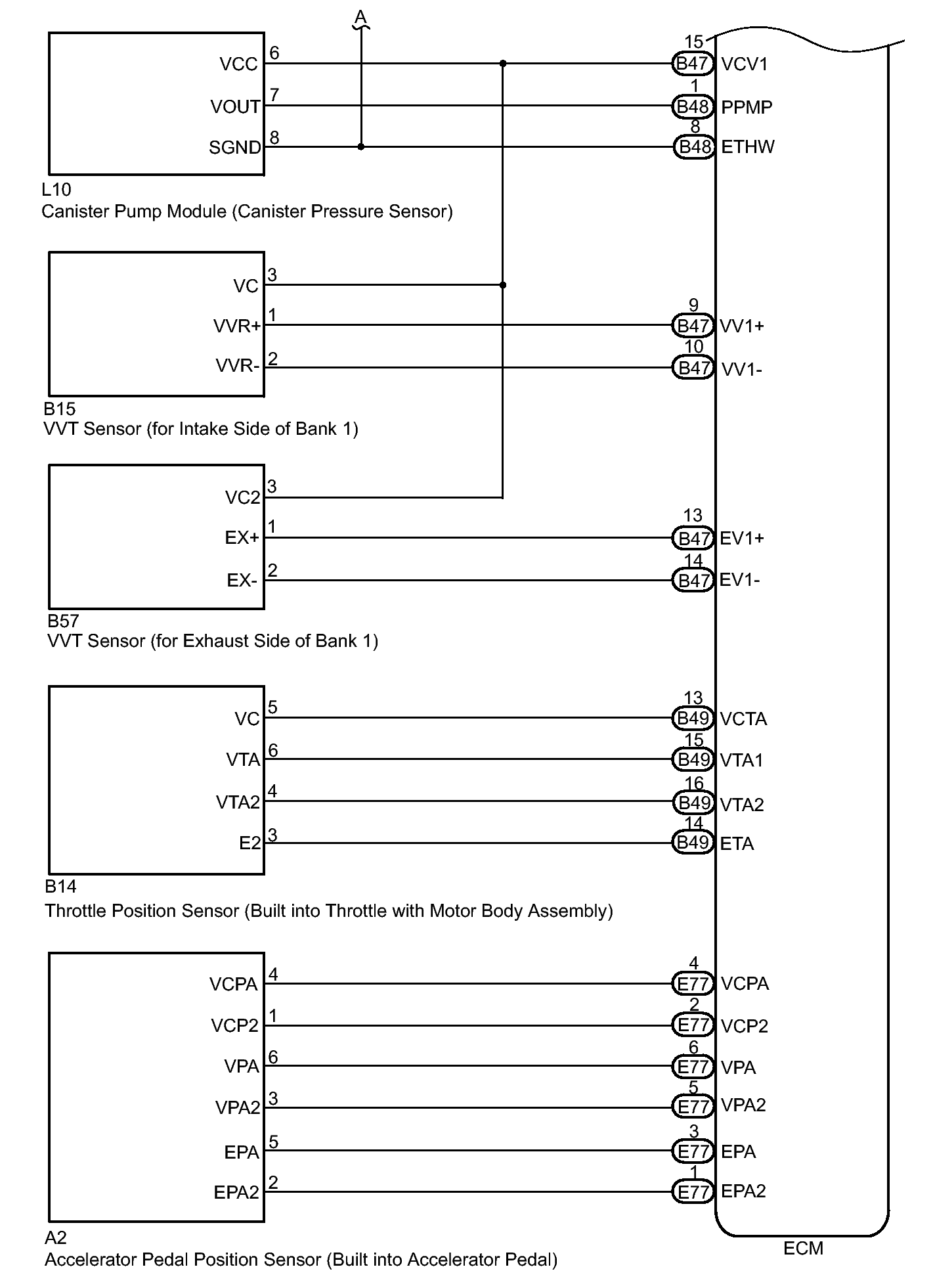

Fig 2: ECM VC Output Circuit - Wiring Diagram (2 Of 2)
GTY363201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
