Rear Window Defogger: Notes

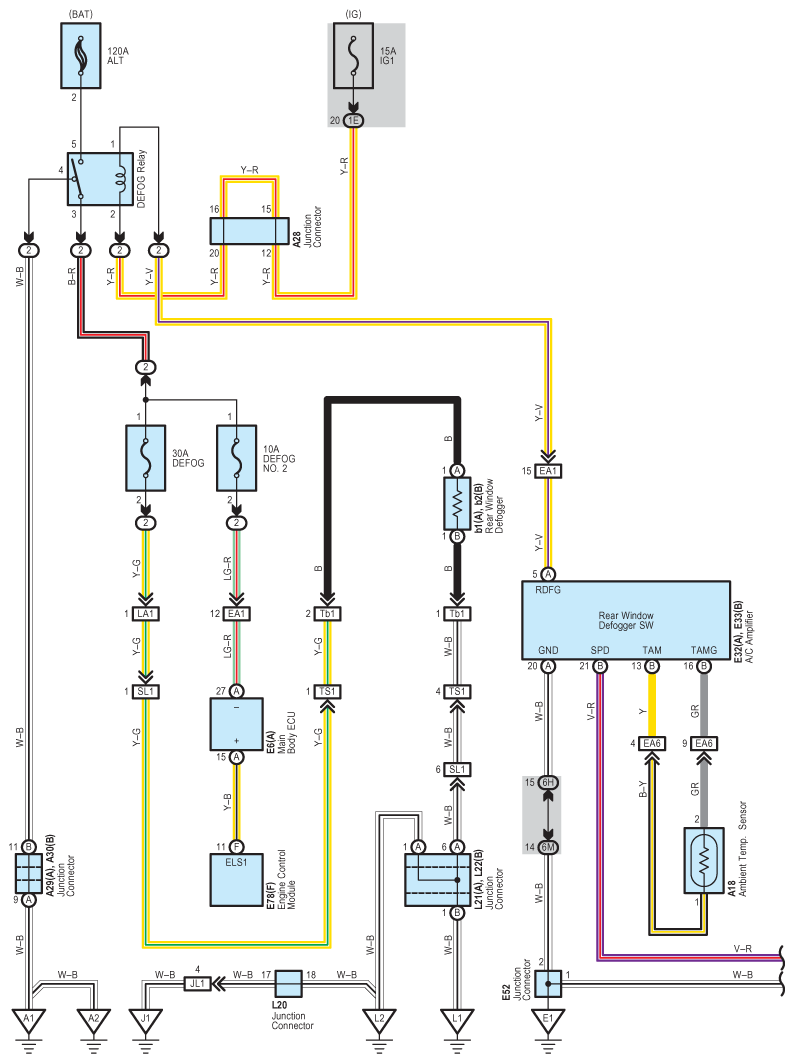

Fig 1: Rear Window Defogger Wiring Diagram (1 Of 2)
G09097092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Rear Window Defogger Wiring Diagram (2 Of 2)
G09097093Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
