Air Fuel Ratio Sensor: Removal: Removal

Refer to REMOVAL

Refer to REMOVAL

1. Using SST, remove the air fuel ratio sensor from the exhaust manifold sub-assembly RH.

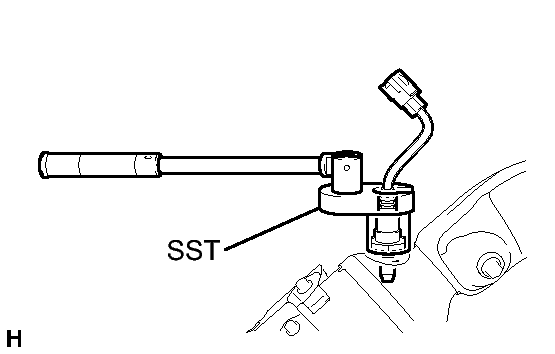

   Fig 1: Removing Air Fuel Ratio Sensor (For Bank 1 Sensor 1)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   • SST: 09224-00010
   NOTE:

   Do not use an air fuel ratio sensor that has been dropped or subjected to a strong impact.

1. Using SST, remove the air fuel ratio sensor from the exhaust manifold sub-assembly LH.

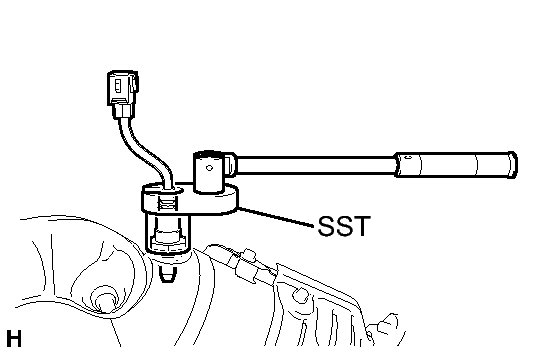

   Fig 2: Removing Air Fuel Ratio Sensor (For Bank 2 Sensor 1)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   • SST: 09224-00010
   NOTE:

   Do not use an air fuel ratio sensor that has been dropped or subjected to a strong impact.
