DTC P2118: Throttle Actuator Control Motor Current Range / Performance: Wiring Diagram

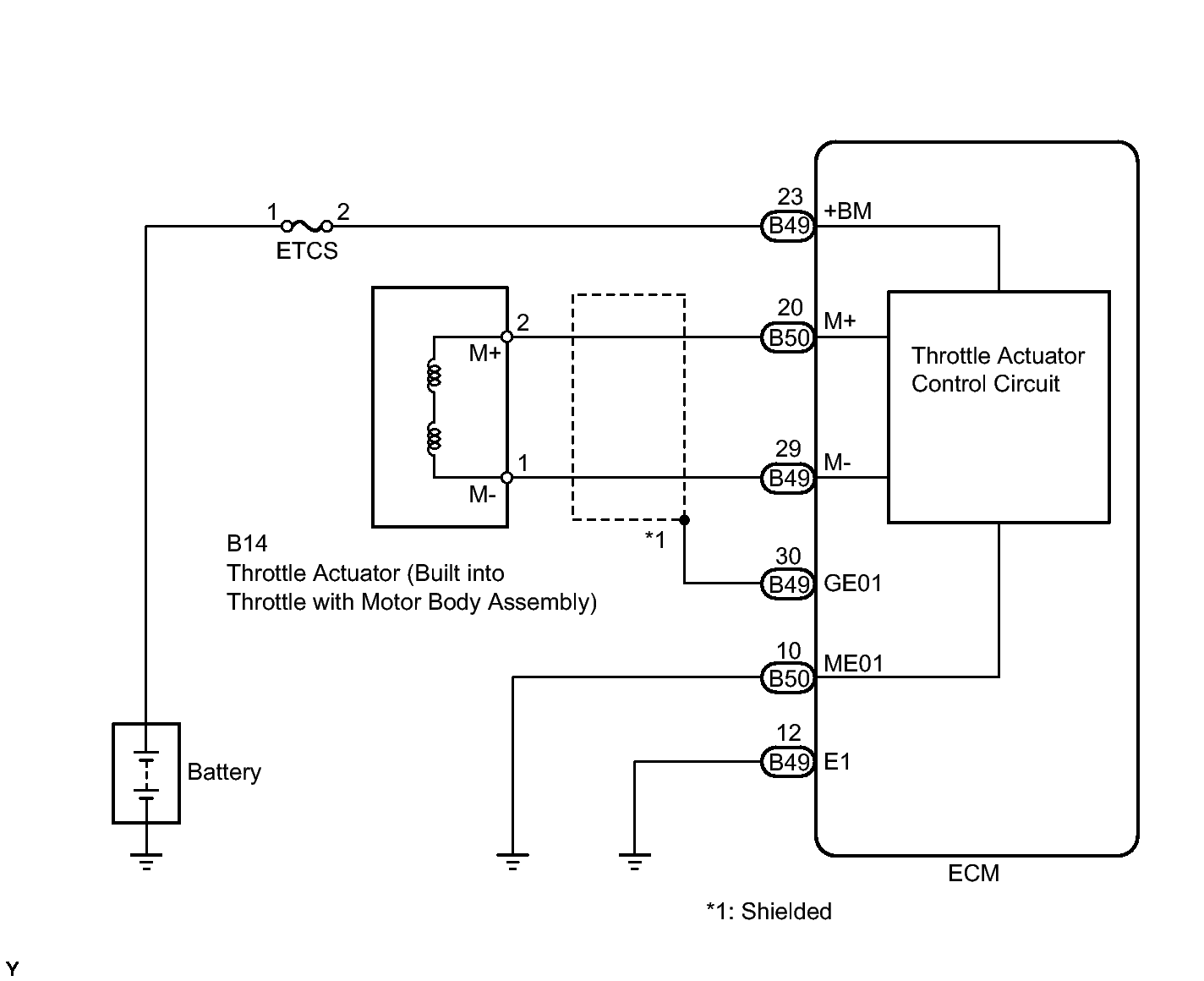

Fig 1: Throttle Actuator Control Circuit - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
