Active Control Engine Mount: Installation: Installation

  1. INSTALL FRONT ENGINE MOUNTING INSULATOR ASSEMBLY
    1. Install the front engine mounting insulator assembly with the 3 nuts and cap.

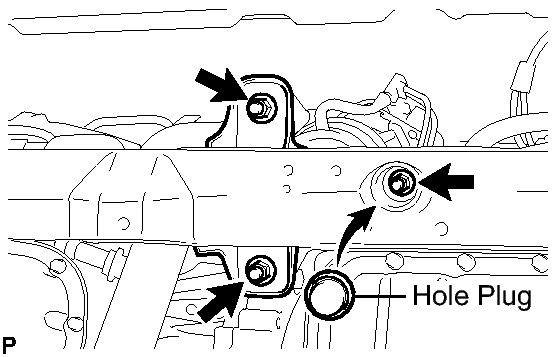

      Fig 1: Identifying Front Engine Mounting Insulator Assembly Cap & Nuts
      GTY190220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 52 N*m (530 kgf*cm, 38 ft.*lbf)

    2. Connect the duty vacuum switching valve connector and clamp.

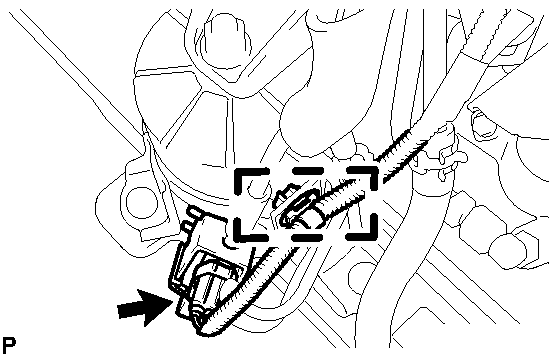

      Fig 2: Identifying Duty Vacuum Switching Valve Connector & Clamp
      GTY193973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the 2 clamps.

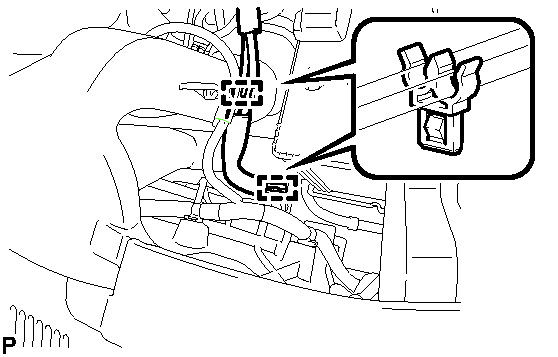

      Fig 3: Identifying Clamps
      GTY180421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Connect the vacuum hose sub-assembly to the air cleaner cap sub-assembly and vacuum switching valve.

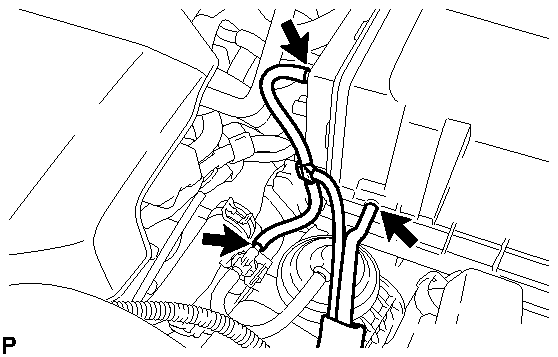

      Fig 4: Identifying Vacuum Hose Sub-Assembly
      GTY176714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL TRANSVERSE ENGINE MOUNTING BRACKET
    1. Install the transverse engine mounting bracket with the 3 bolts and nut.

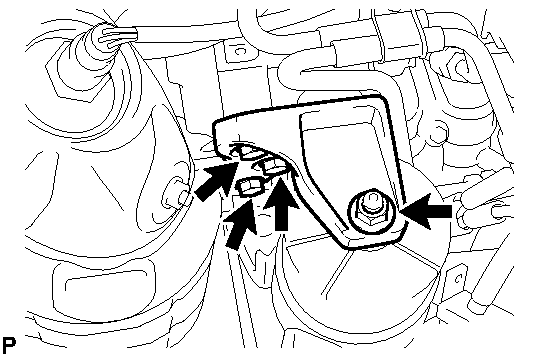

      Fig 5: Identifying Transverse Engine Mounting Bracket With Bolts And Nut
      GTY193972Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 64 N*m (653 kgf*cm, 47 ft.*lbf)

      for 3 Bolts

      Torque: 87 N*m (887 kgf*cm, 64 ft.*lbf)

      for Nut

  3. INSTALL RADIATOR ASSEMBLY AND FAN ASSEMBLY WITH MOTOR  . Refer to INSTALLATION - Step 4
  4. INSTALL COOLER CONDENSER ASSEMBLY  . Refer to INSTALLATION - Step 5
  5. INSTALL UPPER RADIATOR SUPPORT SUB-ASSEMBLY  . Refer to INSTALLATION - Step 6
  6. INSTALL HOOD LOCK ASSEMBLY (w/o Engine Hood Courtesy Switch)  . Refer to INSTALLATION - Step 2
  7. INSTALL HOOD LOCK ASSEMBLY (w/ Engine Hood Courtesy Switch)  . Refer to INSTALLATION - Step 3
  8. INSTALL RADIATOR GRILLE SUB-ASSEMBLY  . Refer to INSTALLATION - Step 2
  9. CONNECT COOLING FAN ECU CONNECTOR  . Refer to INSTALLATION - Step 10
  10. CONNECT OIL COOLER HOSE  . Refer to INSTALLATION - Step 11
  11. CONNECT NO. 2 RADIATOR HOSE  . Refer to INSTALLATION - Step 12
  12. CONNECT NO. 1 RADIATOR HOSE  . Refer to INSTALLATION - Step 13
  13. INSTALL NO. 1 AIR CLEANER INLET  . Refer to INSTALLATION - Step 6
  14. INSTALL NO. 2 AIR CLEANER INLET  . Refer to INSTALLATION - Step 7
  15. INSTALL BATTERY  . Refer to INSTALLATION - Step 8
  16. INSTALL COOL AIR INTAKE DUCT SEAL  . Refer to INSTALLATION - Step 9
  17. ADD ENGINE COOLANT  . Refer to REPLACEMENT - Step 5
  18. INSPECT FOR COOLANT LEAK  . Refer to ON-VEHICLE INSPECTION - Step 1
  19. INSPECT AUTOMATIC TRANSAXLE FLUID

    HINT:

    Refer to ON-VEHICLE INSPECTION - Step 1

  20. INSPECT FOR OIL LEAK
  21. INSTALL NO. 1 ENGINE UNDER COVER  . Refer to INSTALLATION - Step 100
  22. INSTALL ENGINE UNDER COVER ASSEMBLY  . Refer to INSTALLATION - Step 101
  23. INSTALL V-BANK COVER SUB-ASSEMBLY  . Refer to INSTALLATION - Step 102
