DTC U0125: Lost Communication with Yaw Rate Sensor Module; DTC U0124: Lost Communication with Lateral Acceleration Sensor Module: Procedure
- PRECAUTION NOTE:
After turning the engine switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work. Refer to PRECAUTION .
NEXT: Go to next step
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
- Disconnect the cable from the negative (-) battery terminal before measuring the resistances of the CAN main wire and the CAN branch wire.WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
NOTE:When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
NEXT: Go to next step
- Disconnect the cable from the negative (-) battery terminal before measuring the resistances of the CAN main wire and the CAN branch wire.
- CHECK FOR OPEN IN CAN BUS WIRE (YAW RATE SENSOR ASSEMBLY CAN BRANCH WIRE)
- Disconnect the E50 yaw rate sensor assembly connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance

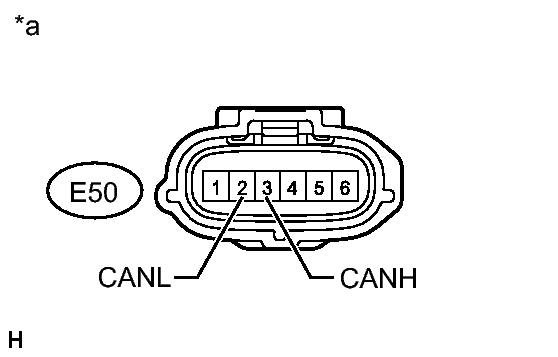

Tester Connection Switch Condition Specified Condition E50-3 (CANH) - E50-2 (CANL) Engine switch off 54 to 69 Ω TEXT IN ILLUSTRATION*a Front view of wire harness connector
(to Yaw Rate Sensor Assembly)
NG → REPAIR OR REPLACE YAW RATE SENSOR ASSEMBLY CAN BRANCH WIRE OR CONNECTOR (CANH, CANL)
OK: Go to next step
- CHECK HARNESS AND CONNECTOR (YAW RATE SENSOR ASSEMBLY - BATTERY AND BODY GROUND)
- Connect the cable to the negative (-) battery terminal.
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION
- Measure the voltage according to the value(s) in table below.
Standard Voltage
Tester Connection Switch Condition Specified Condition E50-4 (IG) - Body ground Engine switch on (IG) 11 to 14 V - Measure the resistance according to the value(s) in the table below.
Standard Resistance

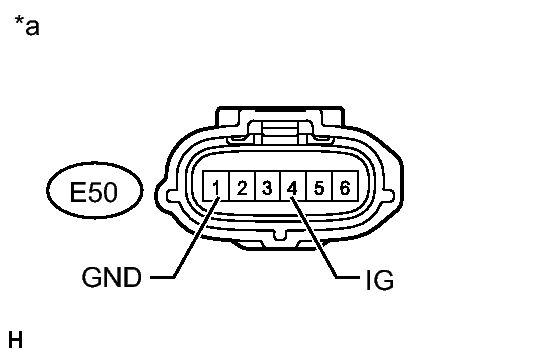

Tester Connection Condition Specified Condition E50-1 (GND) - Body ground Always Below 1 Ω TEXT IN ILLUSTRATION*a Front view of wire harness connector
(to Yaw Rate Sensor Assembly)
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK → See step 5
- Connect the cable to the negative (-) battery terminal.
- REPLACE YAW RATE SENSOR ASSEMBLY. Refer to REMOVAL
