Multi-media Module Receiver Assembly Communication Stop Mode: Wiring Diagram

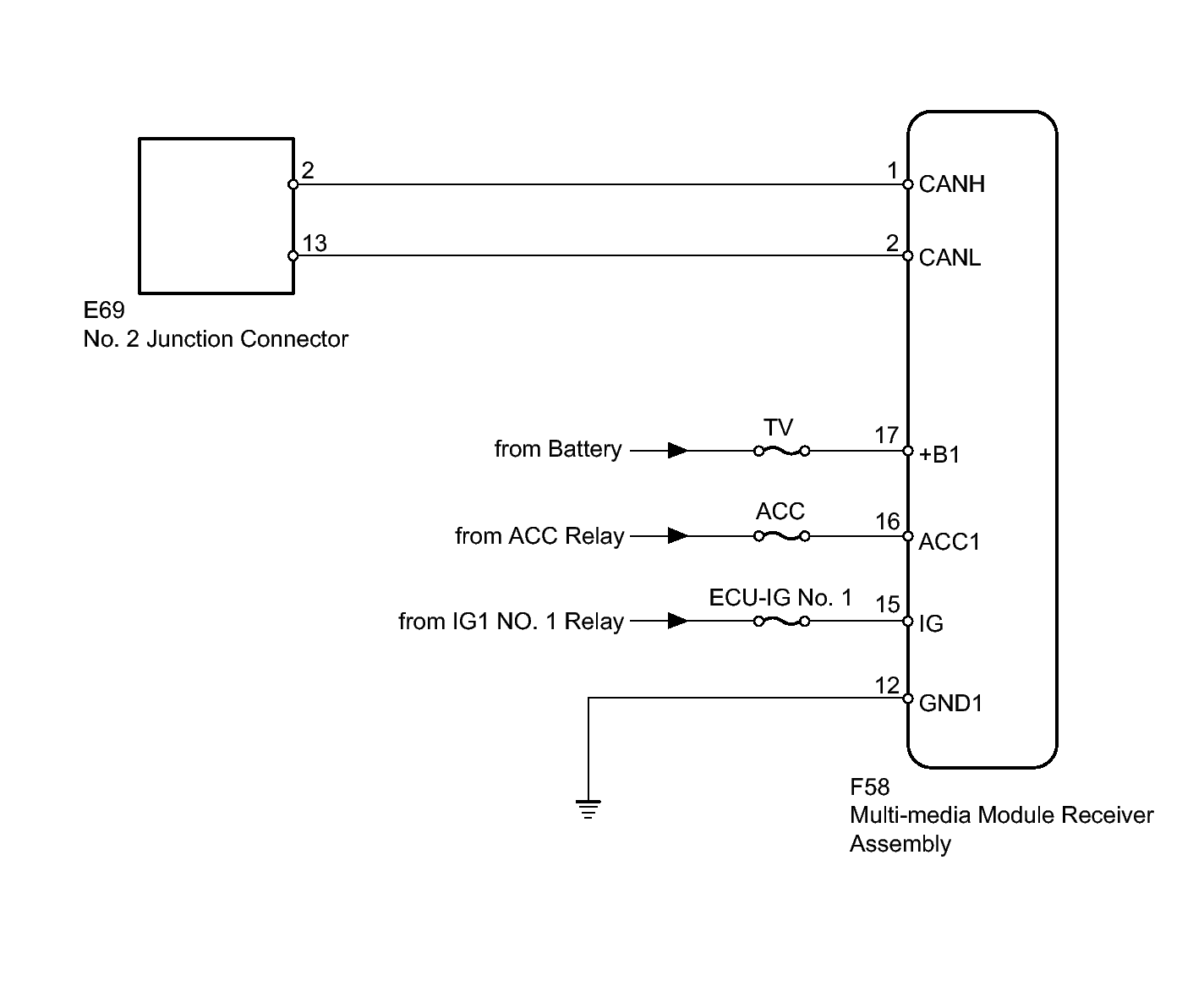

Fig 1: Multi-media Module Receiver Assembly Wiring Diagram
GTY362257Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
