Multi-display Power Source Circuit: Procedure

1. Disconnect the multi-display assembly connector.

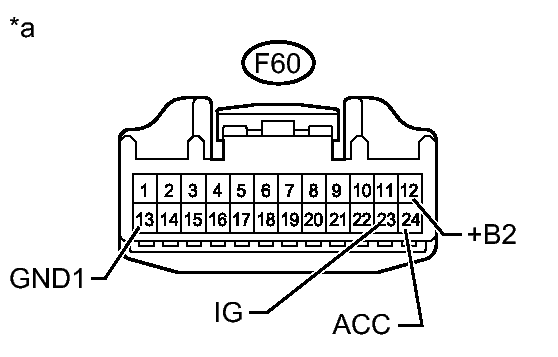

   Fig 1: Multi-Display Assembly Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   F60-13 (GND1) - Body ground	Always	Below 1 Ω

3. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   F60-12 (+B2) - Body ground	Always	11 to 14 V
   F60-23 (IG) - Body ground	Engine switch on (IG)	11 to 14 V
   F60-24 (ACC) - Body ground	Engine switch on (ACC)	11 to 14 V

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to Multi-display Assembly)

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   2
