Audio / Video System (W/O Navigation System) (Diagnostics - Introduction)
>>
AUDIO AND VISUAL SYSTEM (w/o Navigation System)
>>
System Diagram
>>
System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram

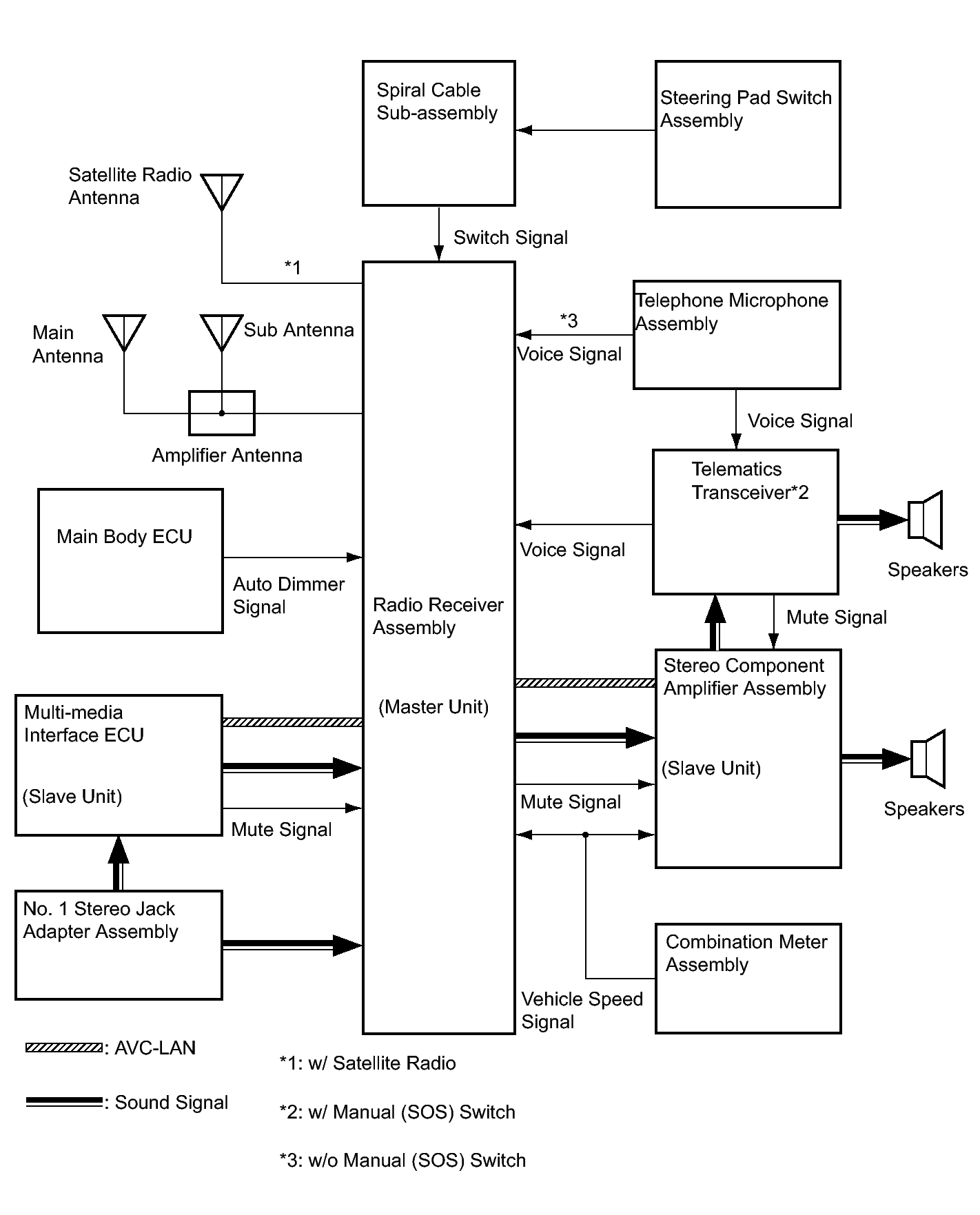

Fig 1: Audio And Visual System (w/o Navigation System) Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
