Customize Parameters

HINT:

The following items can be customized.

1. Connect the Techstream to the DLC3.
2. Turn the engine switch on (IG).
3. Turn the Techstream on.
4. Enter the following menus: Customize Setting.
5. Select the setting by referring to the table below.
   SMART KEY / ACCESS



   Display	Default	Contents	Setting
   Park Wait Time*1	2.5s	Function that sets the waiting time to permit unlocking the door after the door is locked with the entry lock function.	0.5s/1.5s/2.5s/5s
   Ignition Area*2	ALL	Function to choose the available area for the key to start the engine and cancel the steering lock.	FRONT/ALL*3
   Back Door Opening Operation*4	LONG	Back door opening the operation.	LONG/TWICE/OFF

   WARNING



   Display	Default	Contents	Setting
   Key Low Battery Warning*5	ON	Function that warns the driver that the key battery power is low.	ON/OFF

   HINT:

   *1: Waiting time to permit unlocking door after locking.

   *2: Entry ignition available area.

   *3: "FRONT" means front, and "ALL" means front, rear 1 and rear 2.

   *4: Back door open mode when vehicle is locked.

   *5: Warn when key battery becomes weak.

6. Customizing with the Multi-display (w/ Multi-display)
   1. Turn the engine switch on (IG).
   2. Enter the following menus: SET UP/ Vehicle / Vehicle Customization / Door Lock Settings.
   3. Select the setting by referring to the table below.

      Display	Default	Contents	Setting
      Remote 2-Press Unlock	On	Function that unlocks driver door when unlock switch on electrical key transmitter sub-assembly is pressed once, and unlocks all doors when pressed twice. If setting is Off, pressing unlock switch once makes all doors unlock.	On or Off
      Select Doors to Unlock	Driver's Door	Function that sets which doors are unlocked by the entry unlock function.	All Doors or Driver's Door
      Auto Relock Time Adjust	60 sec.	Function that regulates the interval between unlocking and automatic relocking of doors	30 sec., 60 sec. or 120 sec.
      Lock/Unlock Answer Back	On	When the doors are locked by wireless operation, the hazard warning lights flash once. When the doors are unlocked by wireless operation, the hazard warning lights flash twice.	On or Off
      Lock Feedback Volume	5 Bars	Wireless door lock buzzer volume	1, 2, 3, 4, 5, 6 or 7 Bars

1. Check that the power source mode is off and the LED on the key is not blinking. Press the lock switch and one of the other switches on the key at the same time for approximately 5 seconds while the key is in the actuation area.
   • When the switches are pressed and held for 5 seconds, the entry door unlock mode changes in the following order: driver door unlock mode, all door unlock mode.
   NOTE:

   After pressing and holding the switches for 5 seconds, wait 5 seconds before performing the same procedure again.

   • Driver door unlock mode (default):

     When the driver door touch sensor is touched, only the driver door unlocks. When another touch sensor is touched, all doors unlock.

   • All door unlock mode:

     When a touch sensor is touched, all doors unlock.

2. The certification ECU (smart key ECU assembly) receives this signal from the door control receiver and changes the smart key system to the entry unlock mode.
3. The certification ECU (smart key ECU assembly) sounds the wireless door lock buzzer and combination meter buzzer to inform the user that the mode has been switched.

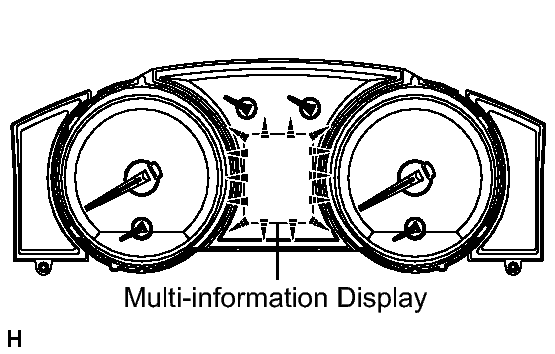

   Fig 1: Identifying Multi- information Display

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   The function only changes the entry unlock mode of the smart key system. It does not switch the unlocking of the wireless door lock control.

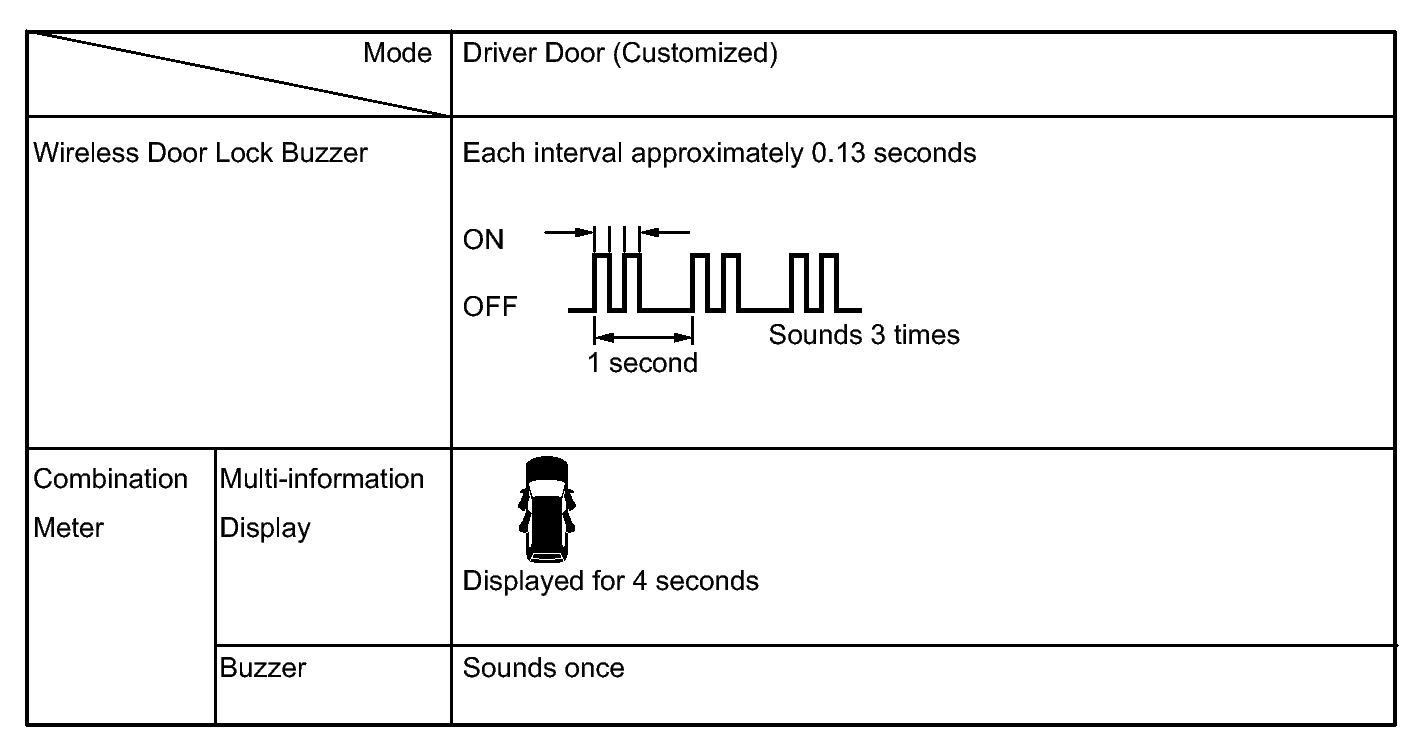

   • Driver door unlock mode:
     Fig 2: Driver Door Unlock Mode - Operation Procedures

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

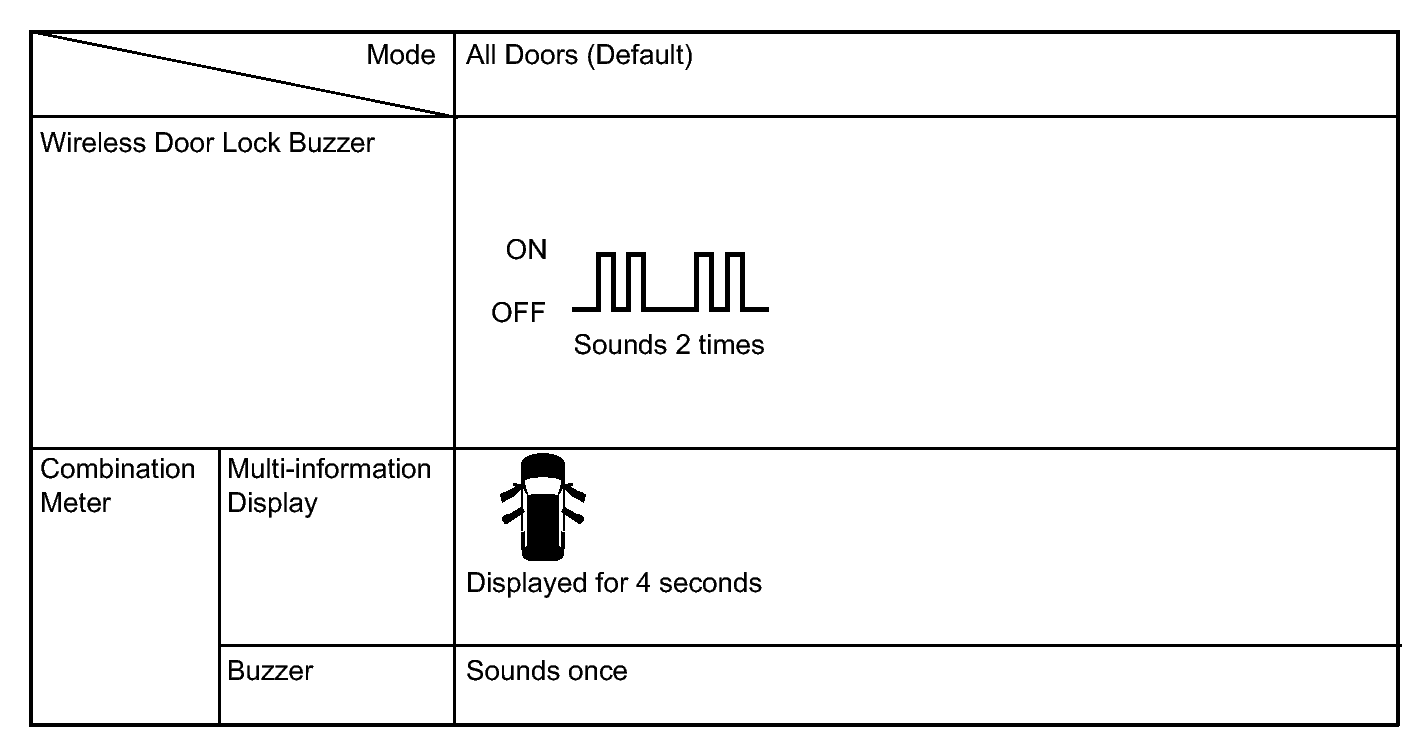

   • All door unlock mode:
     Fig 3: All Door Unlock Mode - Operation Procedures

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

The key cancel operation disables the following functions:

• Entry Unlock/Lock
• Key Lock-in Prevention
• Memory Call
• Entry Back Door Open
• Warning
• Entry Ignition

1. The operation procedures are as follows:

   Precondition:

   Engine switch off, driver side door closed and unlocked.

   1. Unlock the driver side door once with the unlock switch of the key.
   2. Open the driver door within 5 seconds.
   3. Unlock the driver side door twice with the unlock switch of the key within 5 seconds.
   4. Perform close → open twice for the driver door within 30 seconds.

      (Driver door: Open condition → Close → Open → Close → Open)

   5. Unlock the driver side door twice with the unlock switch of the key within 5 seconds.
   6. Perform close → open once for the driver door within 30 seconds.

      (Driver door: Open condition → Close → Open)

   7. Close the driver door within 5 seconds.

      When key cancel is activated, the wireless door lock buzzer sounds twice.

      To return to the original condition, perform the procedures again. When the original condition is returned, the wireless door lock buzzer sounds once.
