Engine Switch Indicator Circuit: Wiring Diagram

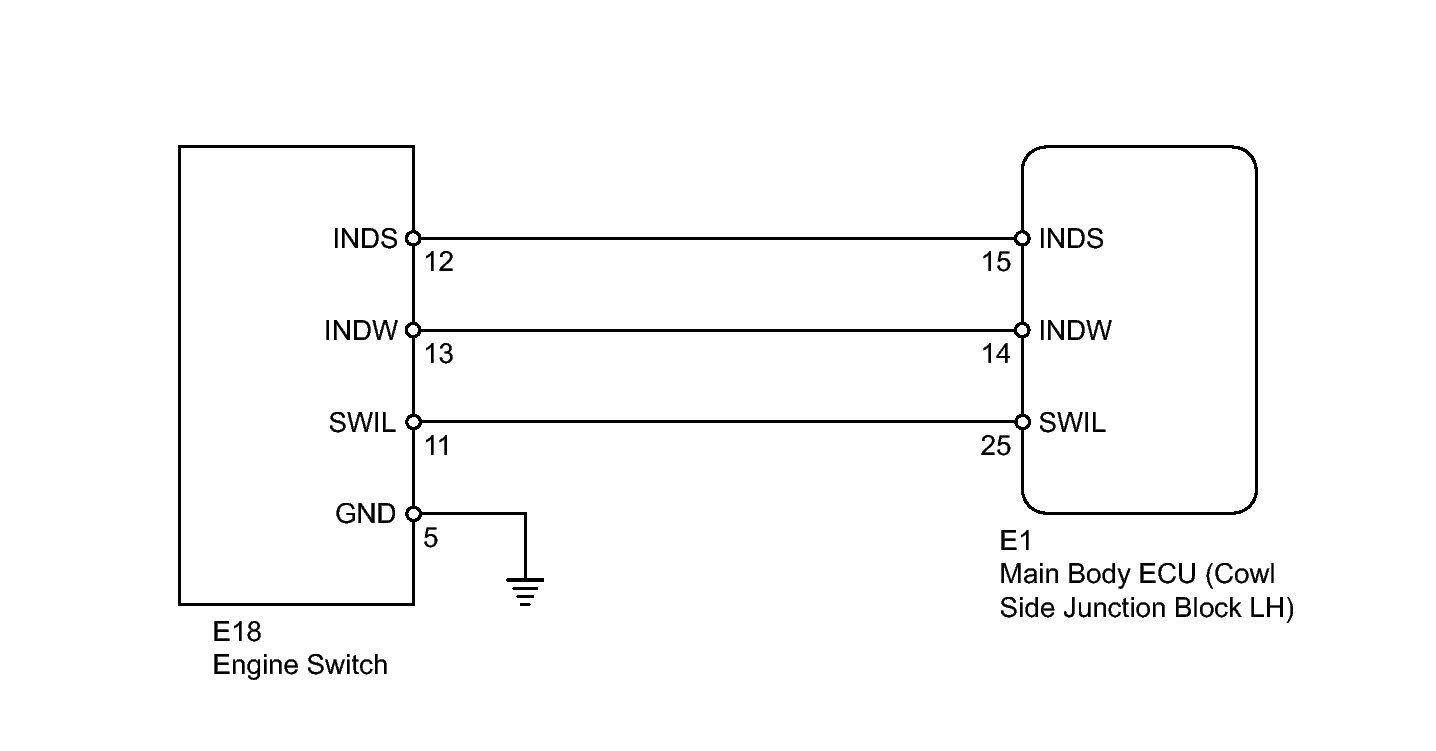

Fig 1: Engine Switch Indicator Circuit - Wiring Diagram
GTY226476Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
