Steering Column Assembly: Disassembly: Disassembly

  1. REMOVE STEERING LOCK ACTUATOR ASSEMBLY
    1. Using a center punch, mark the center of the 2 tapered-head bolts.
    2. Using a 3 to 4 mm (0.118 to 0.157 in.) drill, drill a hole in the 2 bolts.
      3. Fig 1: Removing Bolts And Steering Lock Actuator Assembly
      GTY114170Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a screw extractor, remove the 2 bolts and the steering lock actuator assembly from the steering column assembly.
  2. REMOVE MULTIPLEX TILT AND TELESCOPIC ECU

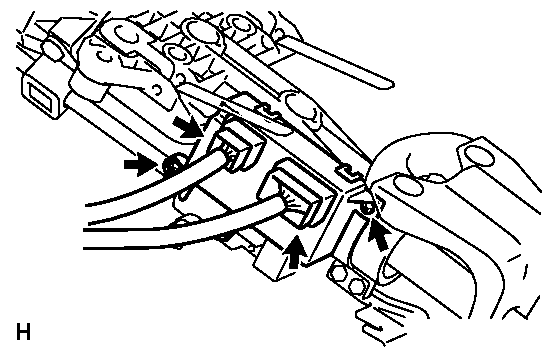

    Fig 2: Locating Multiplex Tilt And Telescopic ECU Connectors And Screws
    GTY109500Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the 2 connectors.
    2. Remove the 2 screws and ECU.
