Fuel System - Accelerator Pedal Sensor Service Precaution





T-SB-0087-12

June 13, 2012

Accelerator Pedal Sensor Assembly Service Precaution

Service Category
Engine/Hybrid System

Section
Engine Control

Market
USA

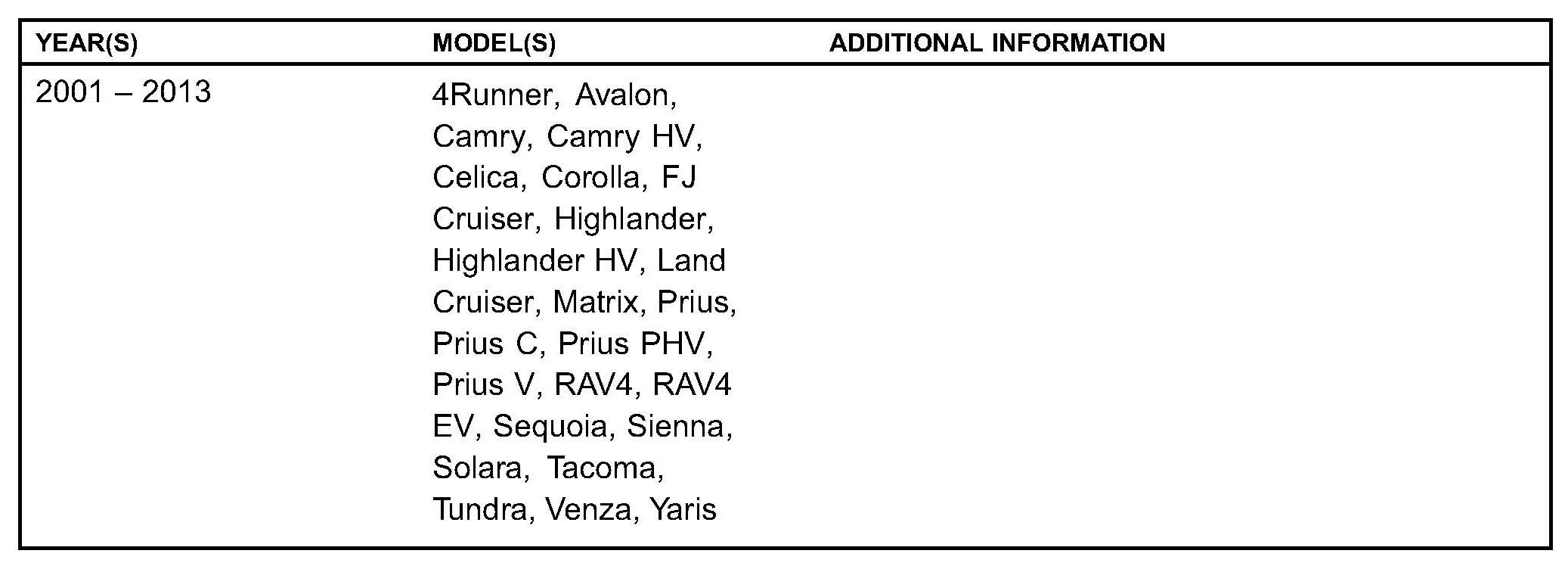

Applicability

Introduction

This bulletin provides a service precaution related to the accelerator pedal sensor assembly during inspection, removal, and installation.

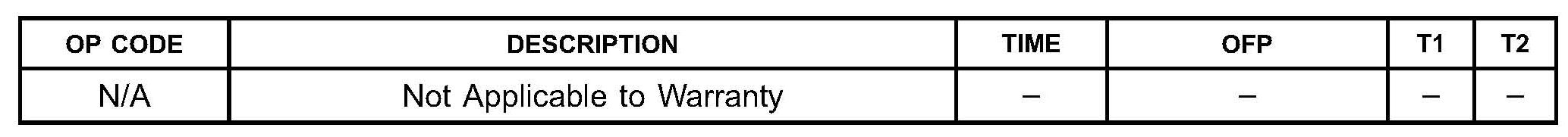

Warranty Information

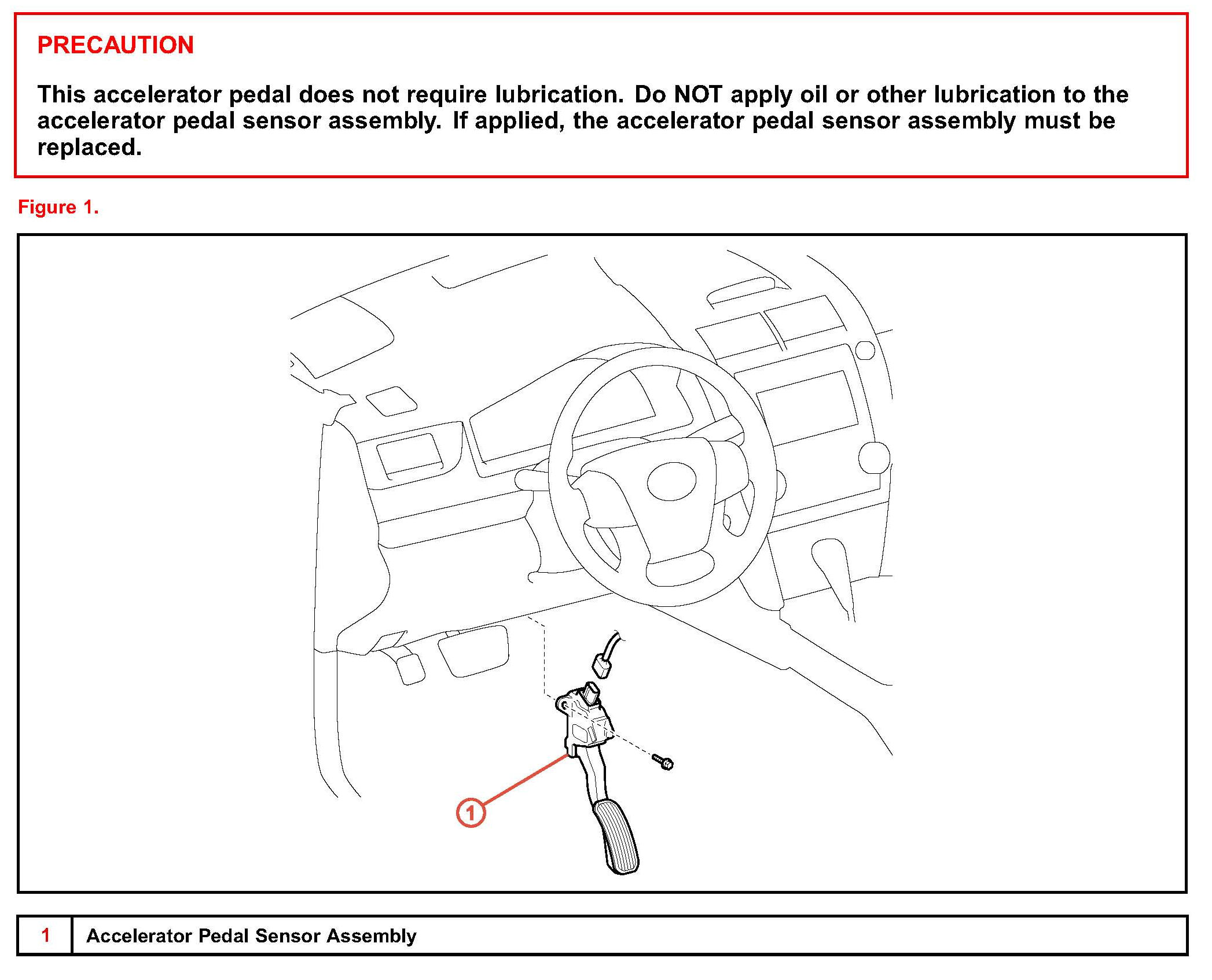

Service Precaution

© 2012 Toyota Motor Sales, USA
