Alignment

Wheel Alignment Specifications (Unloaded Vehicle)

Measuring points (for Torsion Type Suspension):
A: Ground clearance of front wheel center
B: Ground clearance of lower suspension arm No. 1 bush front bolt center
C: Ground clearance of axle beam set bolt center
D: Ground clearance of rear wheel center

Measuring points (for Double Wishbone Type Suspension):
A: Ground clearance of front wheel center
B: Ground clearance of lower suspension arm No. 1 bush front bolt center
C: Ground clearance of No. 1 lower suspension arm bushing set bolt center
D: Ground clearance of rear wheel center

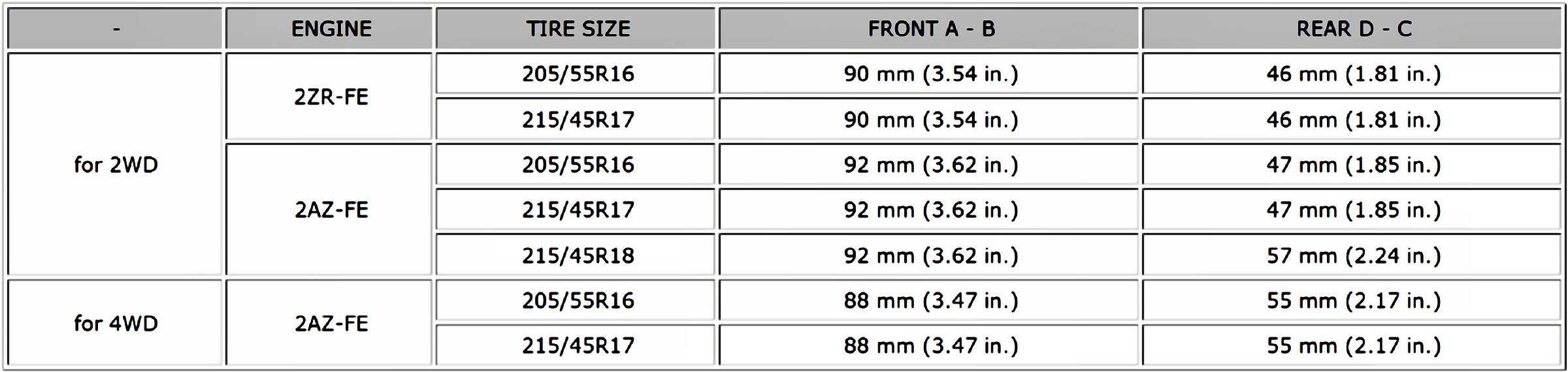

Vehicle Height:

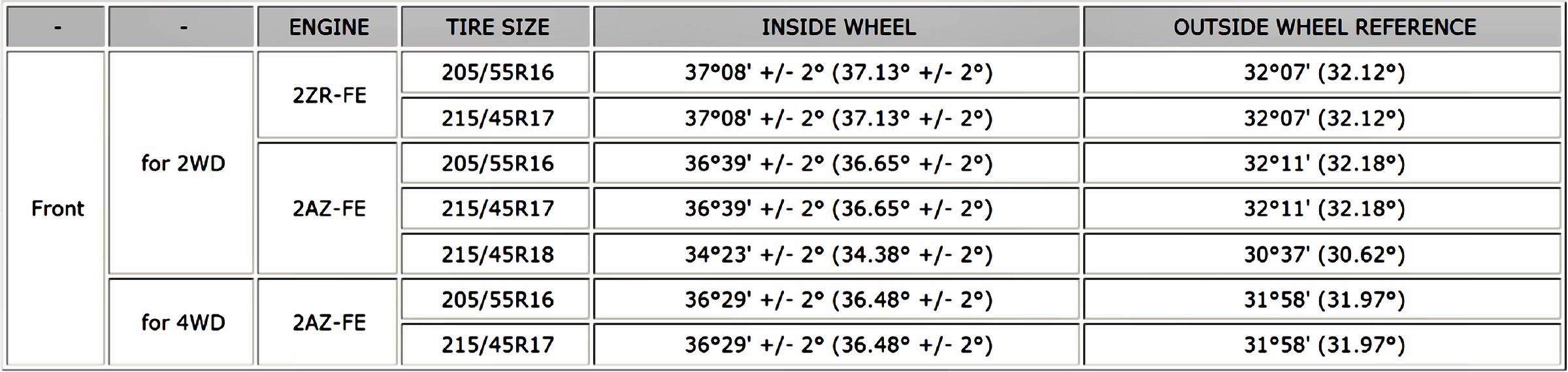

Wheel Angle:

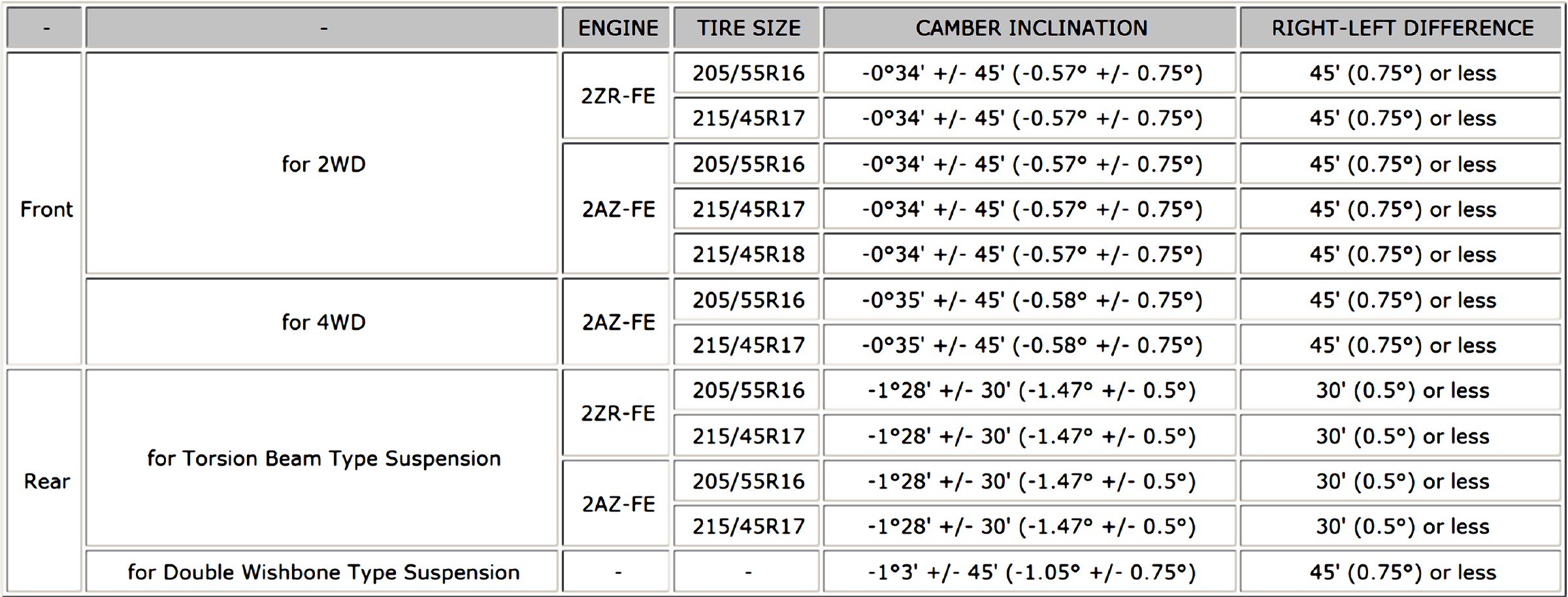

Camber Inclination:

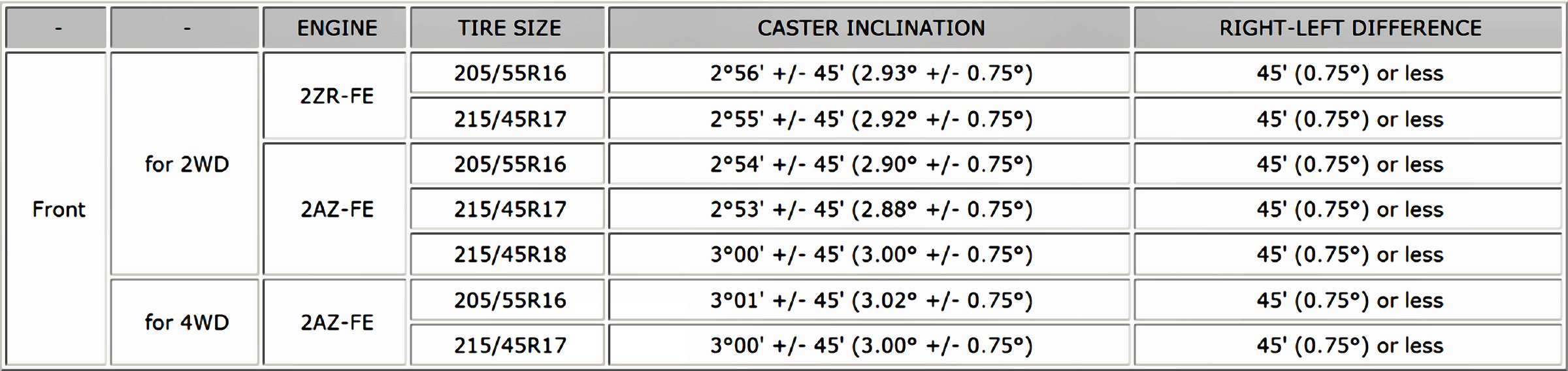

Caster Inclination:

Steering Axis Inclination:

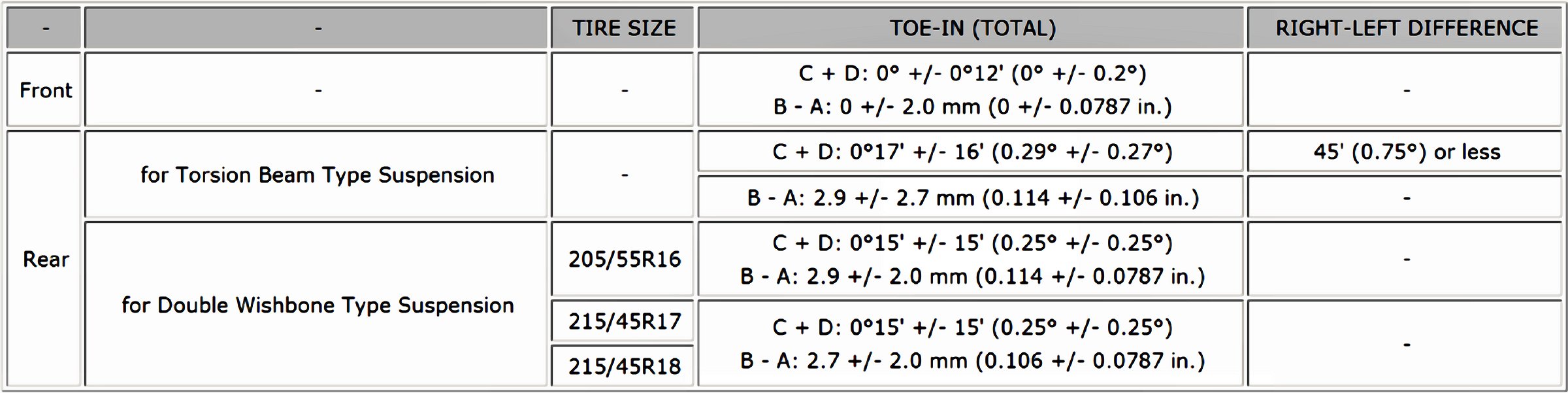

Toe-in:
