Check CAN Bus Line for Short to GND: Procedure

  1. CHECK FOR SHORT TO GND IN CAN BUS WIRE (DLC3 BRANCH WIRE)
    1. Turn the ignition switch off.
      Fig 1: Identifying DLC3 Branch Wire E65 Connector
      GTY290704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Rear view of wire harness connector
      (to CAN No. 1 Junction Connector)
    2. Disconnect the CAN No. 1 junction connector.
    3. Measure the resistance according to the value(s) in the table below.

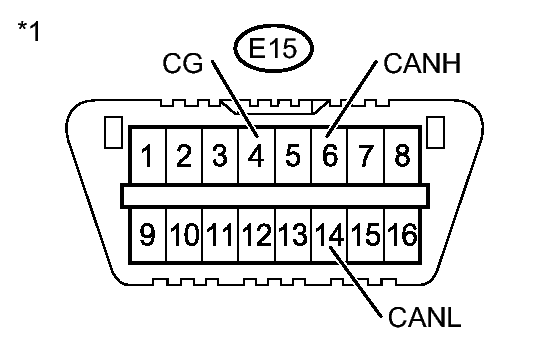

      Fig 2: Checking DLC3 E15 Connector Terminals
      GTY291855Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 DLC3

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      E15-6 (CANH) - E15-4 (CG) Ignition switch off 200 Ω or higher
      E15-14 (CANL) - E15-4 (CG) Ignition switch off 200 Ω or higher

    NG → REPAIR OR REPLACE CAN BRANCH WIRE CONNECTED TO DLC3

    OK: Go to next step

  2. CHECK FOR SHORT TO GND IN CAN BUS WIRE (CAN NO. 2 JUNCTION CONNECTOR)
    1. Turn the ignition switch off.
    2. Reconnect the CAN No. 1 junction connector.
    3. Disconnect the CAN No. 2 junction connector.
    4. Measure the resistance according to the value(s) in the table below.
      Fig 3: Checking DLC3 E15 Connector Terminals
      GTY291855Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 DLC3

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      E15-6 (CANH) - E15-4 (CG) Ignition switch off 200 Ω or higher
      E15-14 (CANL) - E15-4 (CG) Ignition switch off 200 Ω or higher

    NG → See step   7

    OK: Go to next step

  3. CHECK FOR SHORT TO GND IN CAN BUS WIRE (ECM MAIN WIRE)
    1. Measure the resistance according to the value(s) in the table below.

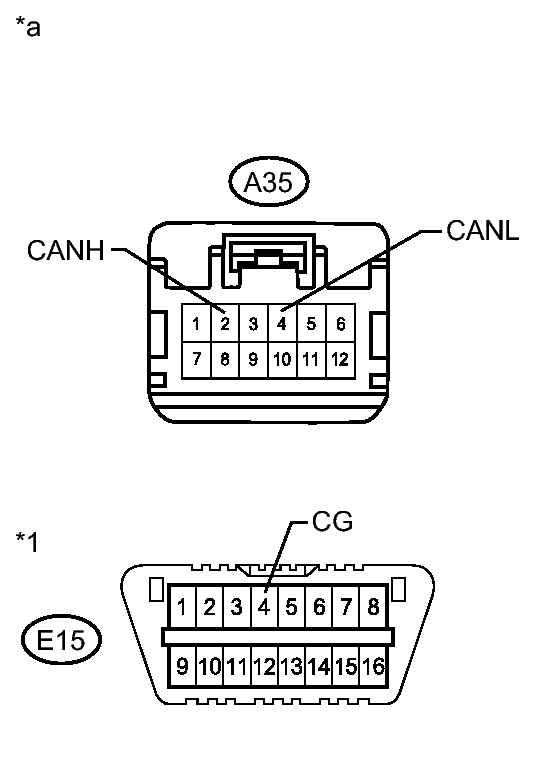

      Fig 4: Checking ECM Main Wire - DLC3 A35 & E15 Connector Terminals
      GTY290047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 DLC3
      *a Front view of wire harness connector
      (to CAN No. 2 Junction Connector)

      HINT:

      The resistance must be measured after the CAN No. 2 junction connector is disconnected.

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      A35-2 (CANH) - E15-4 (CG) Ignition switch off 200 Ω or higher
      A35-4 (CANL) - E15-4 (CG) Ignition switch off 200 Ω or higher

    NG → See step   5

    OK: Go to next step

  4. CHECK FOR SHORT TO GND IN CAN BUS WIRE (SKID CONTROL ECU BRANCH WIRE)
    1. Disconnect the skid control ECU connector.
      Fig 5: Checking Skid Control ECU A38 Connector Terminals
      GTY292044Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Front view of wire harness connector
      (to Skid Control ECU)
    2. Measure the resistance according to the value(s) in the table below.

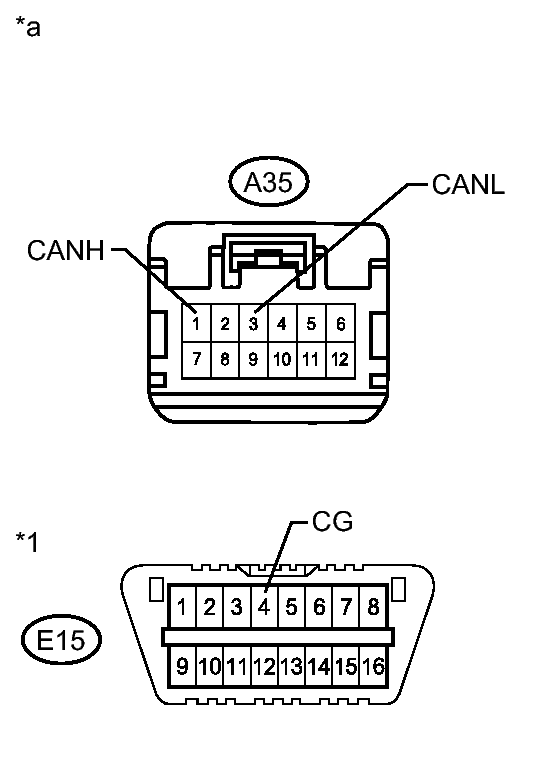

      Fig 6: Checking Skid Control ECU - DLC3 A35 & E15 Connector Terminals
      GTY290049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 DLC3
      *a Front view of wire harness connector
      (to CAN No. 2 Junction Connector)

      HINT:

      The resistance must be measured after the CAN No. 2 junction connector is disconnected.

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      A35-1 (CANH) - E15-4 (CG) Ignition switch off 200 Ω or higher
      A35-3 (CANL) - E15-4 (CG) Ignition switch off 200 Ω or higher

      Result

      Result Proceed to
      OK A
      NG B

    B → REPAIR OR REPLACE CAN BUS BRANCH WIRE OR CONNECTOR (CAN NO. 2 JUNCTION CONNECTOR - SKID CONTROL ECU)

    A → See step   30

  5. CHECK FOR SHORT TO GND IN CAN BUS WIRE (ECM MAIN WIRE)
    1. Disconnect the ECM connector.
      Fig 7: Checking ECM Communication A37 Connector Terminals
      GTY290894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Front view of wire harness connector
      (to ECM)
      *b for 2AZ-FE
      *c for 2ZR-FE
    2. Measure the resistance according to the value(s) in the table below.
      Fig 8: Checking ECM Main Wire - DLC3 A35 & E15 Connector Terminals
      GTY290047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 DLC3
      *a Front view of wire harness connector
      (to CAN No. 2 Junction Connector)

      HINT:

      The resistance must be measured after the CAN No. 2 junction connector is disconnected.

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      A35-2 (CANH) - E15-4 (CG) Ignition switch off 200 Ω or higher
      A35-4 (CANL) - E15-4 (CG) Ignition switch off 200 Ω or higher

      Result

      Result Proceed to
      OK (for 2ZR-FE) A
      OK (for 2AZ-FE) B
      NG C

    B → See step   31

    C → REPAIR OR REPLACE CAN BUS MAIN WIRE OR CONNECTOR (CAN NO. 2 JUNCTION CONNECTOR - ECM)

    A → See step   6

  6. REPLACE ECM. Refer to  REMOVAL
  7. CHECK FOR SHORT TO GND IN CAN BUS WIRE (POWER STEERING ECU BRANCH WIRE)
    1. Reconnect the CAN No. 2 junction connector.
      Fig 9: Checking Power Steering ECU - DLC3 E65 & E15 Connector Terminals
      GTY292643Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 DLC3
      *a Front view of wire harness connector
      (to CAN No. 1 Junction Connector)
    2. Disconnect the CAN No. 1 junction connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      E65-3 (CANH) - E15-4 (CG) Ignition switch off 200 Ω or higher
      E65-14 (CANL) - E15-4 (CG) Ignition switch off 200 Ω or higher

    NG → See step   16

    OK: Go to next step

  8. CHECK FOR SHORT TO GND IN CAN BUS WIRE (STEERING ANGLE SENSOR BRANCH WIRE)
    1. Measure the resistance according to the value(s) in the table below.
      Fig 10: Checking Steering Angle Sensor - DLC3 E65 & E15 Connector Terminals
      GTY292642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 DLC3
      *a Front view of wire harness connector
      (to CAN No. 1 Junction Connector)

      HINT:

      The resistance must be measured after the CAN No. 1 junction connector is disconnected.

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      E65-8 (CANH) - E15-4 (CG) Ignition switch off 200 Ω or higher
      E65-19 (CANL) - E15-4 (CG) Ignition switch off 200 Ω or higher

    NG → See step   17

    OK: Go to next step

  9. CHECK FOR SHORT TO GND IN CAN BUS WIRE (YAW RATE SENSOR BRANCH WIRE)
    1. Measure the resistance according to the value(s) in the table below.

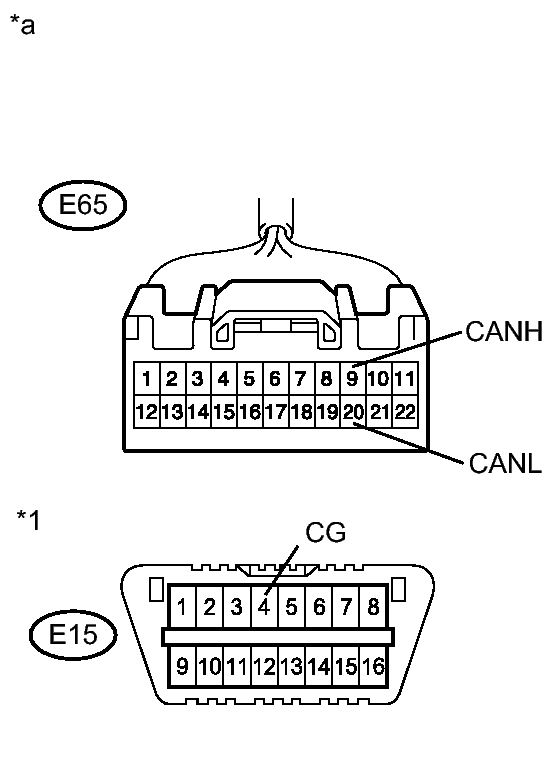

      Fig 11: Checking Yaw Rate Sensor - DLC3 E65 & E15 Connector Terminals
      GTY294073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 DLC3
      *a Front view of wire harness connector
      (to CAN No. 1 Junction Connector)

      HINT:

      The resistance must be measured after the CAN No. 1 junction connector is disconnected.

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      E65-9 (CANH) - E15-4 (CG) Ignition switch off 200 Ω or higher
      E65-20 (CANL) - E15-4 (CG) Ignition switch off 200 Ω or higher

    NG → See step   18

    OK: Go to next step

  10. CHECK FOR SHORT TO GND IN CAN BUS WIRE (MAIN BODY ECU BRANCH WIRE)
    1. Measure the resistance according to the value(s) in the table below.

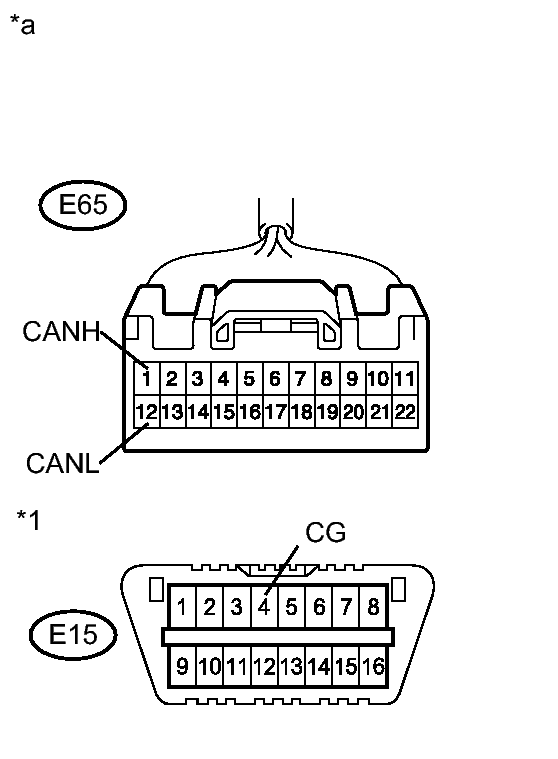

      Fig 12: Checking Main Body ECU - DLC3 E65 & E15 Connector Terminals
      GTY292640Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 DLC3
      *a Front view of wire harness connector
      (to CAN No. 1 Junction Connector)

      HINT:

      The resistance must be measured after the CAN No. 1 junction connector is disconnected.

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      E65-1 (CANH) - E15-4 (CG) Ignition switch off 200 Ω or higher
      E65-12 (CANL) - E15-4 (CG) Ignition switch off 200 Ω or higher

    NG → See step   19

    OK: Go to next step

  11. CHECK FOR SHORT TO GND IN CAN BUS WIRE (AIR CONDITIONING AMPLIFIER BRANCH WIRE)
    1. Measure the resistance according to the value(s) in the table below.

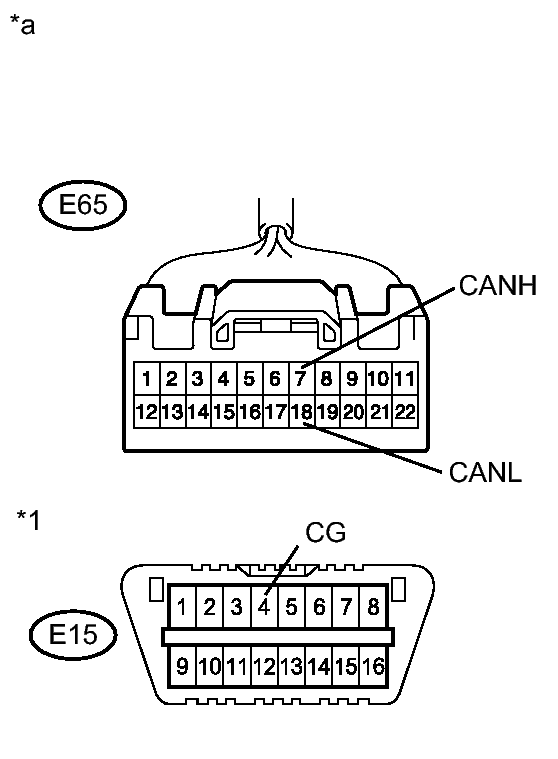

      Fig 13: Checking Air Conditioning Amplifier - DLC3 E65 & E15 Connector Terminals
      GTY292641Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 DLC3
      *a Front view of wire harness connector
      (to CAN No. 1 Junction Connector)

      HINT:

      The resistance must be measured after the CAN No. 1 junction connector is disconnected.

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      E65-7 (CANH) - E15-4 (CG) Ignition switch off 200 Ω or higher
      E65-18 (CANL) - E15-4 (CG) Ignition switch off 200 Ω or higher

    NG → See step   20

    OK: Go to next step

  12. CHECK FOR SHORT TO GND IN CAN BUS WIRE (CENTER AIRBAG SENSOR ASSEMBLY BRANCH WIRE)
    1. Measure the resistance according to the value(s) in the table below.

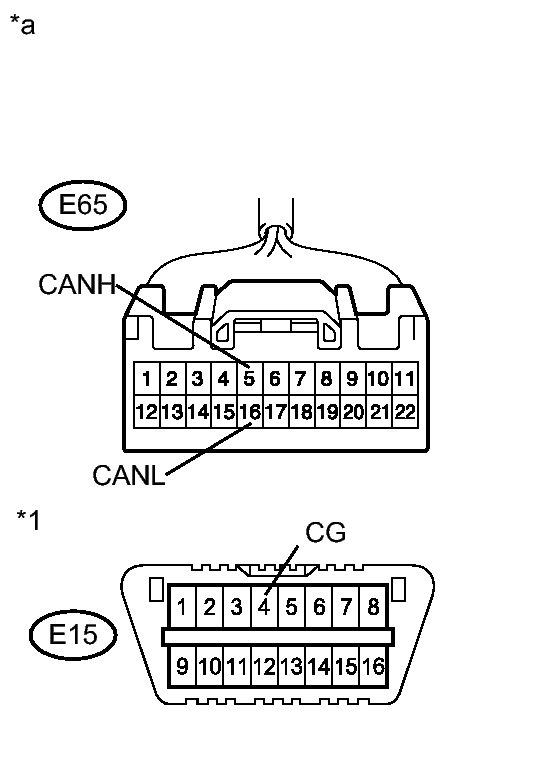

      Fig 14: Checking Center Airbag Sensor - DLC3 E65 & E15 Connector Terminals
      GTY292638Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 DLC3
      *a Front view of wire harness connector
      (to CAN No. 1 Junction Connector)

      HINT:

      The resistance must be measured after the CAN No. 1 junction connector is disconnected.

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      E65-5 (CANH) - E15-4 (CG) Ignition switch off 200 Ω or higher
      E65-16 (CANL) - E15-4 (CG) Ignition switch off 200 Ω or higher

    NG → See step   21

    OK: Go to next step

  13. CHECK FOR SHORT TO GND IN CAN BUS WIRE (COMBINATION METER MAIN WIRE)
    1. Measure the resistance according to the value(s) in the table below.

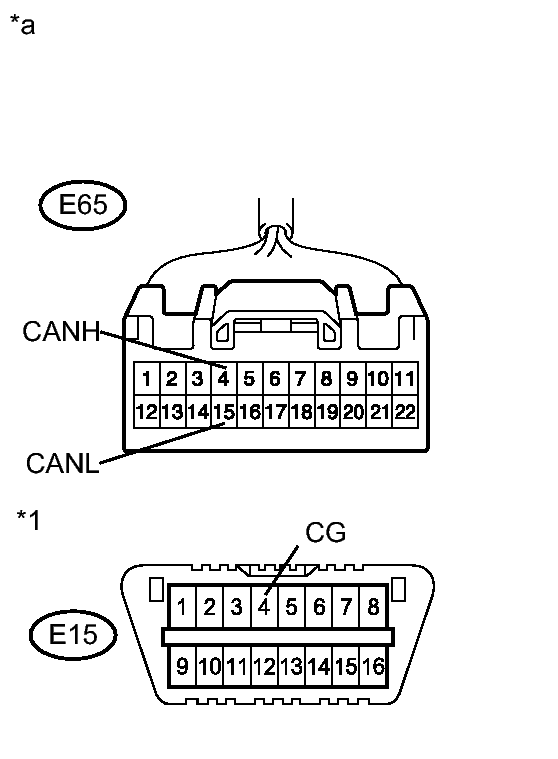

      Fig 15: Checking Combination Meter - DLC3 E65 & E15 Connector Terminals
      GTY292639Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 DLC3
      *a Front view of wire harness connector
      (to CAN No. 1 Junction Connector)

      HINT:

      The resistance must be measured after the CAN No. 1 junction connector is disconnected.

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      E65-4 (CANH) - E15-4 (CG) Ignition switch off 200 Ω or higher
      E65-15 (CANL) - E15-4 (CG) Ignition switch off 200 Ω or higher

    NG → See step   22

    OK: Go to next step

  14. CHECK FOR SHORT TO GND IN CAN BUS WIRE (4WD CONTROL ECU BRANCH WIRE)
    1. Measure the resistance according to the value(s) in the table below.

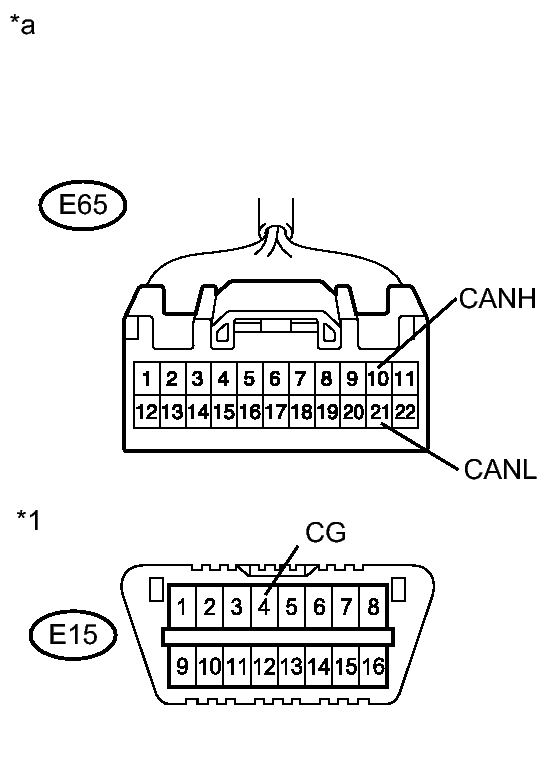

      Fig 16: Checking 4WD Control ECU - DLC3 E65 & E15 Connector Terminals
      GTY294072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 DLC3
      *a Front view of wire harness connector
      (to CAN No. 1 Junction Connector)

      HINT:

      The resistance must be measured after the CAN No. 1 junction connector is disconnected.

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      E65-10 (CANH) - E15-4 (CG) Ignition switch off 200 Ω or higher
      E65-21 (CANL) - E15-4 (CG) Ignition switch off 200 Ω or higher

    NG → See step   32

    OK: Go to next step

  15. CHECK FOR SHORT TO GND IN CAN BUS WIRE (ACCESSORY GATEWAY BRANCH WIRE)
    1. Measure the resistance according to the value(s) in the table below.

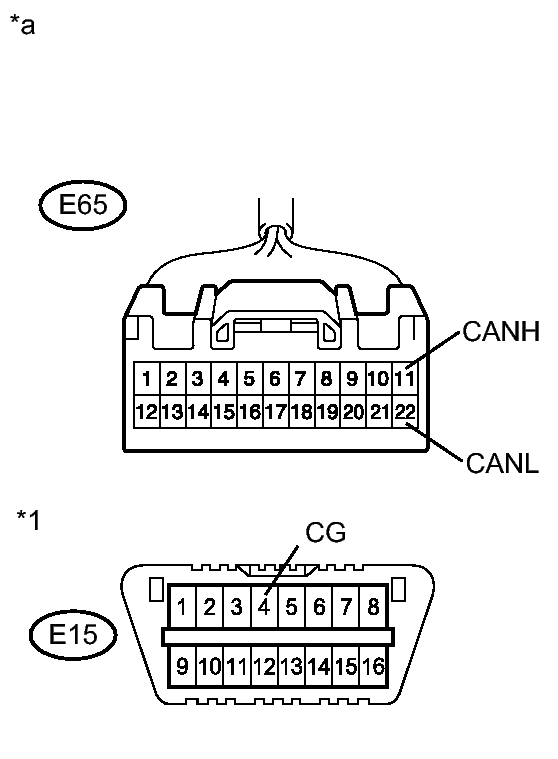

      Fig 17: Checking Accessory Gateway - DLC3 E65 & E15 Connector Terminals
      GTY292637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 DLC3
      *a Front view of wire harness connector
      (to CAN No. 1 Junction Connector)

      HINT:

      The resistance must be measured after the CAN No. 1 junction connector is disconnected.

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      E65-11 (CANH) - E15-4 (CG) Ignition switch off 200 Ω or higher
      E65-22 (CANL) - E15-4 (CG) Ignition switch off 200 Ω or higher

      Result

      Result Proceed to
      OK A
      NG (w/o remote engine starter) B
      NG (w/ remote engine starter) C

    B → REPAIR OR REPLACE CAN BUS BRANCH WIRE OR CONNECTOR (CAN NO. 1 JUNCTION CONNECTOR - ACCESSORY GATEWAY)

    C → See step   23

    A → REPAIR OR REPLACE CAN MAIN WIRE OR CONNECTOR (CAN NO. 1 JUNCTION CONNECTOR - CAN NO. 2 JUNCTION CONNECTOR)

  16. CHECK FOR SHORT TO GND IN CAN BUS WIRE (CAN NO. 1 JUNCTION CONNECTOR - POWER STEERING ECU)
    1. Disconnect the power steering ECU connector.
      Fig 18: Checking Power Steering ECU E51 Connector Terminals
      GTY291161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Front view of wire harness connector
      (to Power Steering ECU)
    2. Measure the resistance according to the value(s) in the table below.
      Fig 19: Checking Power Steering ECU - DLC3 E65 & E15 Connector Terminals
      GTY292643Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 DLC3
      *a Front view of wire harness connector
      (to CAN No. 1 Junction Connector)

      HINT:

      The resistance must be measured after the CAN No. 1 junction connector is disconnected.

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      E65-3 (CANH) - E15-4 (CG) Ignition switch off 200 Ω or higher
      E65-14 (CANL) - E15-4 (CG) Ignition switch off 200 Ω or higher

    NG → REPAIR OR REPLACE CAN BUS BRANCH WIRE OR CONNECTOR (CAN NO. 1 JUNCTION CONNECTOR - POWER STEERING ECU)

    OK → See step   24

  17. CHECK FOR SHORT TO GND IN CAN BUS WIRE (CAN NO. 1 JUNCTION CONNECTOR - STEERING ANGLE SENSOR)
    1. Disconnect the steering angle sensor connector.
      Fig 20: Identifying CAN No. 1 Junction Connector - Steering Angle Sensor E62 Connector
      GTY290084Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Rear view of wire harness connector
      (to Steering Angle Sensor)
    2. Measure the resistance according to the value(s) in the table below.
      Fig 21: Checking Steering Angle Sensor - DLC3 E65 & E15 Connector Terminals
      GTY292642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 DLC3
      *a Front view of wire harness connector
      (to CAN No. 1 Junction Connector)

      HINT:

      The resistance must be measured after the CAN No. 1 junction connector is disconnected.

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      E65-8 (CANH) - E15-4 (CG) Ignition switch off 200 Ω or higher
      E65-19 (CANL) - E15-4 (CG) Ignition switch off 200 Ω or higher

    NG → REPAIR OR REPLACE CAN BUS BRANCH WIRE OR CONNECTOR (CAN NO. 1 JUNCTION CONNECTOR - STEERING ANGLE SENSOR)

    OK → See step   25

  18. CHECK FOR SHORT TO GND IN CAN BUS WIRE (CAN NO. 1 JUNCTION CONNECTOR - YAW RATE SENSOR)
    1. Disconnect the yaw rate sensor connector.
      Fig 22: Checking Yaw Rate Sensor E61 Connector Terminals
      GTY289905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Front view of wire harness connector
      (to Yaw Rate Sensor)
    2. Measure the resistance according to the value(s) in the table below.
      Fig 23: Checking Yaw Rate Sensor - DLC3 E65 & E15 Connector Terminals
      GTY294073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 DLC3
      *a Front view of wire harness connector
      (to CAN No. 1 Junction Connector)

      HINT:

      The resistance must be measured after the CAN No. 1 junction connector is disconnected.

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      E65-9 (CANH) - E15-4 (CG) Ignition switch off 200 Ω or higher
      E65-20 (CANL) - E15-4 (CG) Ignition switch off 200 Ω or higher

    NG → REPAIR OR REPLACE CAN BUS BRANCH WIRE OR CONNECTOR (CAN NO. 1 JUNCTION CONNECTOR - YAW RATE SENSOR)

    OK → See step   26

  19. CHECK FOR SHORT TO GND IN CAN BUS WIRE (CAN NO. 1 JUNCTION CONNECTOR - MAIN BODY ECU)
    1. Disconnect the main body ECU connector.
      Fig 24: Checking Main Body ECU E63 Connector Terminals
      GTY292480Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Front view of wire harness connector
      (to Main Body ECU)
    2. Measure the resistance according to the value(s) in the table below.
      Fig 25: Checking Main Body ECU - DLC3 E65 & E15 Connector Terminals
      GTY292640Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 DLC3
      *a Front view of wire harness connector
      (to CAN No. 1 Junction Connector)

      HINT:

      The resistance must be measured after the CAN No. 1 junction connector is disconnected.

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      E65-1 (CANH) - E15-4 (CG) Ignition switch off 200 Ω or higher
      E65-12 (CANL) - E15-4 (CG) Ignition switch off 200 Ω or higher

    NG → REPAIR OR REPLACE CAN BUS BRANCH WIRE OR CONNECTOR (CAN NO. 1 JUNCTION CONNECTOR - MAIN BODY ECU)

    OK → REPLACE MAIN BODY ECU

  20. CHECK FOR SHORT TO GND IN CAN BUS WIRE (CAN NO. 1 JUNCTION CONNECTOR - AIR CONDITIONING AMPLIFIER)
    1. Disconnect the air conditioning amplifier connector.
      Fig 26: Checking Air Conditioning Amplifier E8 & E73 Connector Terminals
      GTY290063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *A for 2AZ-FE
      *B for 2ZR-FE
      *a Front view of wire harness connector
      (to Air Conditioning Amplifier)
    2. Measure the resistance according to the value(s) in the table below.
      Fig 27: Checking Air Conditioning Amplifier - DLC3 E65 & E15 Connector Terminals
      GTY292641Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 DLC3
      *a Front view of wire harness connector
      (to CAN No. 1 Junction Connector)

      HINT:

      The resistance must be measured after the CAN No. 1 junction connector is disconnected.

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      E65-7 (CANH) - E15-4 (CG) Ignition switch off 200 Ω or higher
      E65-18 (CANL) - E15-4 (CG) Ignition switch off 200 Ω or higher

    NG → REPAIR OR REPLACE CAN BUS BRANCH WIRE OR CONNECTOR (CAN NO. 1 JUNCTION CONNECTOR - AIR CONDITIONING AMPLIFIER)

    OK → See step   27

  21. CHECK FOR SHORT TO GND IN CAN BUS WIRE (CAN NO. 1 JUNCTION CONNECTOR - CENTER AIRBAG SENSOR ASSEMBLY)
    1. Disconnect the center airbag sensor assembly connector.
      Fig 28: Identifying CAN No. 1 Junction Connector - Center Airbag Sensor E18 Connector
      GTY290255Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Rear view of wire harness connector
      (to Center Airbag Sensor Assembly)
    2. Measure the resistance according to the value(s) in the table below.
      Fig 29: Checking Center Airbag Sensor - DLC3 E65 & E15 Connector Terminals
      GTY292638Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 DLC3
      *a Front view of wire harness connector
      (to CAN No. 1 Junction Connector)

      HINT:

      The resistance must be measured after the CAN No. 1 junction connector is disconnected.

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      E65-5 (CANH) - E15-4 (CG) Ignition switch off 200 Ω or higher
      E65-16 (CANL) - E15-4 (CG) Ignition switch off 200 Ω or higher

    NG → REPAIR OR REPLACE CAN BUS BRANCH WIRE OR CONNECTOR (CAN NO. 1 JUNCTION CONNECTOR - CENTER AIRBAG SENSOR ASSEMBLY)

    OK → See step   28

  22. CHECK FOR SHORT TO GND IN CAN BUS WIRE (CAN NO. 1 JUNCTION CONNECTOR - COMBINATION METER)
    1. Disconnect the combination meter connector.
      Fig 30: Identifying Combination Meter Main Wire E55 Connector
      GTY290825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Rear view of wire harness connector
      (to Combination Meter)
    2. Measure the resistance according to the value(s) in the table below.
      Fig 31: Checking Combination Meter - DLC3 E65 & E15 Connector Terminals
      GTY292639Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 DLC3
      *a Front view of wire harness connector
      (to CAN No. 1 Junction Connector)

      HINT:

      The resistance must be measured after the CAN No. 1 junction connector is disconnected.

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      E65-4 (CANH) - E15-4 (CG) Ignition switch off 200 Ω or higher
      E65-15 (CANL) - E15-4 (CG) Ignition switch off 200 Ω or higher

    NG → REPAIR OR REPLACE CAN BUS MAIN WIRE OR CONNECTOR (CAN NO. 1 JUNCTION CONNECTOR - COMBINATION METER)

    OK → See step   29

  23. CHECK FOR SHORT TO GND IN CAN BUS WIRE (CAN NO. 1 JUNCTION CONNECTOR - ACCESSORY GATEWAY)
    1. Disconnect the accessory gateway connector from the accessory.
      Fig 32: Checking CAN No. 1 Junction Connector - Accessory Gateway E43 Connector Terminals
      GTY293755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Rear view of wire harness connector
      (to Accessory Gateway)
    2. Measure the resistance according to the value(s) in the table below.
      Fig 33: Checking Accessory Gateway - DLC3 E65 & E15 Connector Terminals
      GTY292637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 DLC3
      *a Front view of wire harness connector
      (to CAN No. 1 Junction Connector)

      HINT:

      The resistance must be measured after the CAN No. 1 junction connector is disconnected.

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      E65-11 (CANH) - E15-4 (CG) Ignition switch off 200 Ω or higher
      E65-22 (CANL) - E15-4 (CG) Ignition switch off 200 Ω or higher

    NG → REPAIR OR REPLACE CAN BUS BRANCH WIRE OR CONNECTOR (CAN NO. 1 JUNCTION CONNECTOR - ACCESSORY GATEWAY)

    OK → REPLACE THE ACCESSORY

  24. REPLACE POWER STEERING ECU. Refer to  REMOVAL
  25. REPLACE STEERING ANGLE SENSOR. Refer to  REMOVAL
  26. REPLACE YAW RATE SENSOR. Refer to  REMOVAL
  27. REPLACE AIR CONDITIONING AMPLIFIER. Refer to  REMOVAL
  28. REPLACE CENTER AIRBAG SENSOR ASSEMBLY. Refer to  REMOVAL
  29. REPLACE COMBINATION METER. Refer to  REMOVAL
  30. REPLACE BRAKE ACTUATOR ASSEMBLY. Refer to  REMOVAL
  31. REPLACE ECM. Refer to  REMOVAL
  32. CHECK FOR SHORT TO GND IN CAN BUS WIRE (4WD CONTROL ECU BRANCH WIRE)
    1. Disconnect the 4WD control ECU connector.
      Fig 34: Checking CAN No. 1 Junction Connector - 4WD Control ECU E17 Connector Terminals
      GTY291449Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Front view of wire harness connector
      (to 4WD Control ECU)
    2. Measure the resistance according to the value(s) in the table below.
      Fig 35: Checking 4WD Control ECU - DLC3 E65 & E15 Connector Terminals
      GTY294072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 DLC3
      *a Front view of wire harness connector
      (to CAN No. 1 Junction Connector)

      HINT:

      The resistance must be measured after the CAN No. 1 junction connector is disconnected.

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      E65-10 (CANH) - E15-4 (CG) Ignition switch off 200 Ω or higher
      E65-21 (CANL) - E15-4 (CG) Ignition switch off 200 Ω or higher

    NG → REPAIR OR REPLACE CAN BUS BRANCH WIRE OR CONNECTOR (CAN NO. 1 JUNCTION CONNECTOR - 4WD CONTROL ECU)

    OK → See step   33

  33. REPLACE 4WD CONTROL ECU. Refer to  REMOVAL
scientia non olet · About LEMON Manuals
