ECM Communication Stop Mode: Wiring Diagram

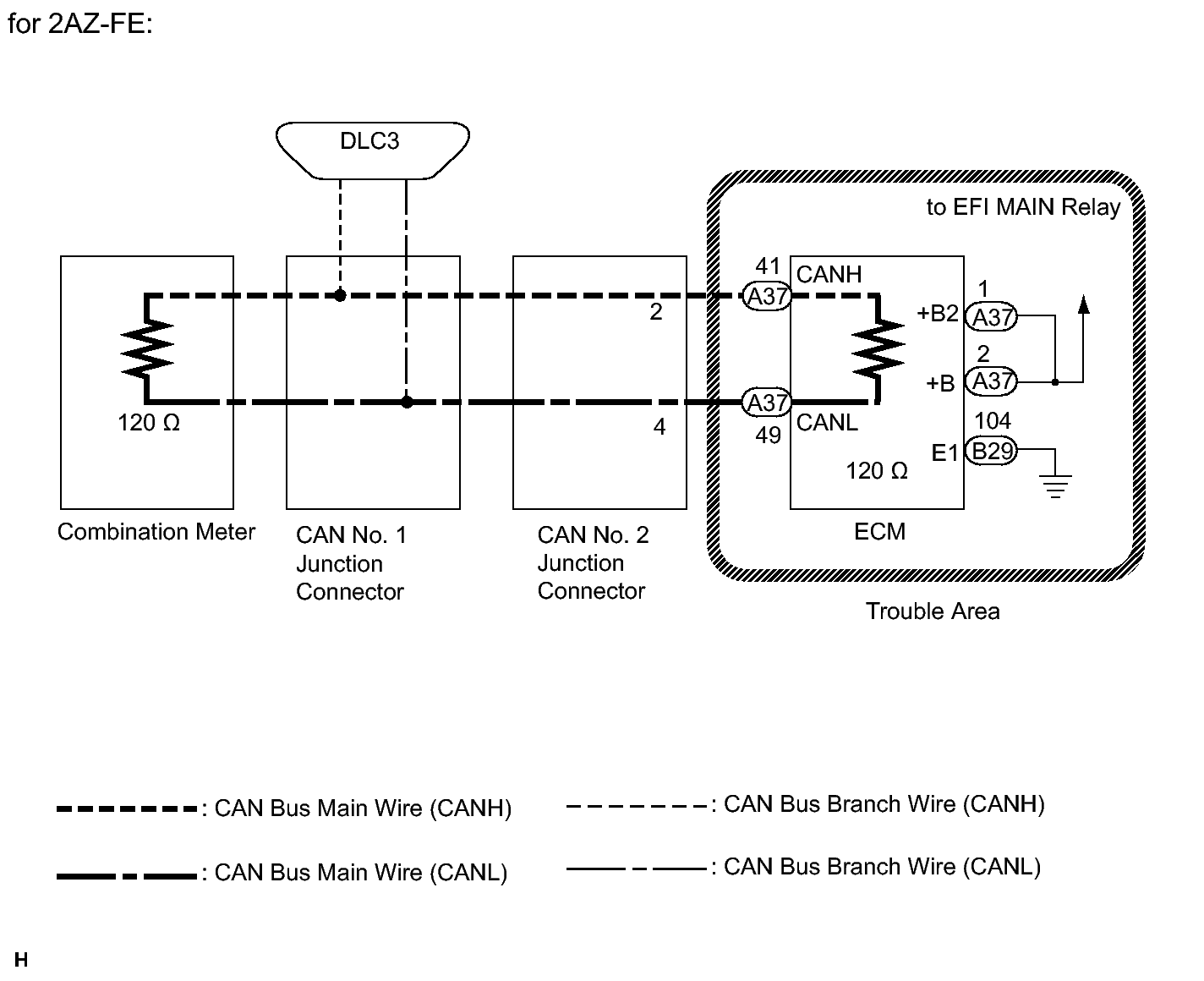

Fig 1: ECM Communication Diagram (For 2AZ-FE)
GTY293231Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: ECM Communication Diagram (For 2ZR-FE)
GTY293230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
