Can Communication System (Diagnostics & Circuit Tests)
>>
Can Communication System
>>
Symptom Tests
>>
Open in CAN Main Bus Line
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Open in CAN Main Bus Line: Wiring Diagram

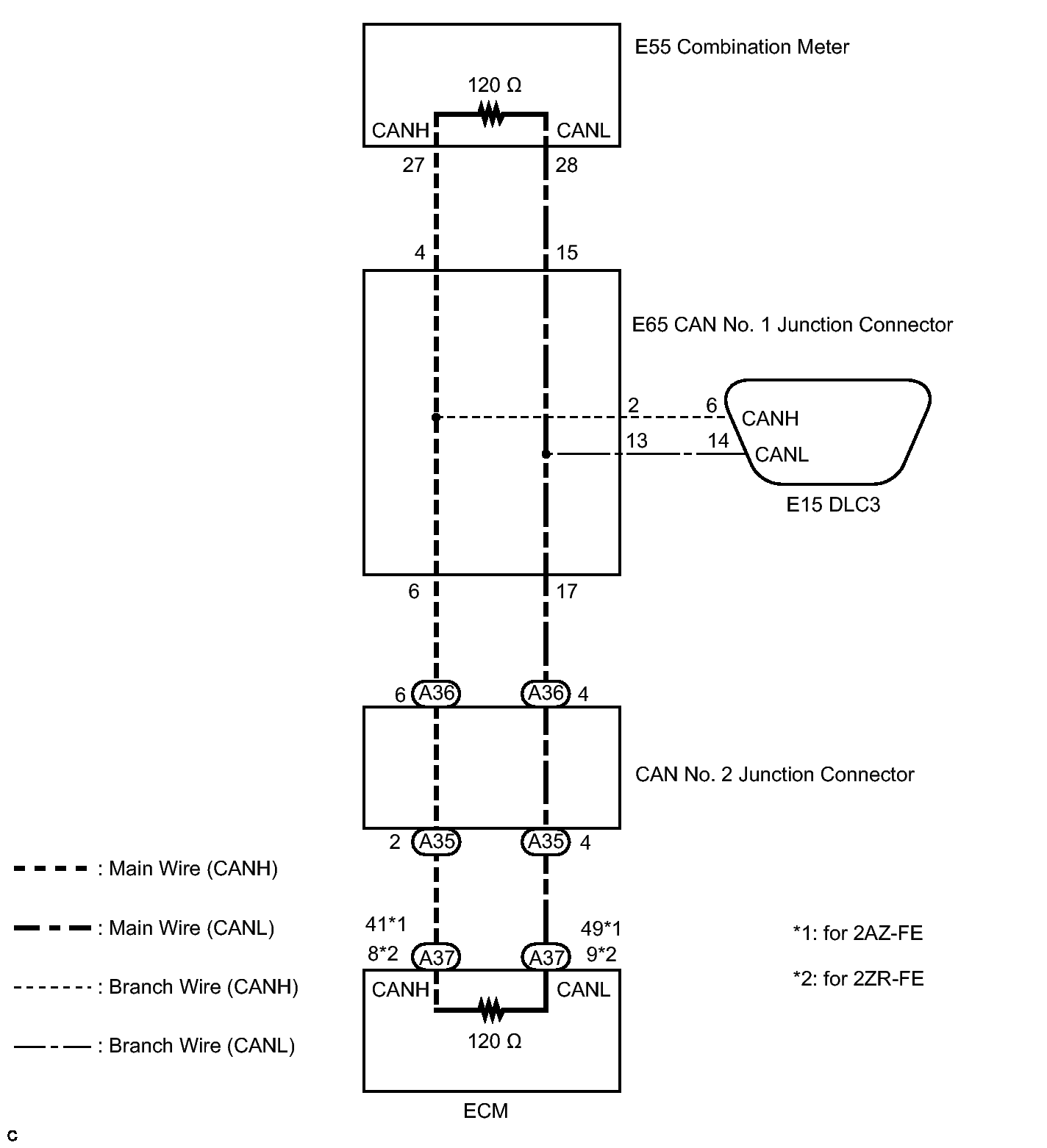

Fig 1: CAN Main Bus Line Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
