System Diagram

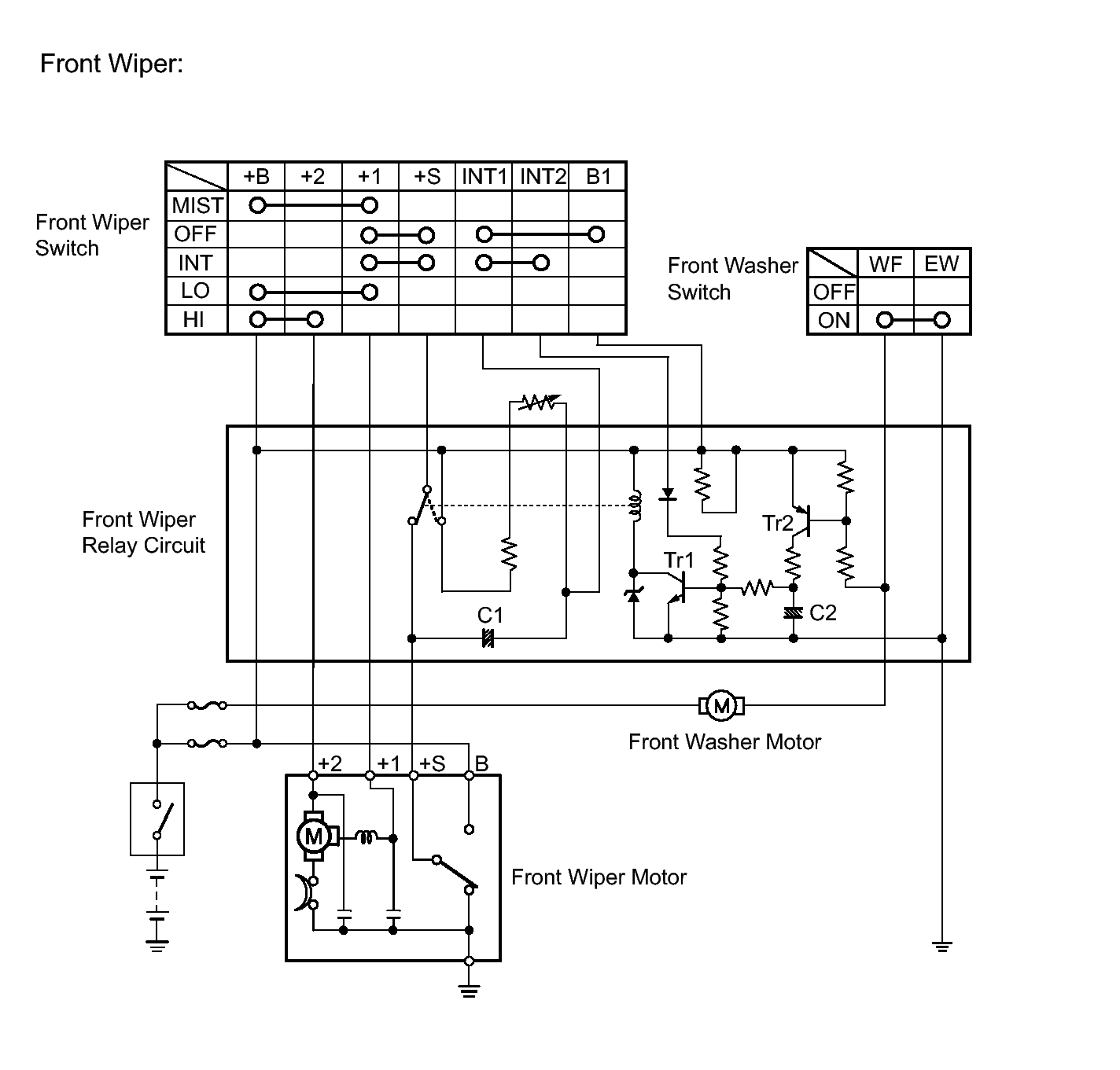

Fig 1: Wiper And Washer Circuit Diagram - Front Wiper
GTY225838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

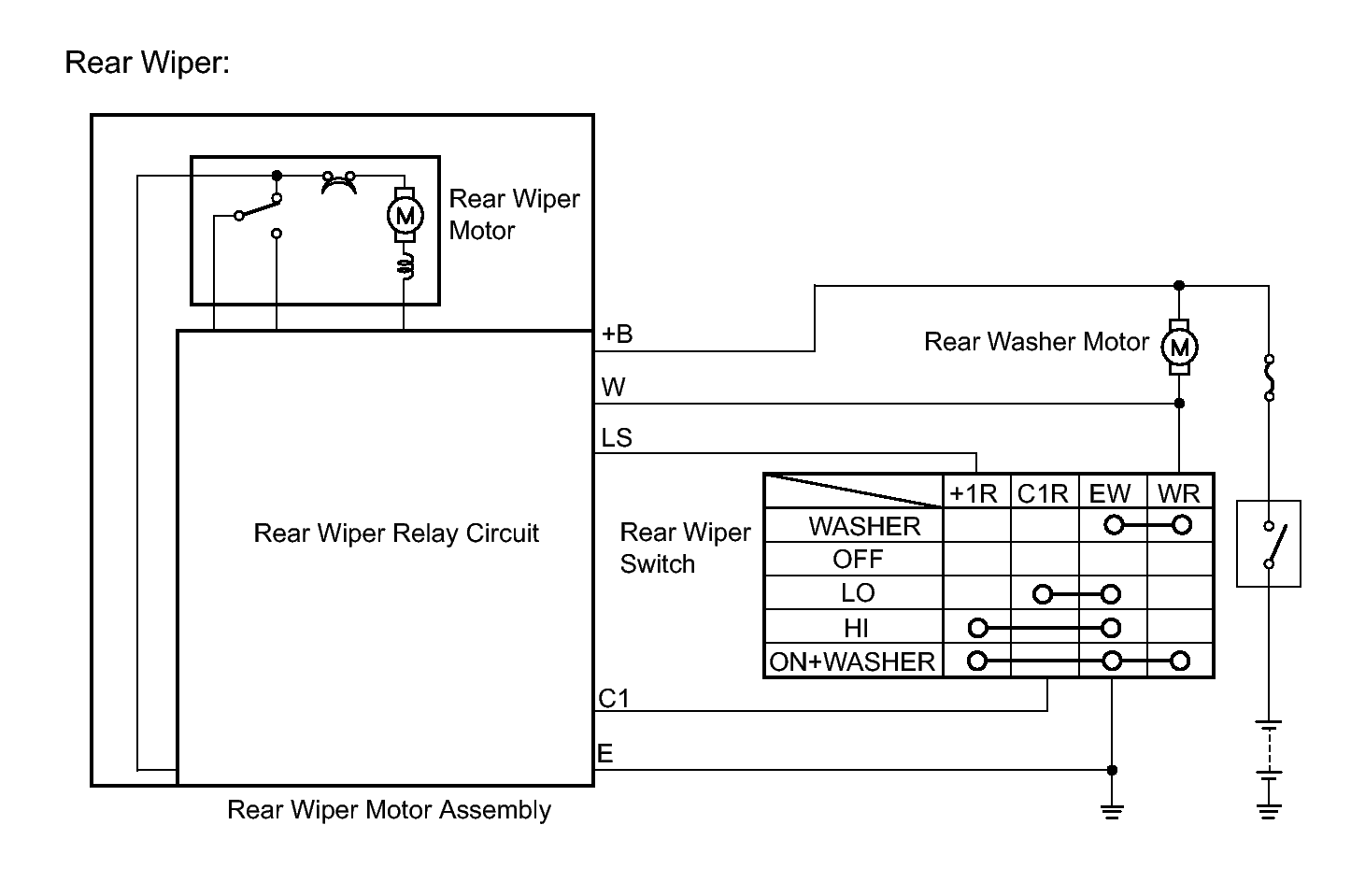

Fig 2: Wiper And Washer Circuit Diagram - Rear Wiper
GTY247101Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
