VSC Off Switch: Inspection: Inspection

INSPECT VSC OFF SWITCH

Measure the resistance according to the value(s) in the table below.

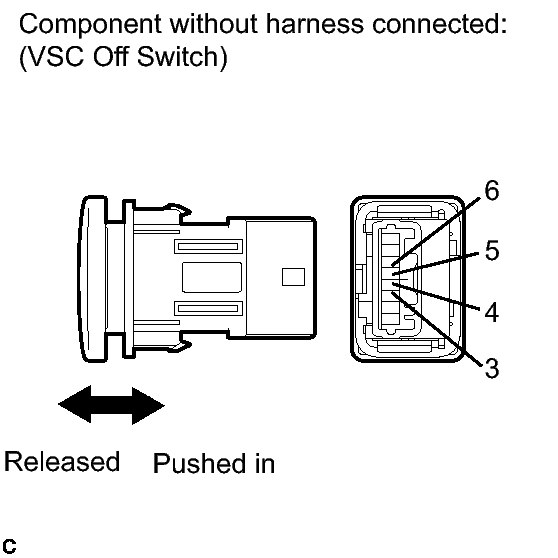

Fig 1: Inspecting VSC OFF Switch

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard Resistance

Tester Connection	Switch Condition	Specified Condition
3 - 6	Released	10 kΩ or higher
3 - 6	Pushed in	Below 25 Ω

If the result is not as specified, replace the switch.

Check illumination operation.

Standard

Tester Connection	Condition	Specified Condition
4 (Battery negative (-)) - 5 (Battery positive (+))	Always	LED illuminates

If the result is not as specified, replace the VSC off switch.
