Ground Point: Notes

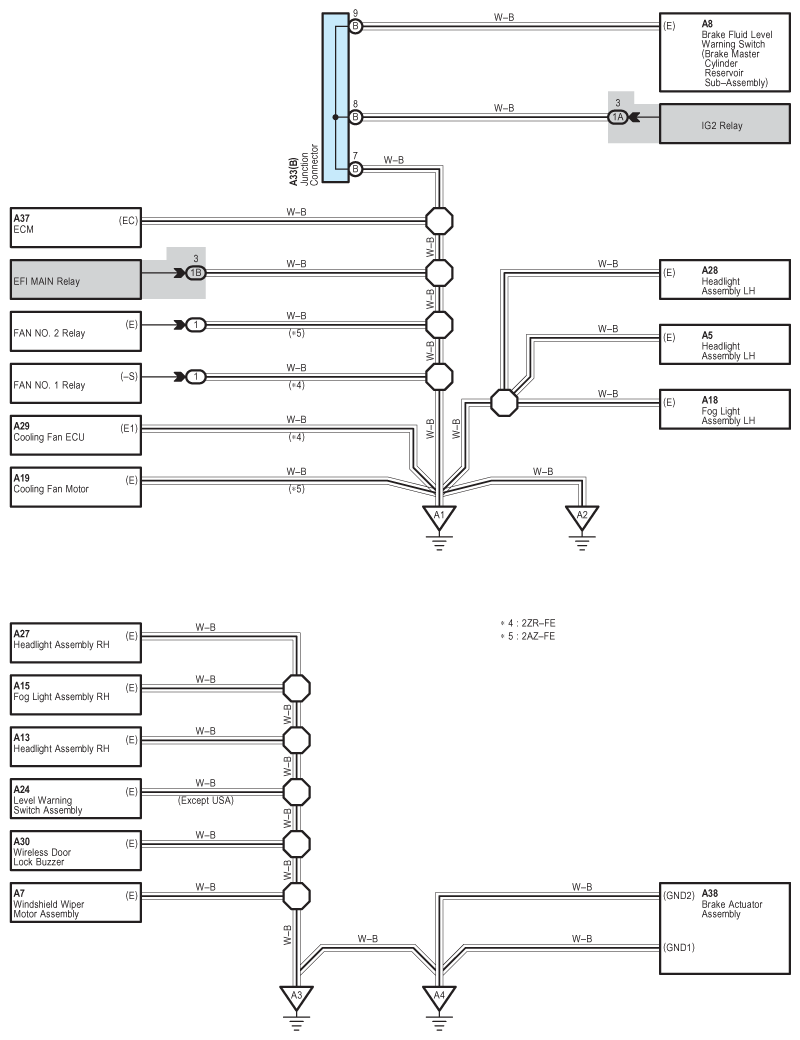

Fig 1: Example Of Ground Point System Wiring Diagram (1 Of 5)
G09105989Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

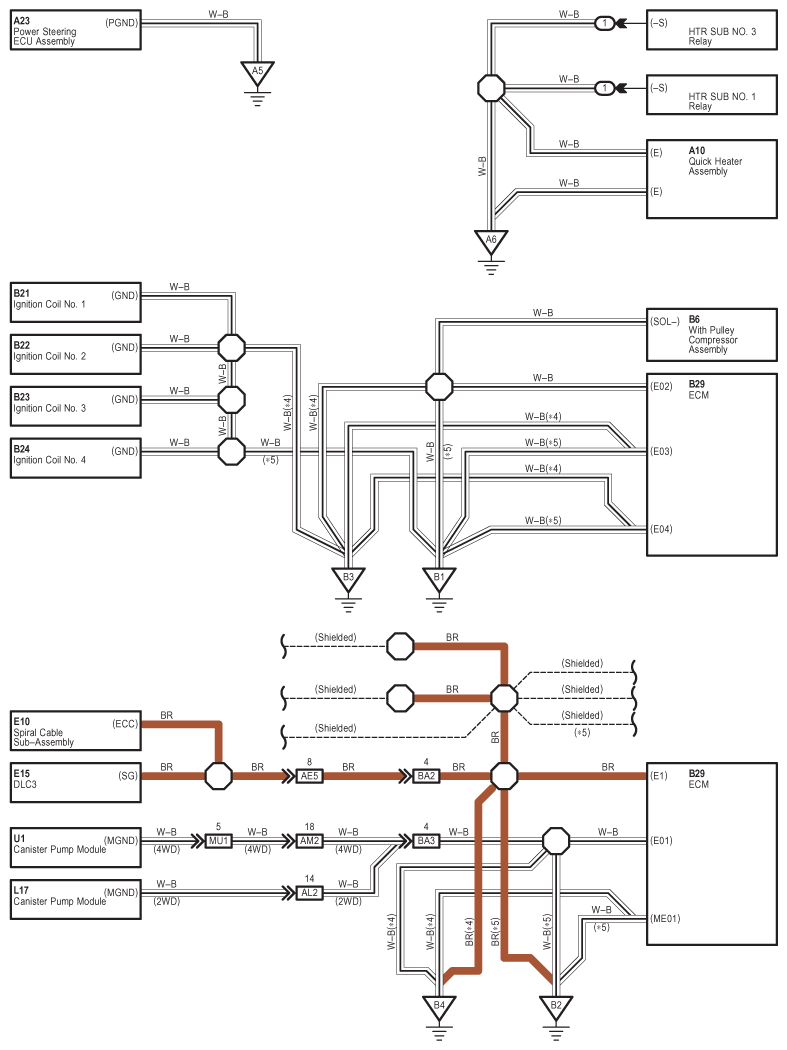

Fig 2: Example Of Ground Point System Wiring Diagram (2 Of 5)
G09105990Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

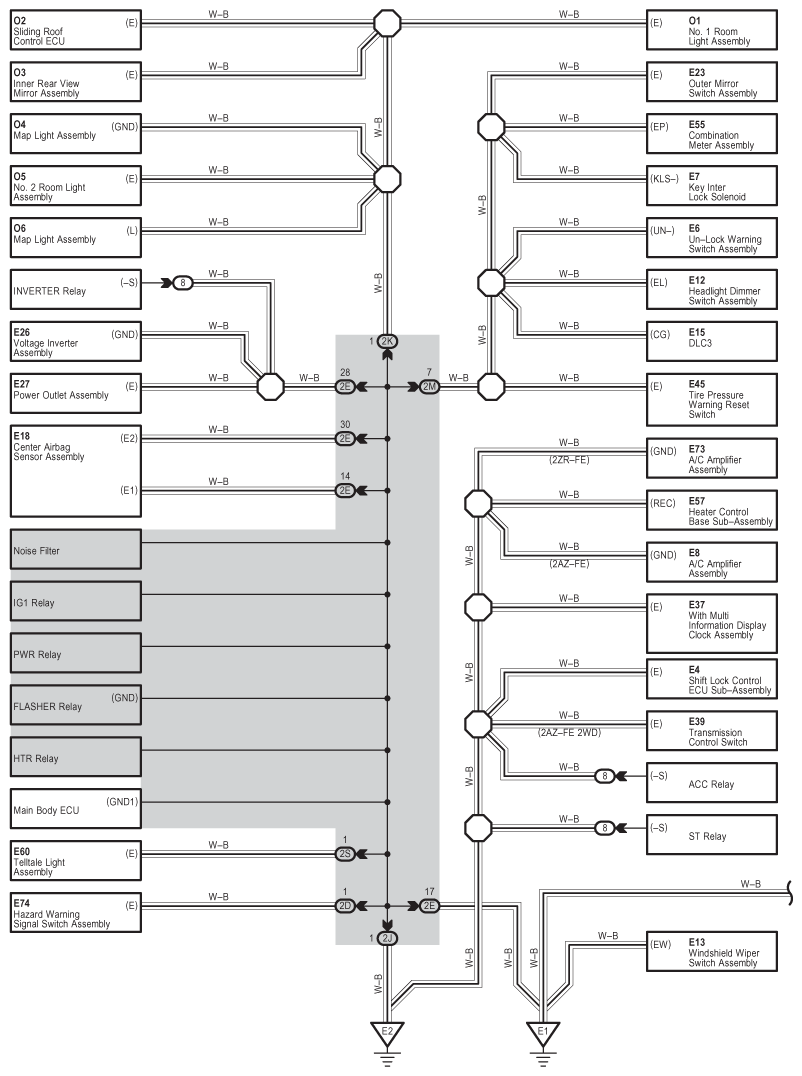

Fig 3: Example Of Ground Point System Wiring Diagram (3 Of 5)
G09105991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

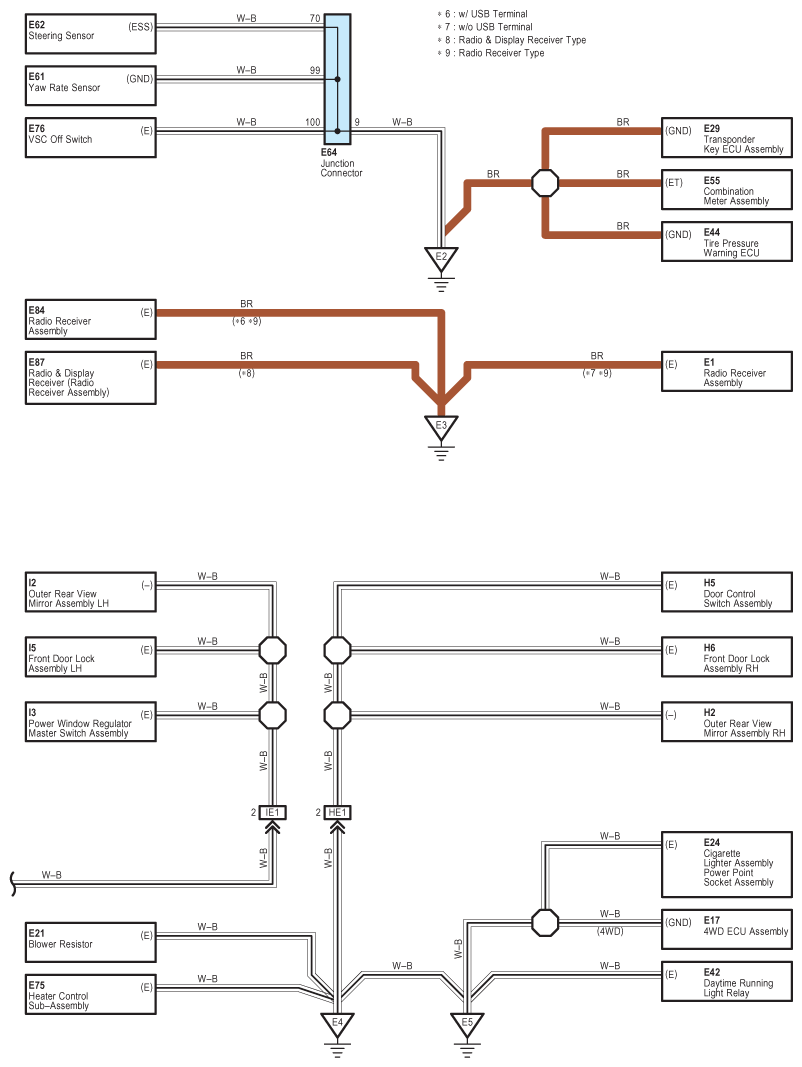

Fig 4: Example Of Ground Point System Wiring Diagram (4 Of 5)
G09105992Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

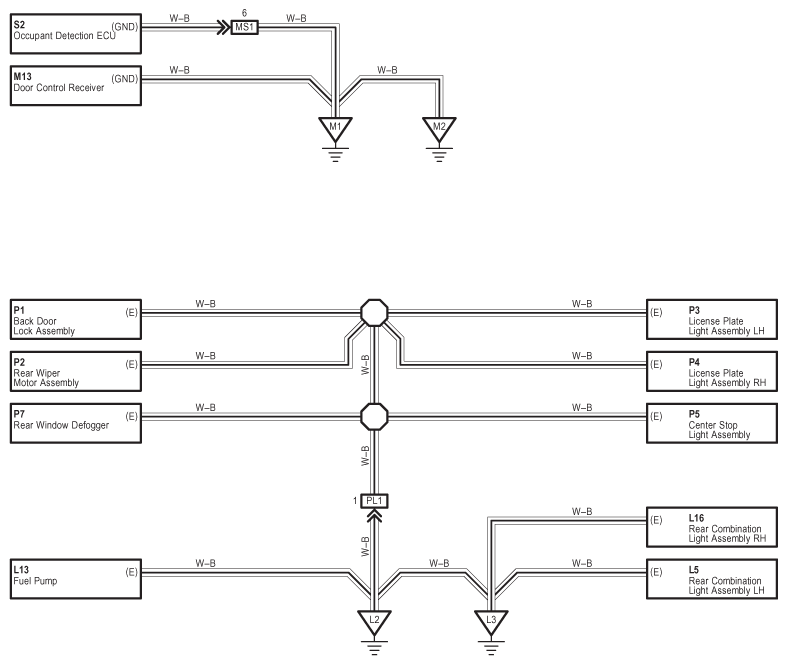

Fig 5: Example Of Ground Point System Wiring Diagram (5 Of 5)
G09105993Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
