Transmission Control Cable: Installation: Installation

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL TRANSMISSION CONTROL CABLE ASSEMBLY
    NOTE:

    Before installing the transmission control cable assembly, check that the park/neutral position switch and the shift lever are in neutral.

    1. Put the transmission control cable into the cabin and connect the transmission control cable with the 2 nuts.

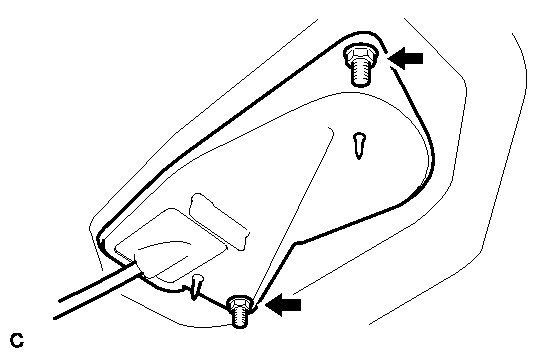

      Fig 1: Locating Transmission Control Cable Assembly And Nut
      GTY202965Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

    2. Install the transmission control cable support with the nut.

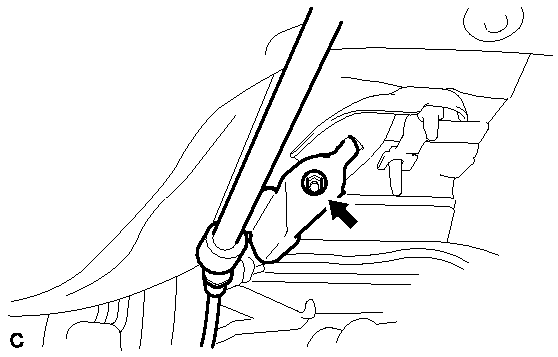

      Fig 2: Locating Nut And Rear Engine Mounting Insulator
      GTY202966Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

    3. Connect the transmission control cable to the control cable bracket.
      Fig 3: Locating Control Cable Bracket
      GTY211012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Connect the transmission control cable to the bracket with a new clip.
      Fig 4: Locating Control Shaft Lever Nut
      GTY211167Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Connect the transmission control cable assembly to the control shaft lever with the nut.

      Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

    6. Turn the nut of the transmission control cable 180° counterclockwise. While holding the nut in place, push in the stopper until the stopper clicks twice.
      Fig 5: Turning Nut Of Transmission Control Cable
      GTY189076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Install the outer part of the transmission control cable to the shift lever retainer. Check that the spring is positioned at "A" and push in the stopper.
      Fig 6: Installing Outer Part Of Transmission Control Cable To Shift Lever Retainer
      GTY203007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      If the stopper cannot be pushed in, slightly turn the nut clockwise and then push in the stopper again.

    8. Push the 2 claws together at the top of the transmission control cable lock piece. While holding the 2 claws together, push the 2 lugs on the bottom of the lock piece toward each other and upward to pull out the lock piece.
      Fig 7: Pushing Claws Of Transmission Control Cable Lock Piece
      GTY186788Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    9. Install the cable end to the shift lever assembly.
      Fig 8: Identifying Lock Piece
      GTY220662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Check that the lock piece is pulled up.
      • Install the cable end all the way to the base of the pin.
    10. Push the lock piece into the adjuster case.
      Fig 9: Pushing Lock Piece Into Adjuster Case
      GTY203008Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Securely push in the lock piece until it locks.

  2. INSTALL BATTERY CARRIER  . Refer to INSTALLATION - Step 62
  3. INSTALL BATTERY  . Refer to INSTALLATION - Step 63
  4. INSTALL AIR CLEANER CASE  . Refer to INSTALLATION - Step 64
  5. INSTALL AIR CLEANER CAP SUB-ASSEMBLY  . Refer to INSTALLATION - Step 2
  6. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY  . Refer to INSTALLATION - Step 93
  7. INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL  . Refer to INSTALLATION - Step 16
  8. INSTALL FRONT NO. 1 CONSOLE BOX INSERT  . Refer to INSTALLATION - Step 17
  9. INSTALL FRONT NO. 2 CONSOLE BOX INSERT  . Refer to INSTALLATION - Step 18
  10. INSTALL FRONT CONSOLE BOX ASSEMBLY  . Refer to INSTALLATION - Step 2
  11. INSTALL CONSOLE BOX CARPET
  12. INSTALL NO. 2 SWITCH HOLE BASE  . Refer to INSTALLATION - Step 22
  13. INSTALL FRONT UPPER CONSOLE BOX  . Refer to INSTALLATION - Step 23
  14. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY  . Refer to INSTALLATION - Step 6
  15. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY  . Refer to INSTALLATION - Step 8
  16. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY  . Refer to INSTALLATION - Step 17
  17. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL  . Refer to INSTALLATION - Step 77
  18. INSPECT SHIFT LEVER POSITION  See step  1
  19. ADJUST SHIFT LEVER POSITION  See step  2
