Terminals Of ECM

WARNING: This page is about a different variant/trim than selected.
  1. ECM

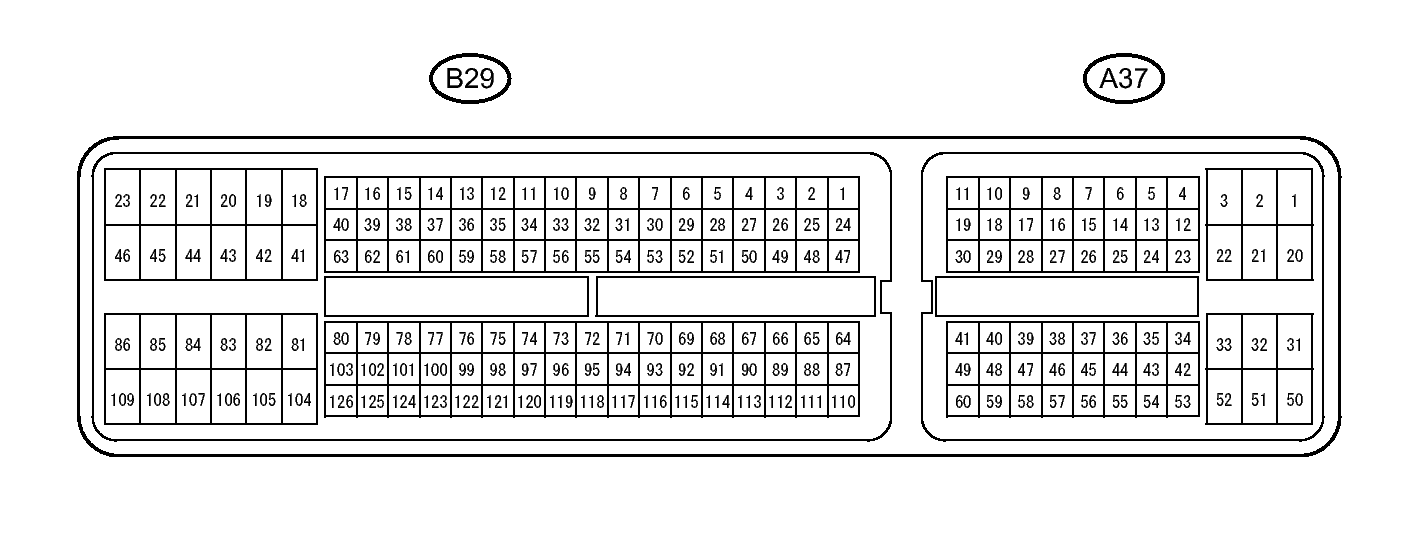

    Fig 1: ECM Connector Terminal Identification
    GTY215853Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    Each ECM terminal's standard voltage is shown in the table below.

    In the table, first follow the information under "Condition". Look under "Terminal No. (Symbols)" for the terminals to inspected. The standard voltage between the terminals is shown under "Specified Condition".

    Use the illustration above as a reference for the ECM terminals.

    Terminals No. (Symbols) Wiring Color Terminal Description Condition Specified Condition
    B29-56 (D) - B29-104 (E1) P - BR D shift position switch signal Ignition switch ON and shift lever D and 3 position 11 to 14 V
    Ignition switch ON and shift lever except D and 3 position Below 1 V
    B29-53 (R) - B29-104 (E1) R - BR R shift position switch signal Ignition switch ON and shift lever R position 11 to 14 V
    Ignition switch ON and shift lever except R position Below 1 V
    A37-8 (SPD) - B29-104 (E1) V - BR Speed signal Vehicle speed 20 km/h (12mph) Pulse generation
    (See waveform 7)
    A37-36 (STP) - B29-104 (E1) L - BR Stop light switch signal Brake pedal is depressed 7.5 to 14 V
    Brake pedal is released Below 1.5 V
    A37-26 (3) - B29-104 (E1) W - BR 3 shift position switch signal Ignition switch ON and shift lever 3 position 11 to 14 V
    Ignition switch ON and shift lever except 3 position Below 1 V
    B29-55 (2) - B29-104 (E1) BR - BR 2 shift position switch signal Ignition switch ON and shift lever 2 position 11 to 14 V
    Ignition switch ON and shift lever except 2 position Below 1 V
    B29-74 (L) - B29-104 (E1) GR - BR L shift position switch signal Ignition switch ON and shift lever L position 11 to 14 V
    Ignition switch ON and shift lever except L position Below 1 V
    B29-73 (P) - B29-104 (E1) V - BR P shift position switch signal Ignition switch ON and shift lever P position 11 to 14 V
    Ignition switch ON and shift lever except P position Below 1 V
    B29-54 (N) - B29-104 (E1) B - BR N shift position switch signal Ignition switch ON and shift lever N position 11 to 14 V
    Ignition switch ON and shift lever except N position Below 1 V
    B29-52 (NSW) - B29-104 (E1) W - BR Park neutral switch signal Ignition switch ON and shift lever P and N position Below 2 V
    Ignition switch ON and shift lever except P and N position 11 to 14 V
    B29-79 (DSL) - B29-104 (E1) R - BR DSL solenoid signal Vehicle speed 65 km/h (40mph), lock-up (ON to OFF) Pulse generation
    (See waveform 2)
    B29-78 (S4) - B29-104 (E1) W - BR S4 solenoid signal Ignition switch ON Below 1 V
    4th gear 11 to 14 V
    Except 4th gear Below 1 V
    B29-58 (SL2+) - B29-59 (SL2-) GR - L SL2 solenoid signal Engine idle speed Pulse generation
    (See waveform 3)
    Ignition switch ON Below 1 V
    1st or 2nd gear 11 to 14 V
    3rd or O/D gear Below 1 V
    B29-57 (SL1+) - B29-77 (SL1-) G - P-G SL1 solenoid signal Engine idle speed Pulse generation
    (See waveform 4)
    Ignition switch ON 11 to 14 V
    1st gear 11 to 14 V
    Except 1st gear Below 1 V
    B29-101 (NC+) - B29-102 (NC-) R - W Speed sensor (NC) signal Vehicle speed 30 km/h (19mph): (3rd gear)
    Engine speed 1, 400 rpm    		 Pulse generation
    (See waveform 5)
    B29-125 (NT+) - B29-124 (NT-) B - Y Speed sensor (NT) signal Vehicle speed 20 km/h (12mph) Pulse generation
    (See waveform 6)
    B29-76 (SLT+) - B29-75 (SLT-) LG - V SLT solenoid signal Engine idle speed Pulse generation
    (See waveform 1)
    B29-72 (THO1) - B29-95 (ETHO) Y - P ATF temperature sensor signal ATF temperature: 115°C (239°F) or more Below 1.5 V
    1. Waveform 1

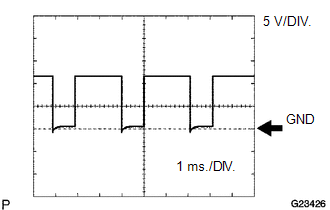

      Fig 2: Identifying Waveform 1
      GTY155131Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      REFERENCE:

      Terminal SLT+ - SLT-
      Tool setting 5 V/DIV., 1ms./DIV.
      Vehicle condition Engine idle speed
    2. Waveform 2

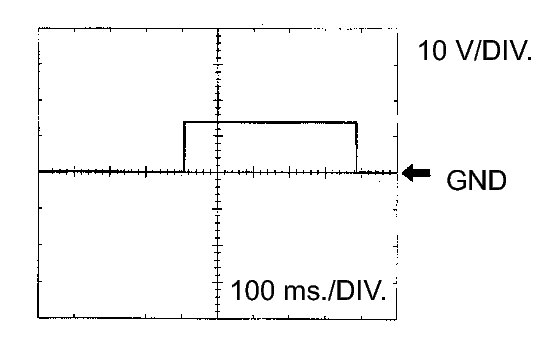

      Fig 3: Identifying Waveform 2
      GTY218189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      REFERENCE:

      Terminal DSL - E1
      Tool setting 10 V/DIV., 100ms./DIV.
      Vehicle condition Vehicle speed 65 km/h (40 mph), lock-up (ON to OFF)
    3. Waveform 3
      Fig 4: Identifying Waveform 3
      GTY155131Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      REFERENCE:

      Terminal SL2+ - SL2-
      Tool setting 5 V/DIV., 1ms./DIV.
      Vehicle condition Engine idle speed
    4. Waveform 4
      Fig 5: Identifying Waveform 4
      GTY155131Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      REFERENCE:

      Terminal SL1+ - SL1-
      Tool setting 5 V/DIV., 1ms./DIV.
      Vehicle condition Engine idle speed
    5. Waveform 5

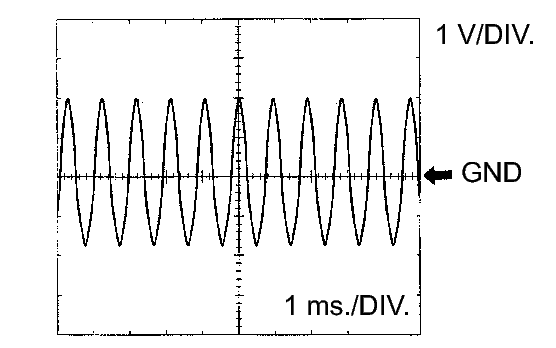

      Fig 6: Identifying Waveform 5
      GTY163169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      REFERENCE:

      Terminal NC+ - NC-
      Tool setting 1 V/DIV., 1ms./DIV.
      Vehicle condition Vehicle speed 30 km/h (19 mph): (3rd gear)
      Engine speed 1.400 rpm
    6. Waveform 6

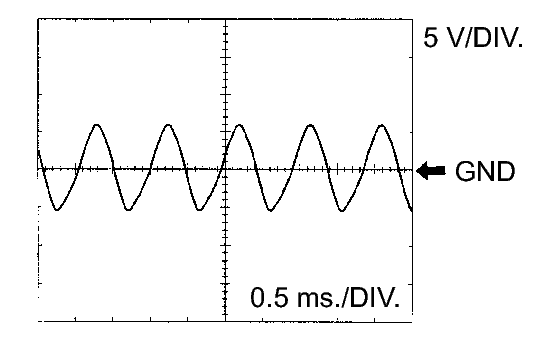

      Fig 7: Identifying Waveform 6
      GTY164186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      REFERENCE:

      Terminal NT+ - NT-
      Tool setting 5 V/DIV., 0.5ms./DIV.
      Vehicle condition Vehicle speed 20 km/h (12 mph)
    7. Waveform 7

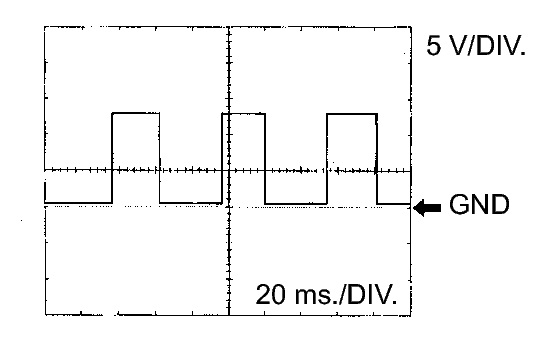

      Fig 8: Identifying Waveform 7
      GTY218868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      REFERENCE:

      Terminal SPD - E1
      Tool setting 5 V/DIV., 20ms./DIV.
      Vehicle condition Vehicle speed 20 km/h (12 mph)

      HINT:

      Depending on the vehicle, the output waveform voltage, influenced by optionally installed systems, may become 5V.
