Back-up Power Source Circuit: Procedure

  1. CHECK HARNESS AND CONNECTOR (AIR CONDITIONING AMPLIFIER - BODY GROUND)
    1. Disconnect the A/C amplifier connector.

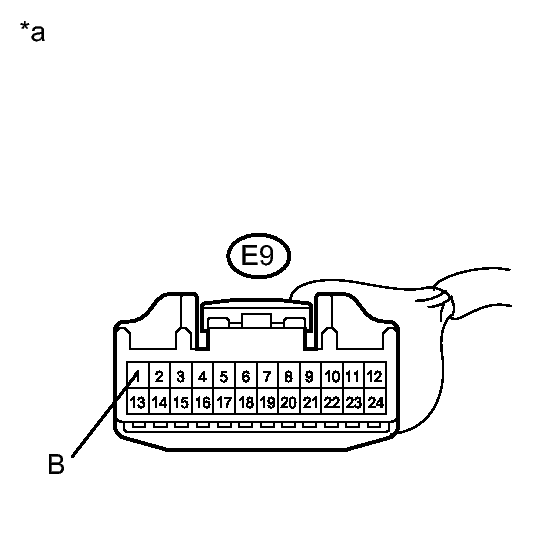

      Fig 1: Checking Harness And E9 Connector (Air Conditioning Amplifier - Body Ground)
      GTY290314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      E9-1 (B) - Body ground Always 11 to 14 V
      TEXT IN ILLUSTRATION

      *a Front view of wire harness connector
      (to A/C Amplifier)

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → See step   2

  2. PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to  PROBLEM SYMPTOMS TABLE
