DTC B1479: Flow Sensor Circuit: Wiring Diagram

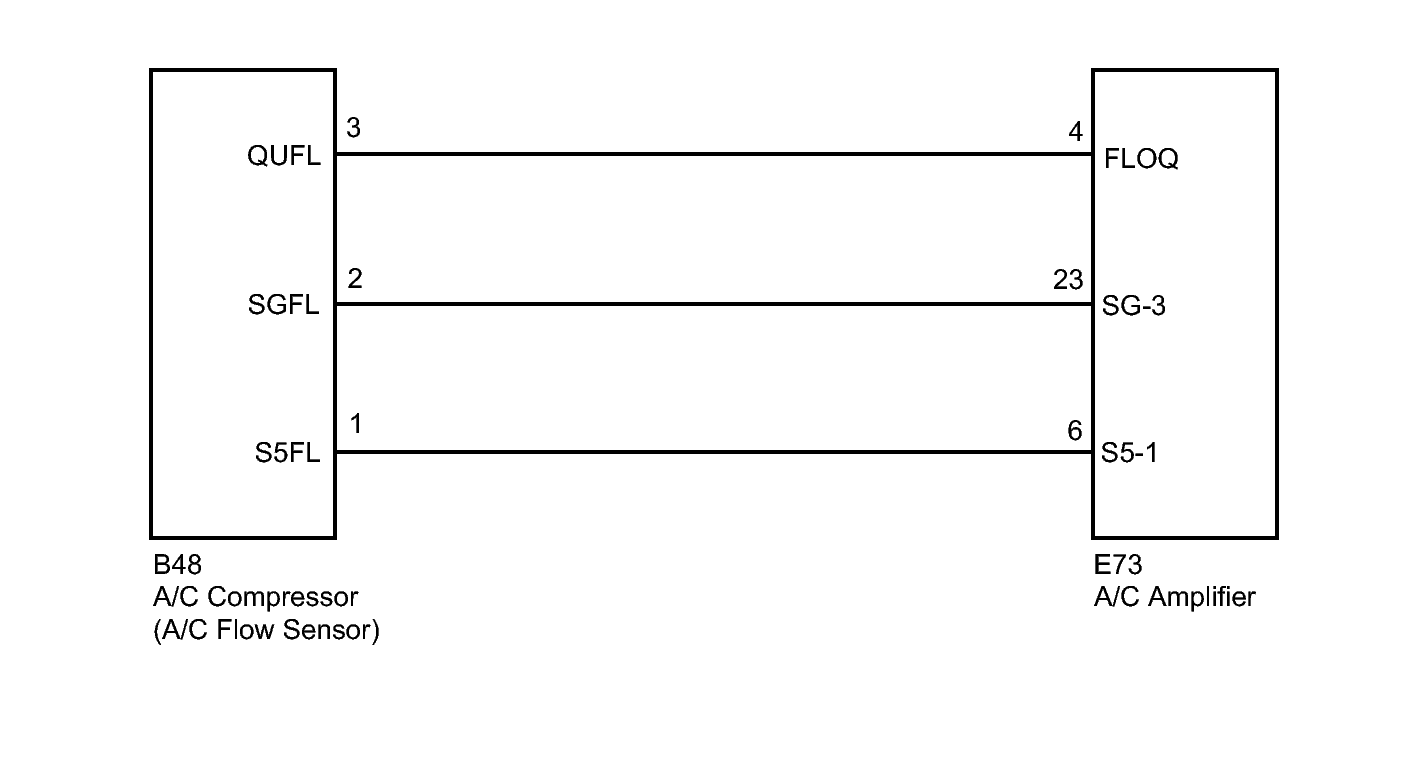

Fig 1: Identifying A/C Flow Sensor Circuit
GTY365030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
