Child Restraint Seat Tether Anchor: Installation: Installation

  1. INSTALL CHILD RESTRAINT SEAT TETHER ANCHOR
    1. Install the 3 child restraint seat tether anchors with the 3 bolts.

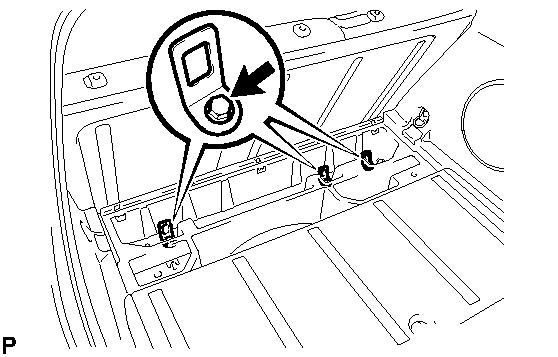

      Fig 1: Identifying Child Restraint Seat Tether Anchors And Bolts
      GTY240976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 20 N*m (200 kgf*cm, 14 ft.*lbf)

  2. INSTALL NO. 2 DECK BOARD  . Refer to INSTALLATION - Step 44
