Transponder Key Amplifier: Components: Illustration

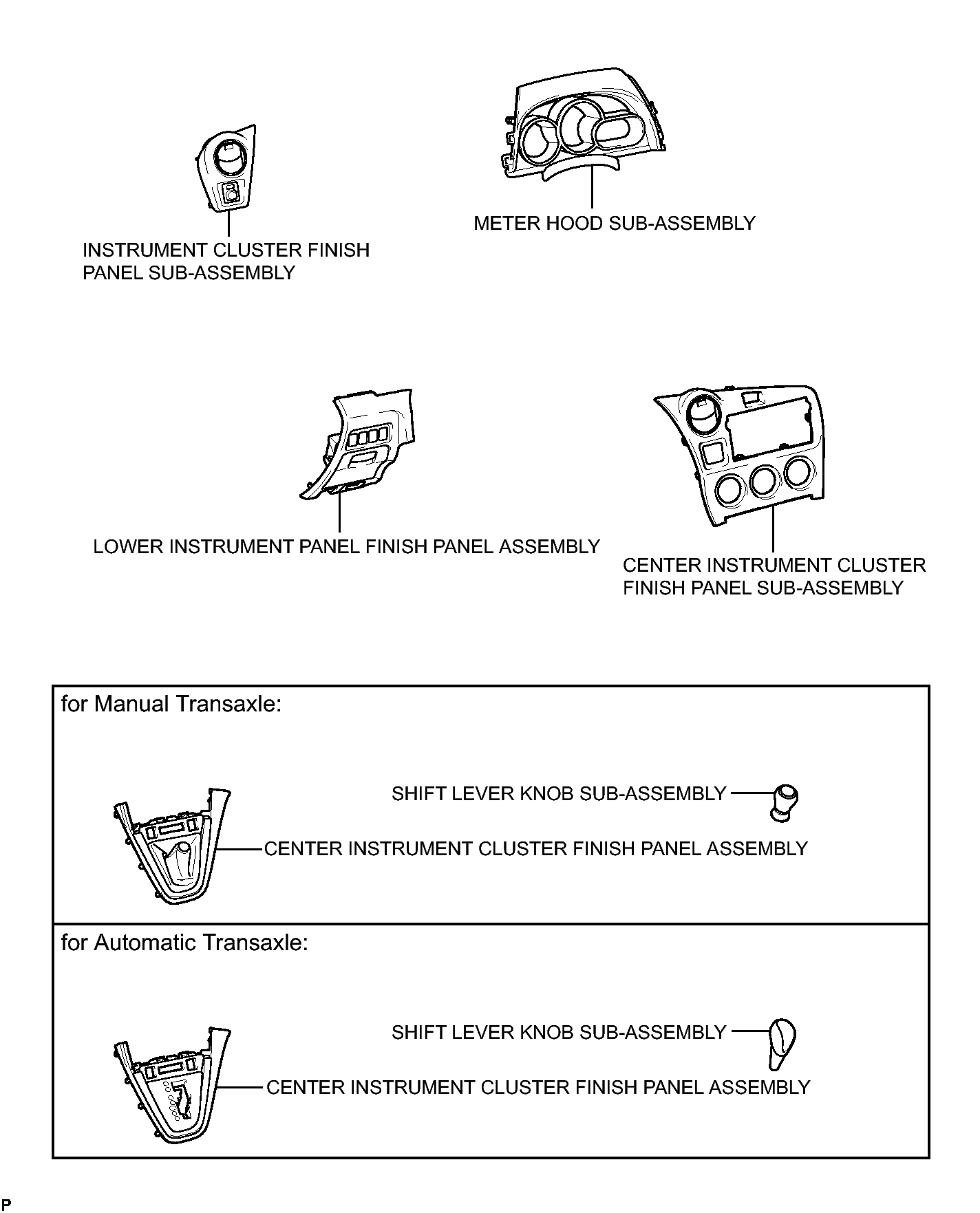

Fig 1: Identifying Transponder Key Amplifier Replacement Components (1 Of 3)
GTY293546Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

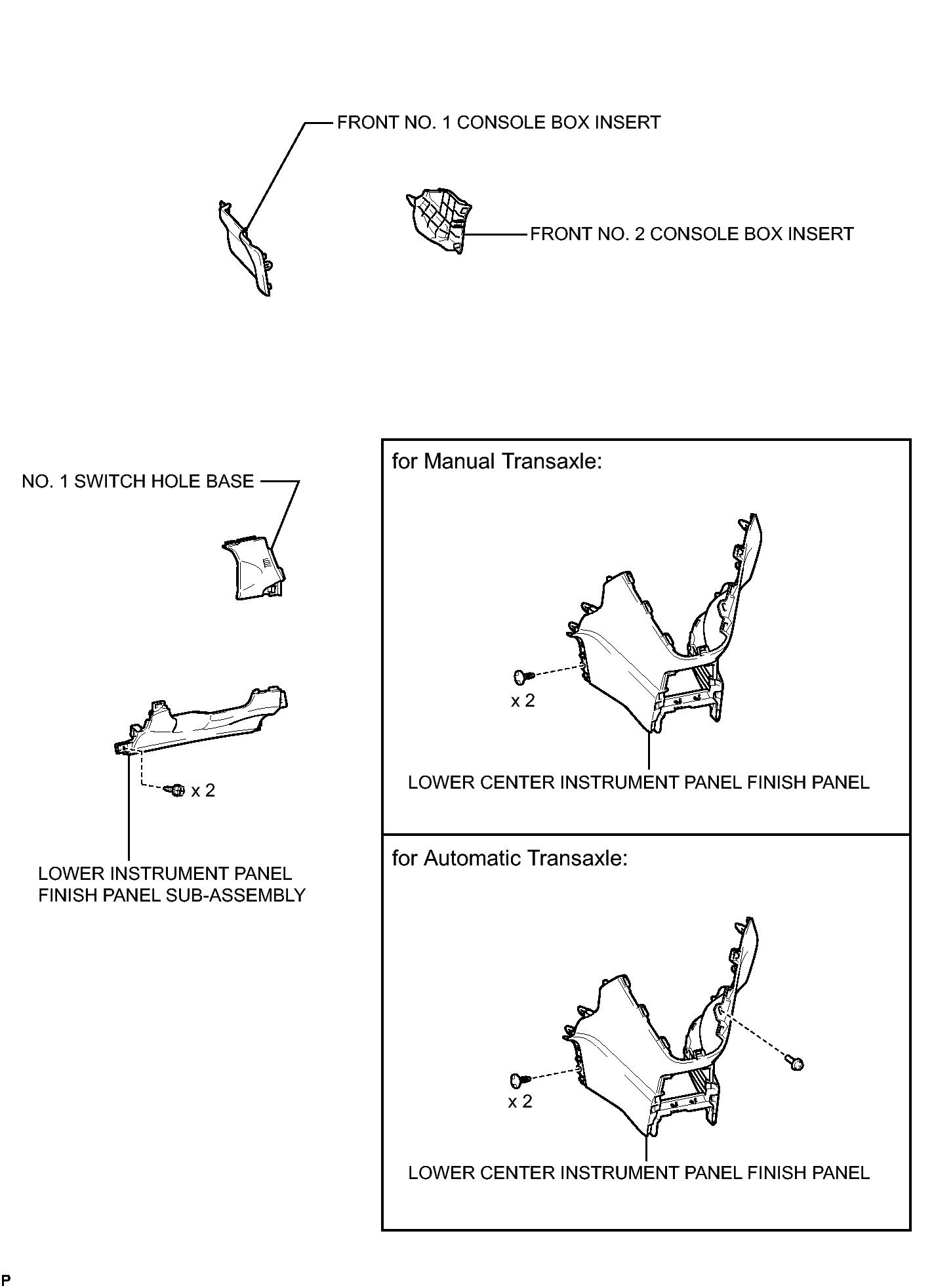

Fig 1: Identifying Transponder Key Amplifier Replacement Components (2 Of 3)
GTY241490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

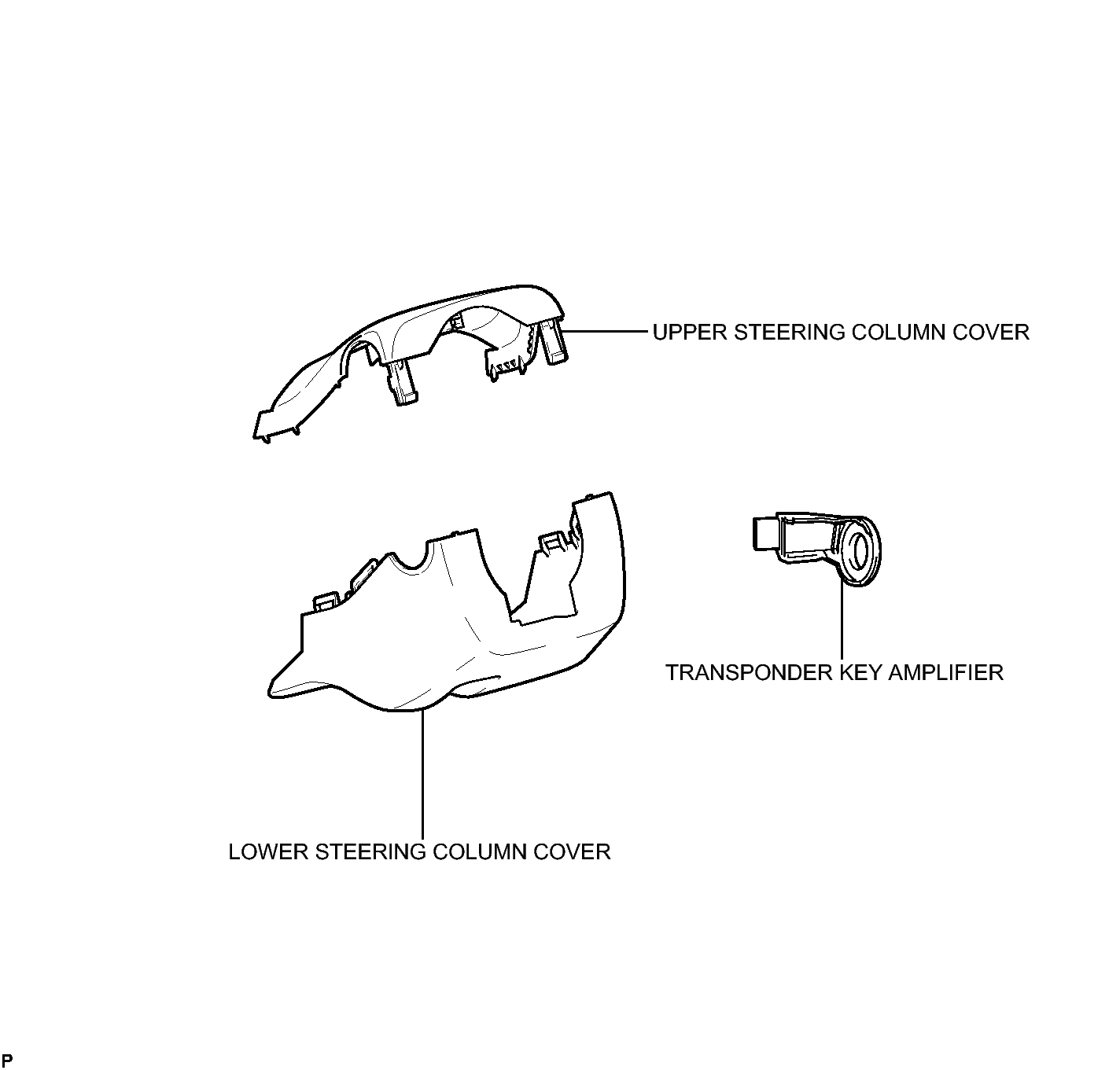

Fig 1: Identifying Transponder Key Amplifier Replacement Components (3 Of 3)
GTY240978Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
