Front Wiper Motor: Components: Illustration

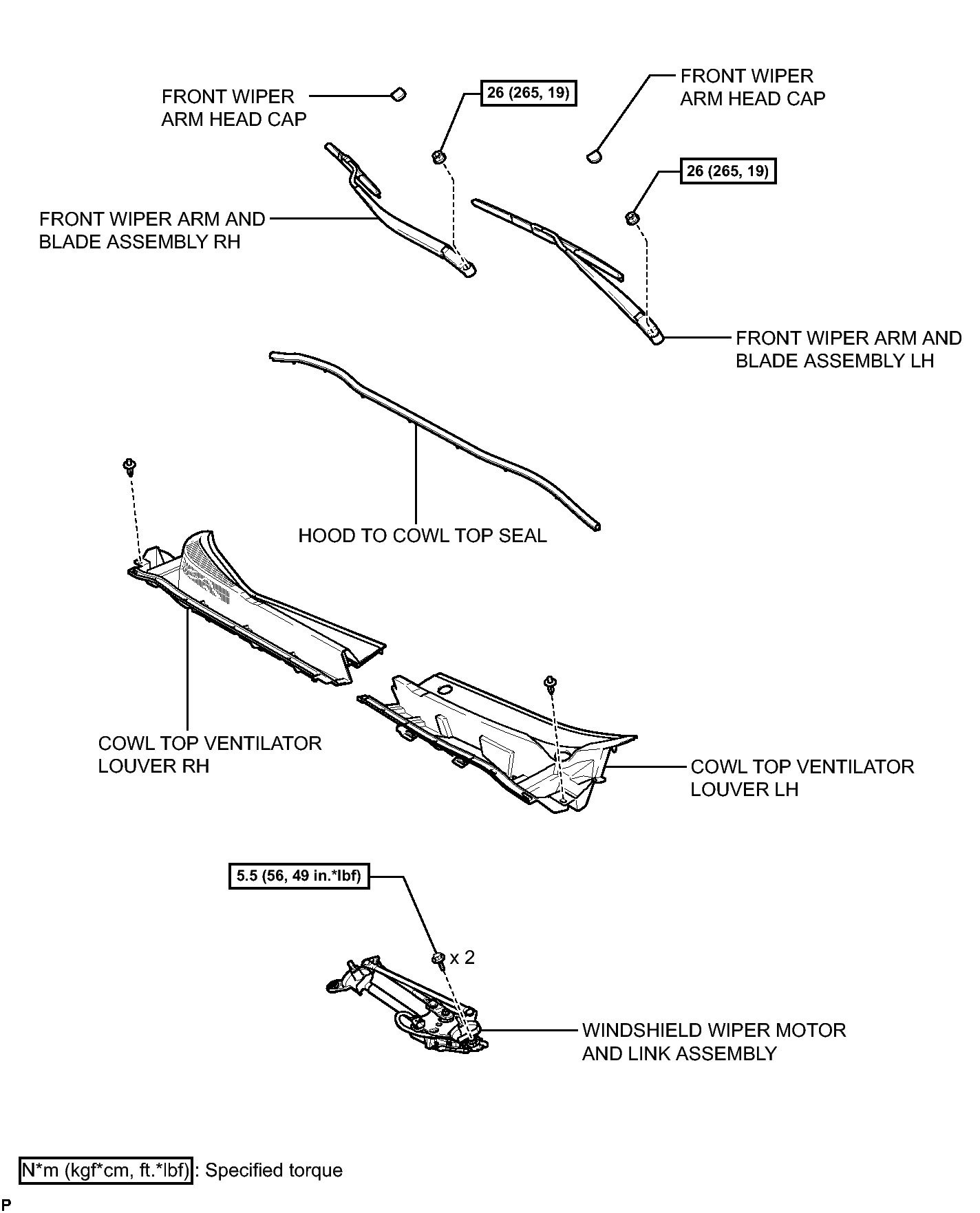

Fig 1: Identifying Front Wiper Motor Replacement Components With Torque Specifications (1 Of 2)
GTY246781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

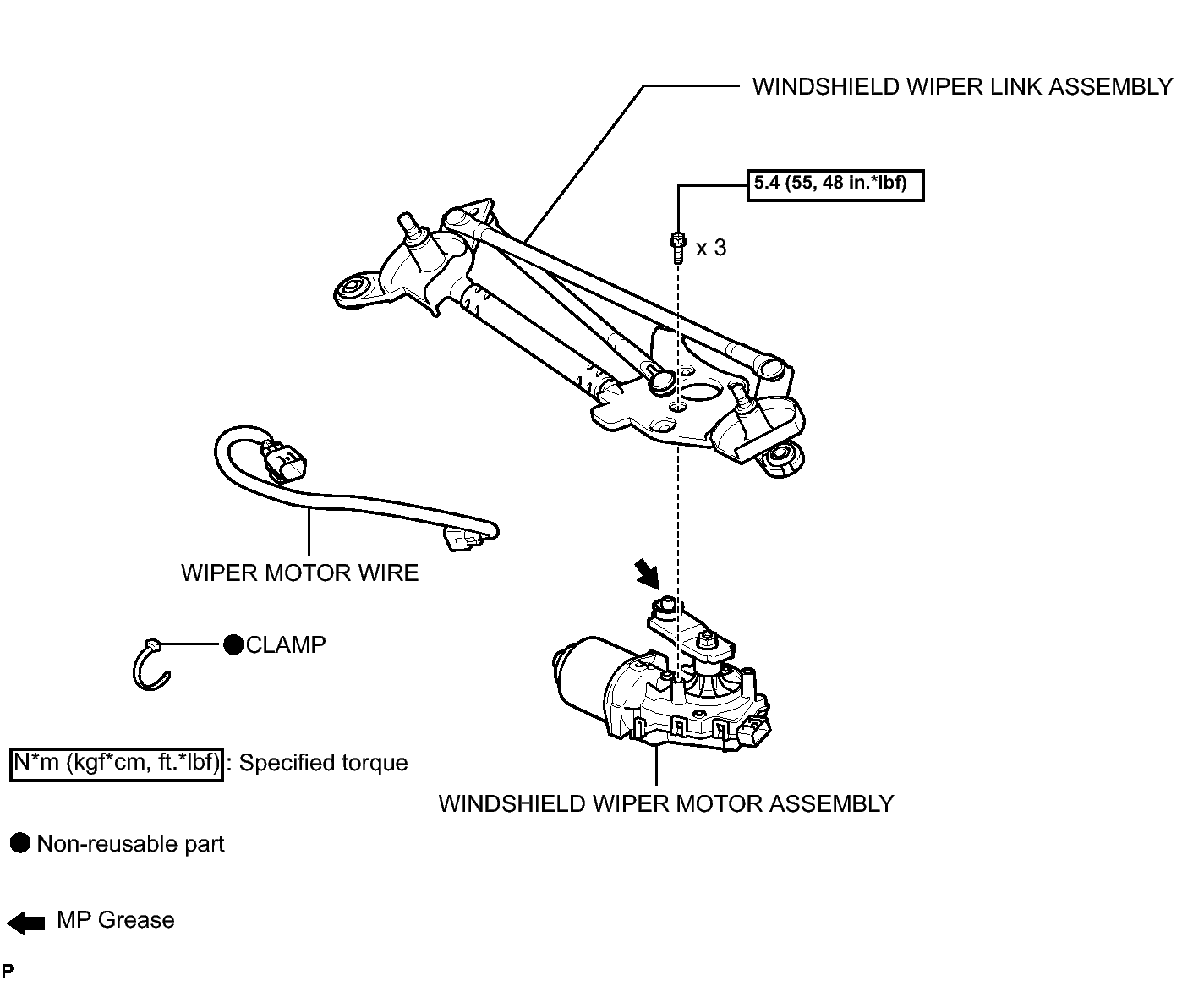

Fig 1: Identifying Front Wiper Motor Replacement Components With Torque Specifications (2 Of 2)
GTY291721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
