Relay Block No. 8 - Instrument Panel Center

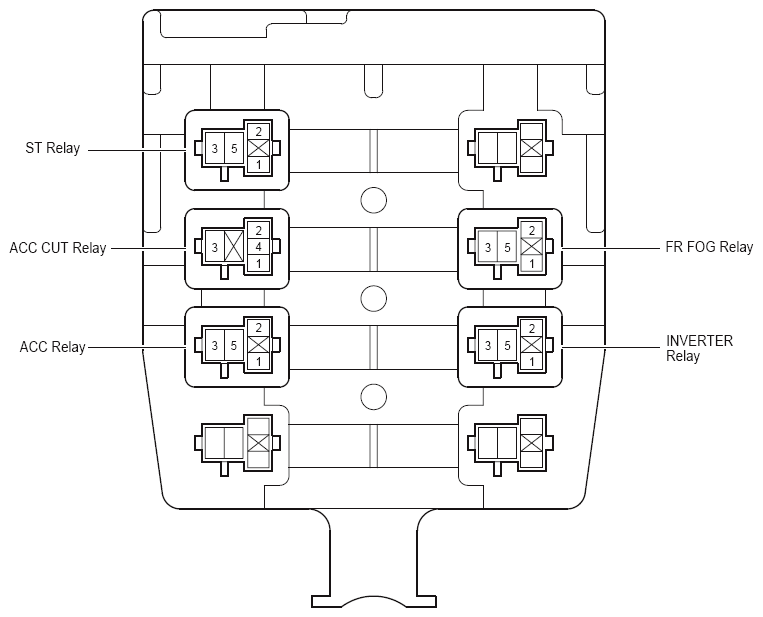

Fig 1: R/B No. 8 Relay Location
G09105811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
R/B No. 8 Relay Identification

RELAY DESCRIPTION
ACC Relay
ACC CUT Relay
ST Relay
FR Fog Relay
Inverter Relay
