DTC P0500: Vehicle Speed Sensor "A": Wiring Diagram

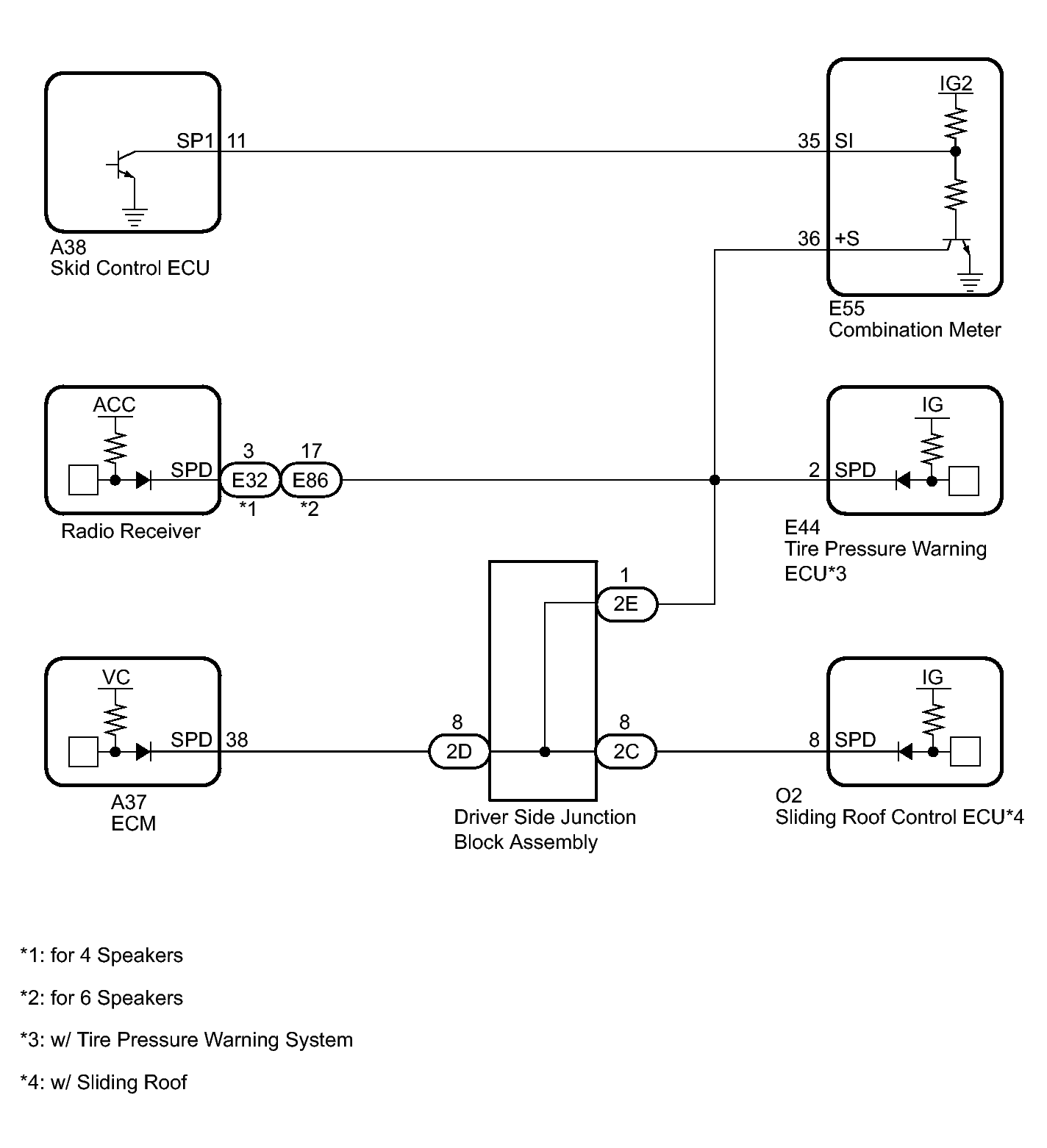

Fig 1: Vehicle Speed Signal Circuit, Radio Receiver, and Combination Meter Wiring Diagram
GTY372730Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
