DTC P0504: Brake Switch "A" / "B" Correlation: Procedure

1. Disconnect the stop light switch connector.

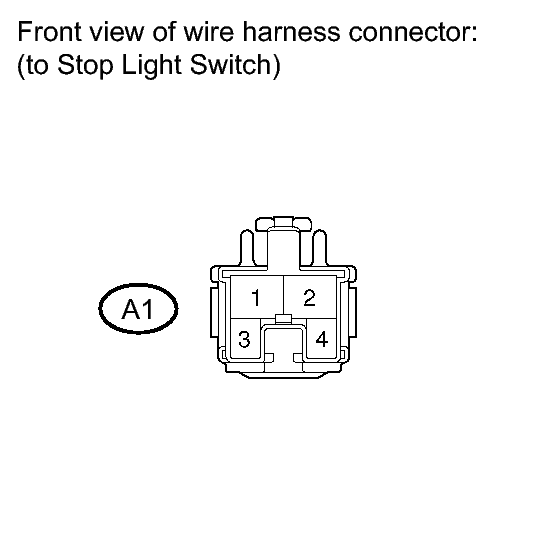

   Fig 1: Identifying A1 Stop Light Switch Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   A1-2 - Body ground	Always	11 to 14 V
   A1-3 - Body ground	Ignition switch ON	11 to 14 V

3. Reconnect the stop light switch connector.

NG → See step   4

OK: Go to next step

1. Inspect the stop light switch. Refer to INSPECTION .

NG → See step   5

OK: Go to next step

1. Disconnect the ECM connector.
   Fig 2: Checking Brake Pedal

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Turn the ignition switch to ON.
3. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   A37-35 (ST1-) - Body ground	Brake pedal released	7.5 to 14 V
   	Brake pedal depressed	Below 1.5 V
   A37-36 (STP) - Body ground	Brake pedal released	Below 1.5 V
   	Brake pedal depressed	7.5 to 14 V

4. Reconnect the ECM connector.

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR (STOP LIGHT SWITCH - ECM)

OK → See step   6

1. Remove the STOP and IGN fuses from the driver side junction block.

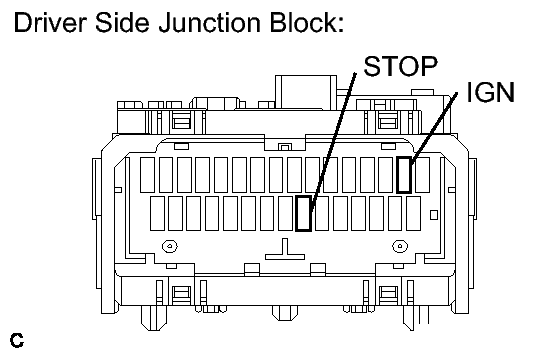

   Fig 3: Identifying STOP And IGN Fuses

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   STOP fuse	Always	Below 1 Ω
   IGN fuse

3. Reinstall the STOP and IGN fuses.

NG → CHECK FOR SHORTS IN ALL HARNESSES AND CONNECTORS CONNECTED TO FUSE AND REPLACE FUSE

OK → REPAIR OR REPLACE HARNESS OR CONNECTOR (BATTERY - STOP LIGHT SWITCH - INTEGRATION RELAY)
