Back-Up Light Switch: Installation: Installation

WARNING: This page is about a different variant/trim than selected.

INSTALL BACK-UP LIGHT SWITCH ASSEMBLY
1. Using SST, install the back-up light switch and a new gasket to the transaxle case.

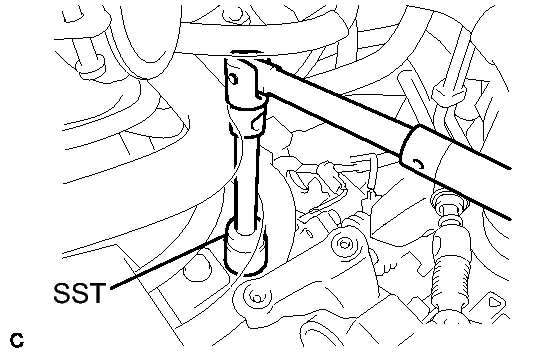

  Fig 1: Removing Back-Up Light Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - SST: 09817-16011
  Torque: 40 N*m (410 kgf*cm, 30 ft.*lbf)
2. Install the 2 clamps.

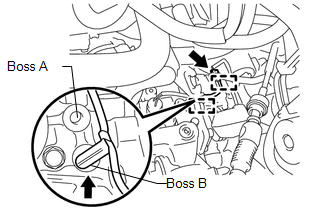

  Fig 2: Locating Back-Up Light Switch Connector And Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Be sure to use boss B.
3. Connect the back-up light switch connector.
CONNECT TRANSMISSION CONTROL SHIFT CABLE
1. Connect the transmission control shift cable with the clip*1.

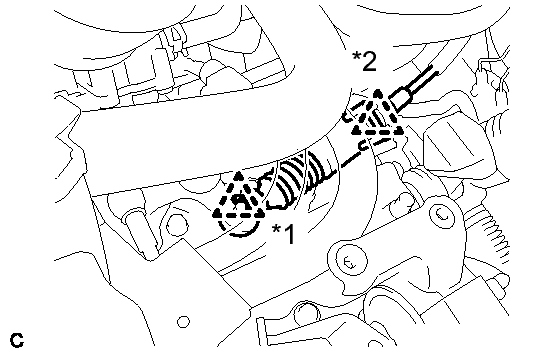

  Fig 3: Identifying Transmission Control Shift Cable Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the transmission control shift cable with a new clip*2.
INSTALL AIR CLEANER CASE . Refer to INSTALLATION - Step 62
INSTALL AIR CLEANER CAP SUB-ASSEMBLY . Refer to INSTALLATION - Step 2
INSTALL NO. 2 CYLINDER HEAD COVER . Refer to INSTALLATION - Step 85
