Manual Transaxle Assembly: Components: Illustration
WARNING:
This page is about a different variant/trim than selected.

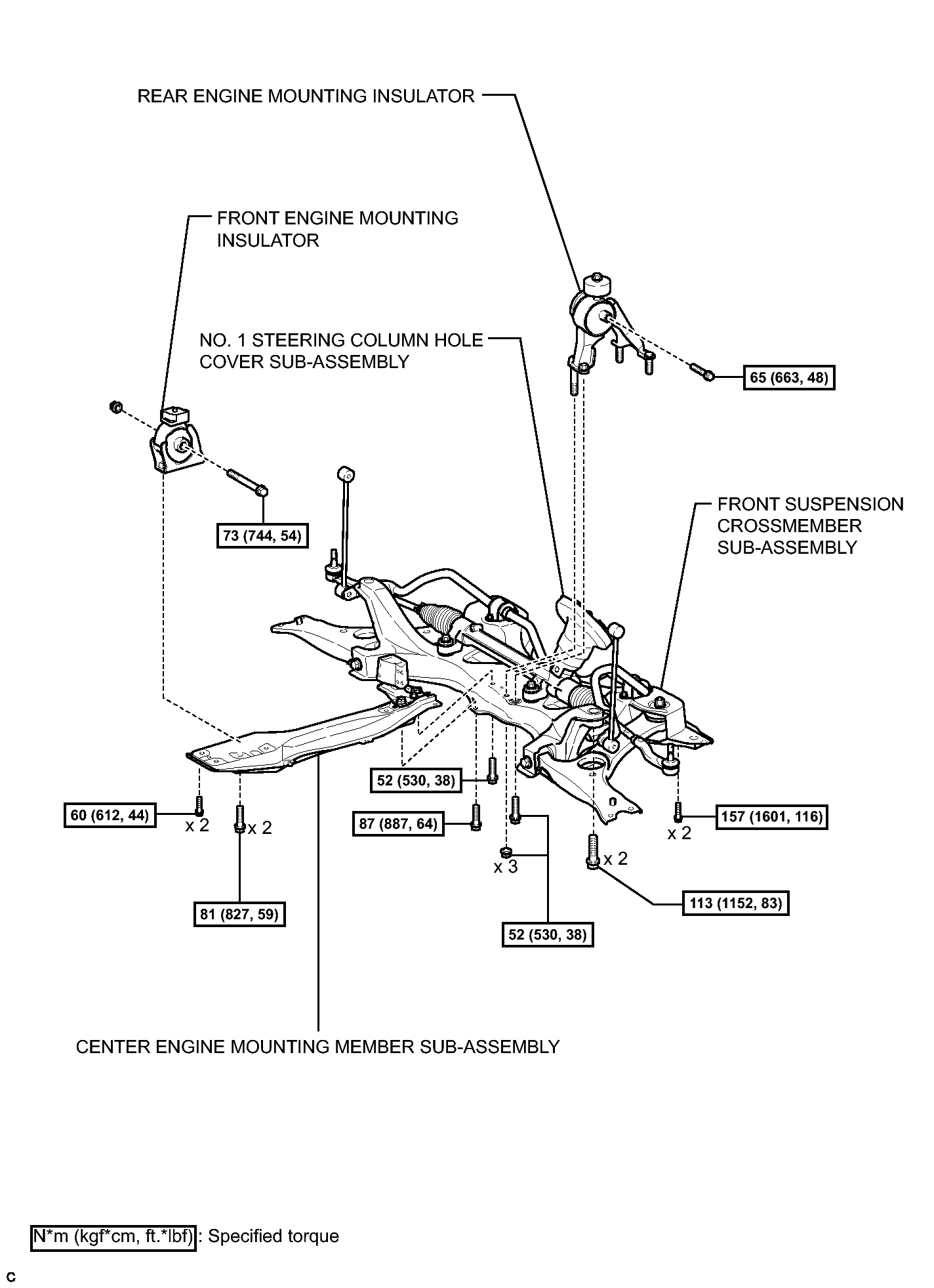

Fig 1: Manual Transaxle Assembly Replacement Components With Torque Specifications (1 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

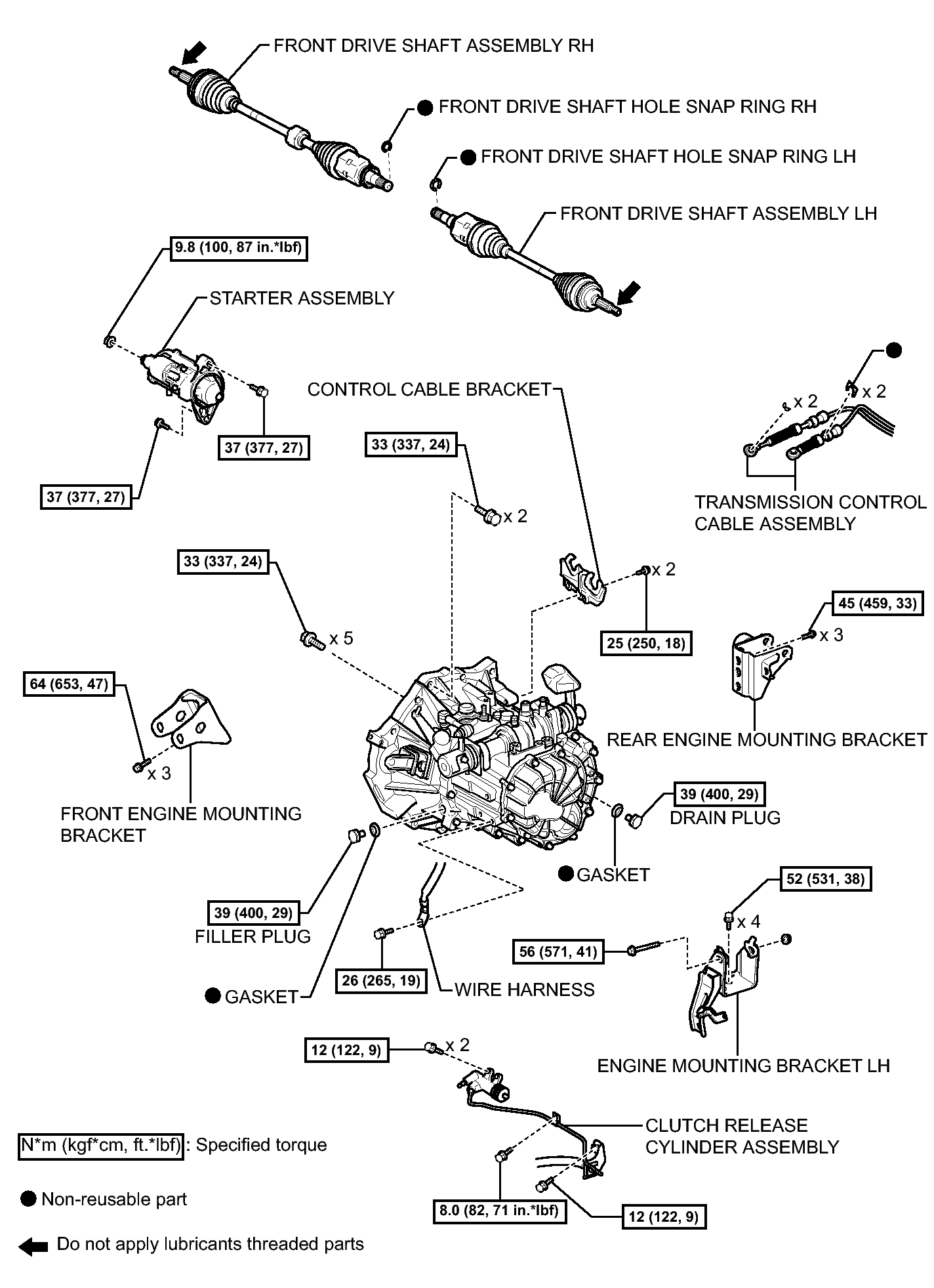

Fig 1: Identifying Manual Transaxle Assembly Replacement Components With Torque Specifications (2 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

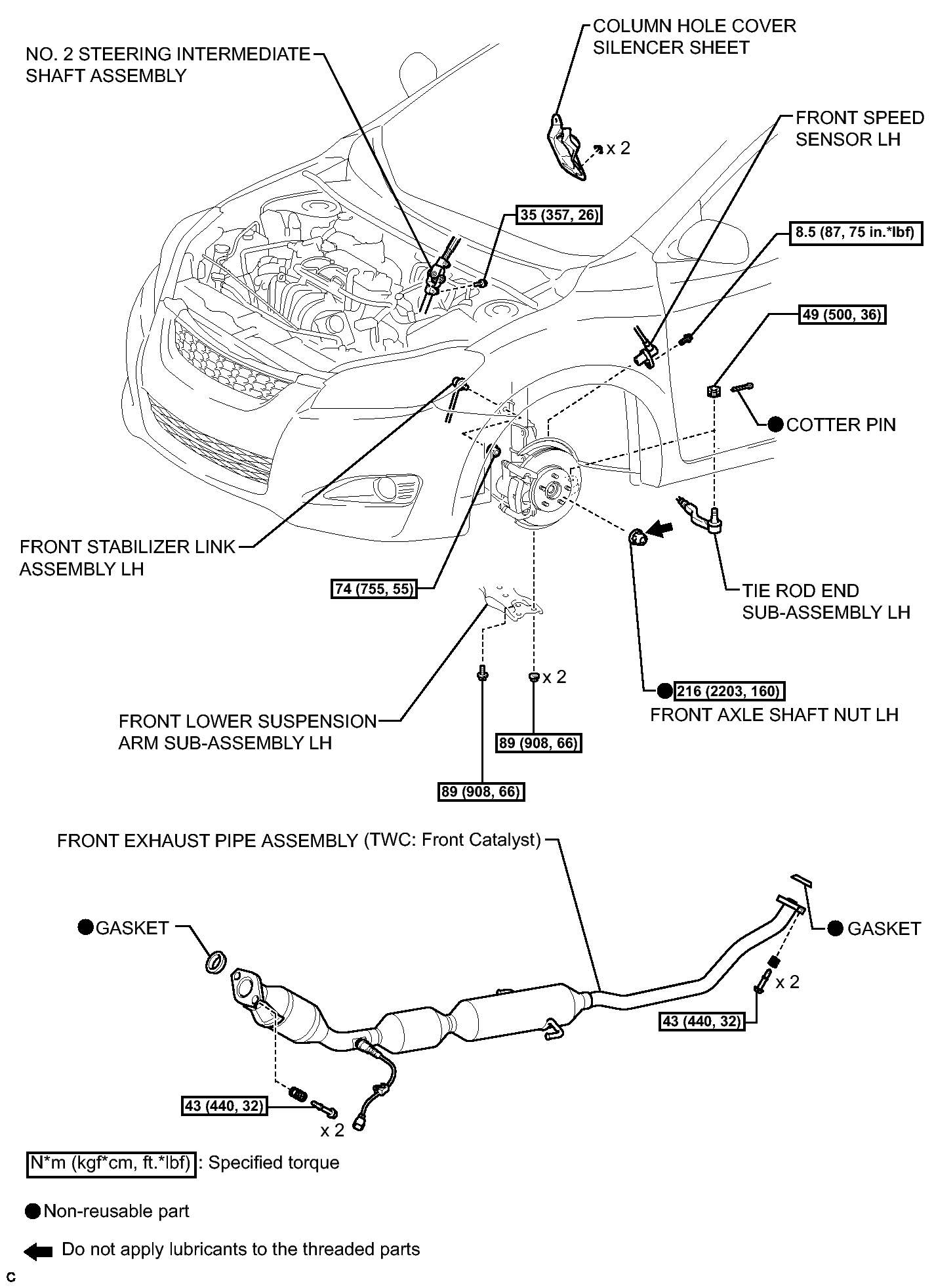

Fig 1: Manual Transaxle Assembly Replacement Components With Torque Specifications (3 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

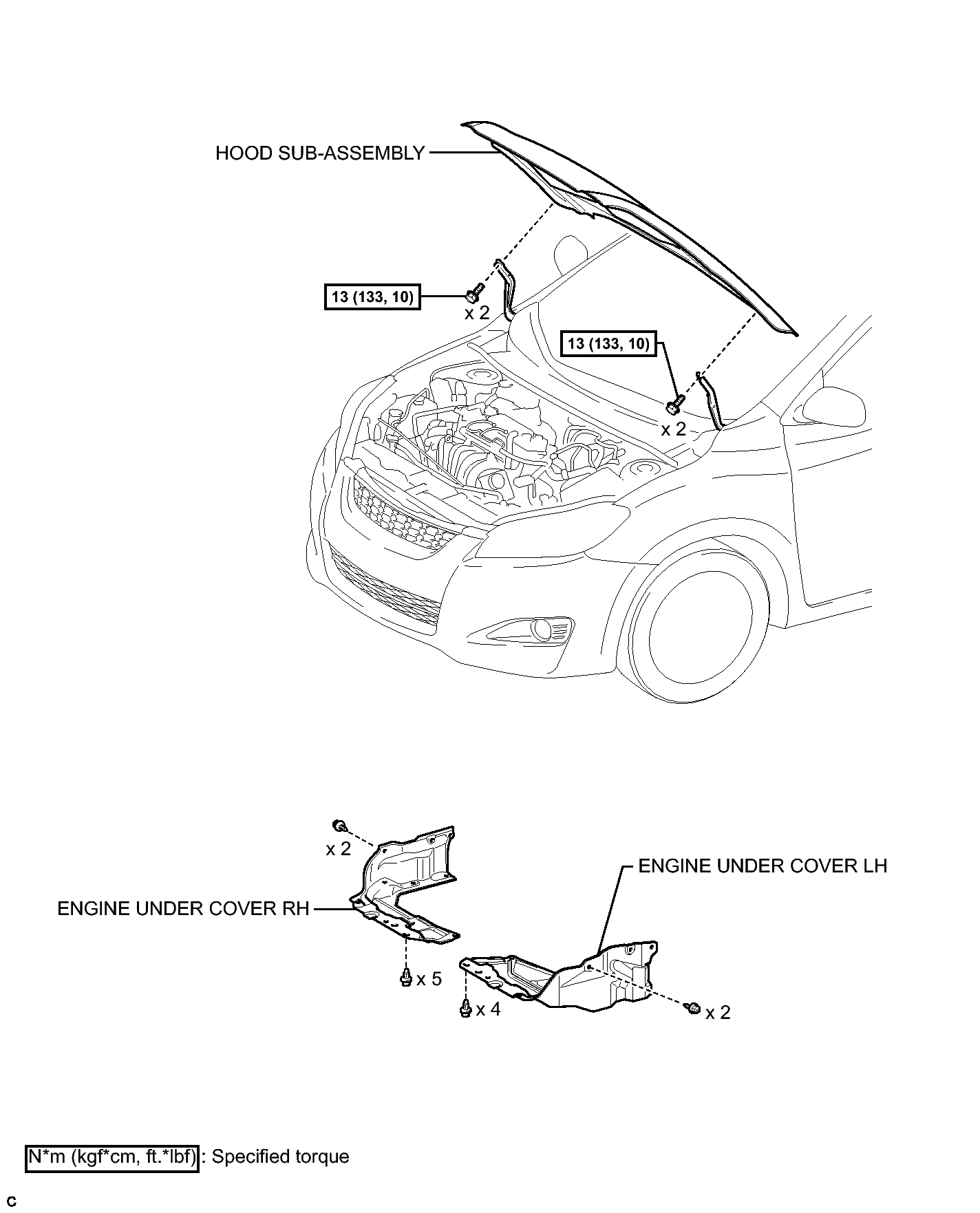

Fig 1: Identifying Manual Transaxle Assembly Replacement Components With Torque Specifications (4 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Identifying Manual Transaxle Assembly Replacement Components With Torque Specifications (5 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Identifying Manual Transaxle Assembly Replacement Components With Torque Specifications (6 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
