Manual Transaxle Oil: Replacement: Replacement

WARNING: This page is about a different variant/trim than selected.

REMOVE ENGINE UNDER COVER LH
DRAIN MANUAL TRANSAXLE OIL
1. Remove the filler plug and the gasket.
2. Remove the drain plug and gasket, and then drain the manual transaxle oil.
3. Install a new gasket and the drain plug.
  Torque: 39 N*m (400 kgf*cm, 29 ft.*lbf)
ADD MANUAL TRANSAXLE OIL
1. Add manual transaxle oil.

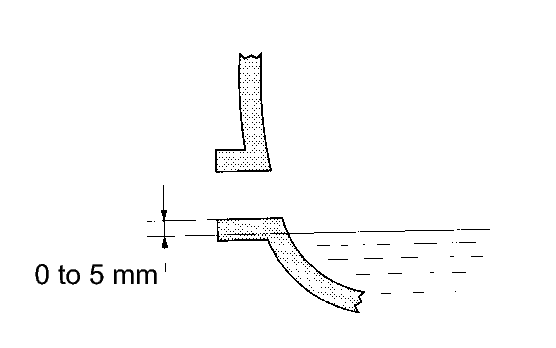

  Fig 1: Inspecting Transaxle Oil
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Manual Transaxle Oil

  Oil Grade

  API GL-4

  Viscosity

  SAE 75W

  Standard Capacity

  2.5 Liters (2.6 US qts, 2.2Imp. qts)
  NOTE:
  - Problems may occur if the oil level is too high or low.
  - After replacing the oil, drive the vehicle and check the oil level again.
2. Install the transmission filler plug and a new gasket.
  Torque: 39 N*m (400 kgf*cm, 29 ft.*lbf)
INSPECT MANUAL TRANSAXLE OIL See step 1
INSTALL ENGINE UNDER COVER LH
