Shift Lever Assembly: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

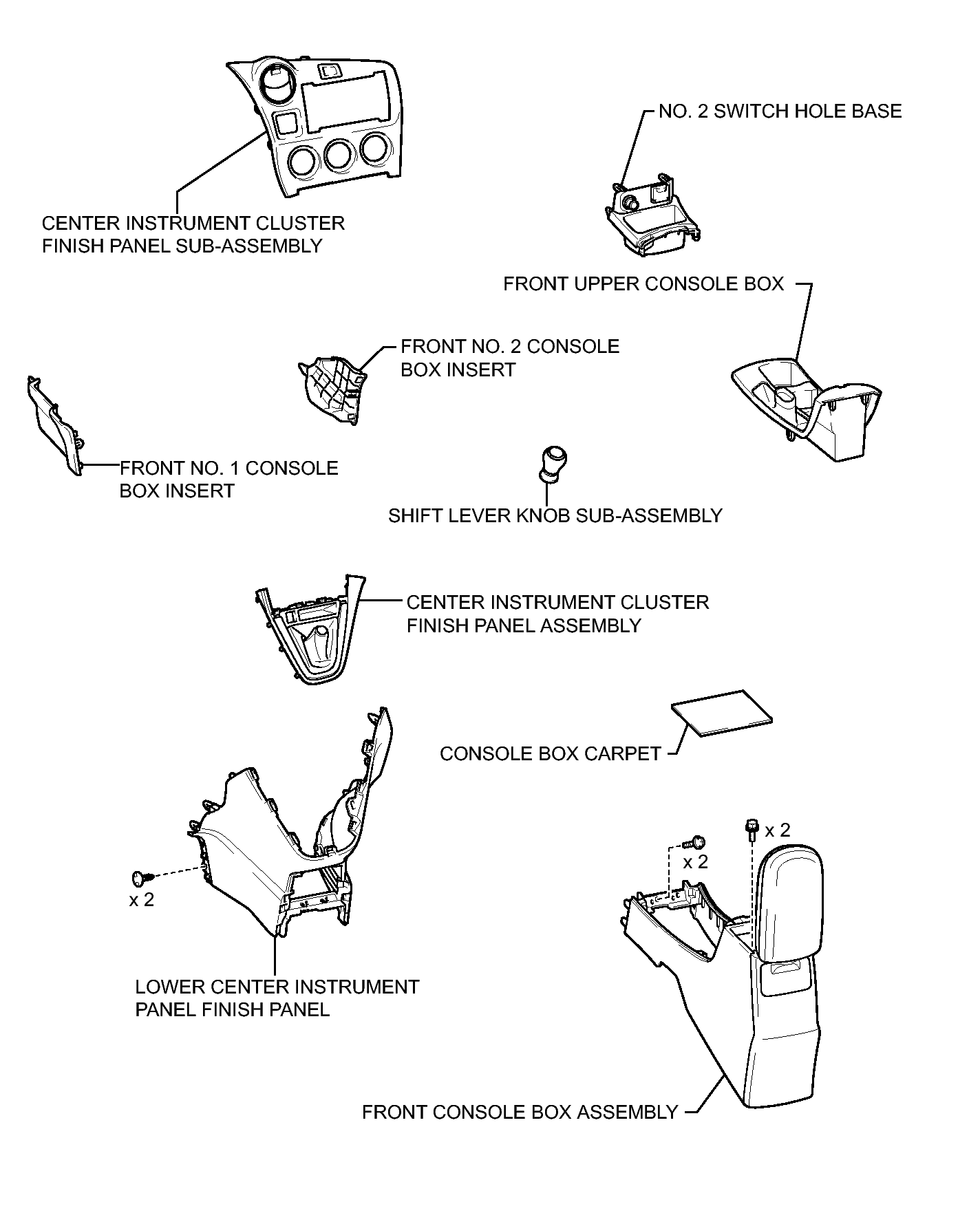

Fig 1: Identifying Shift Lever Assembly Components (1 Of 2)
GTY244830Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

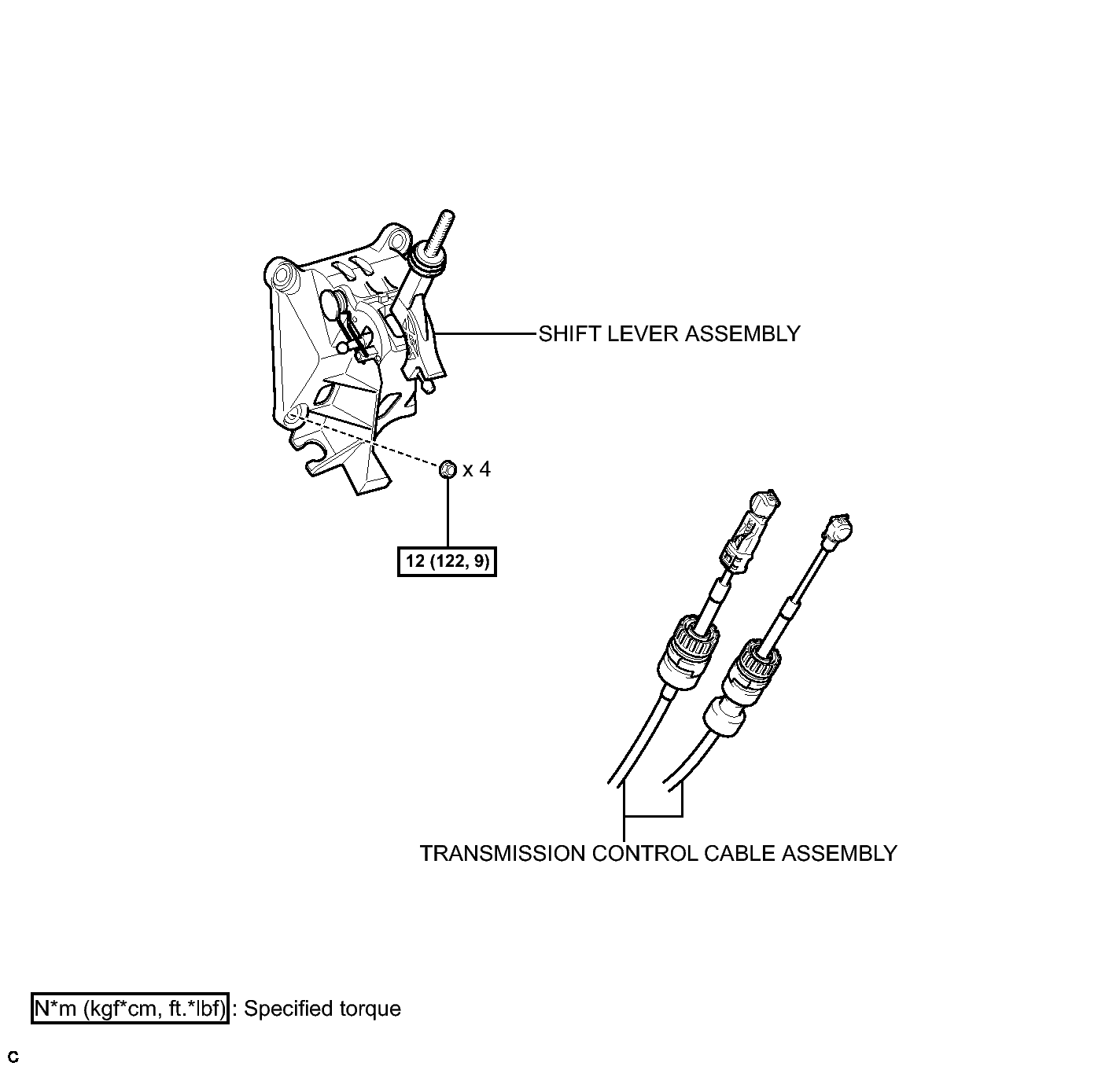

Fig 1: Shift Lever Assembly Replacement Components With Torque Specifications (2 Of 2)
GTY244760Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
