Valve Body Assembly: Installation: Installation

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL MANUAL VALVE
    1. Install the manual valve to the valve body.
  2. INSTALL TRANSMISSION VALVE BODY ASSEMBLY
    1. Install the spring and check ball body.

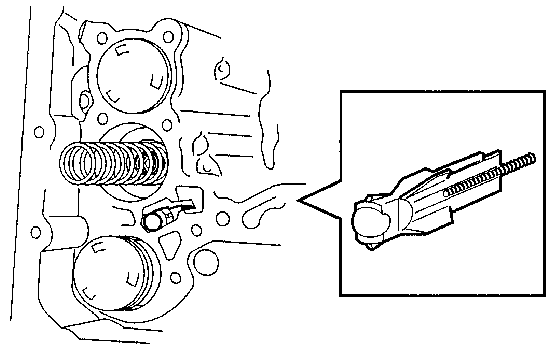

      Fig 1: Identifying Check Ball Body And Spring
      GTY242623Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Align the groove of the manual valve with the pin of lever.

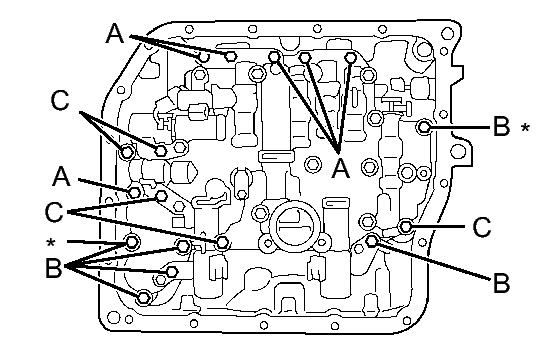

      Fig 2: Tightening Bolts
      GTY231424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the 17 bolts.

      Torque: 11 N*m (112 kgf*cm, 8 ft.*lbf)

      NOTE:
      • Push the valve body against the accumulator piston spring and the check ball body to install it.
      • Temporarily tighten the bolts marked * in the illustration first because they are positioning bolts.

      HINT:

      Each bolt length is indicated below.

      Bolt length

      Bolt A

      25 mm (0.984 in.)

      Bolt B

      41 mm (1.61 in.)

      Bolt C

      45 mm (1.77 in.)

  3. INSTALL TRANSMISSION WIRE
    1. Coat the O-ring of the temperature sensor with ATF WS.

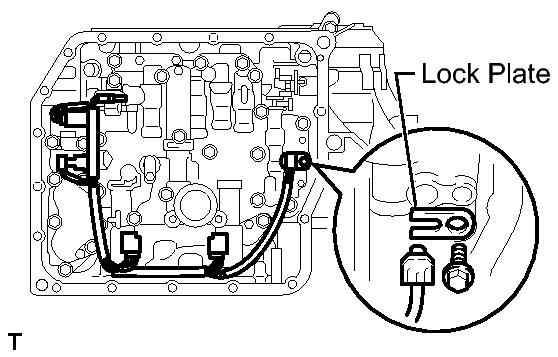

      Fig 3: Disconnecting Transmission Wire
      GTY158670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the ATF temperature sensor with the lock plate and bolt.

      Torque: 6.6 N*m (67 kgf*cm, 58 in.*lbf)

    3. Connect the transmission wire to the 5 shift solenoid valve connectors.
  4. INSTALL VALVE BODY OIL STRAINER ASSEMBLY
    1. Coat a new O-ring with ATF WS.
    2. Install the O-ring to the oil strainer.

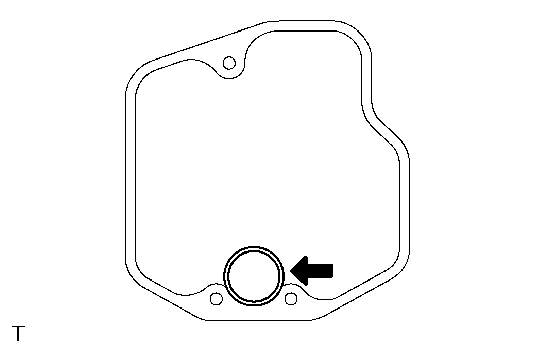

      Fig 4: Locating Valve Body Oil Strainer O-Ring
      GTY216072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the oil strainer with the 3 bolts.

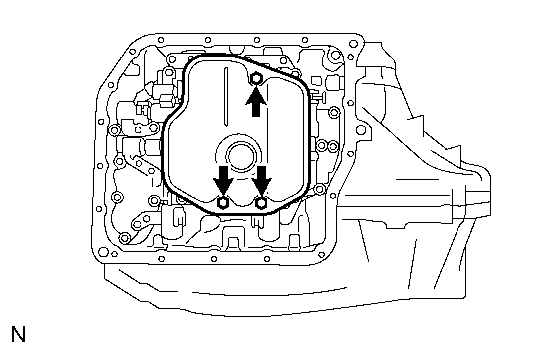

      Fig 5: Locating Oil Strainer Bolts
      GTY163516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 11 N*m (112 kgf*cm, 8 ft.*lbf)

  5. INSTALL AUTOMATIC TRANSAXLE OIL PAN SUB-ASSEMBLY  See step  2
  6. INSTALL ENGINE UNDER COVER LH
  7. ADD AUTOMATIC TRANSAXLE FLUID
  8. INSPECT TRANSAXLE FLUID LEVEL  See step  1
