Engine Assembly: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

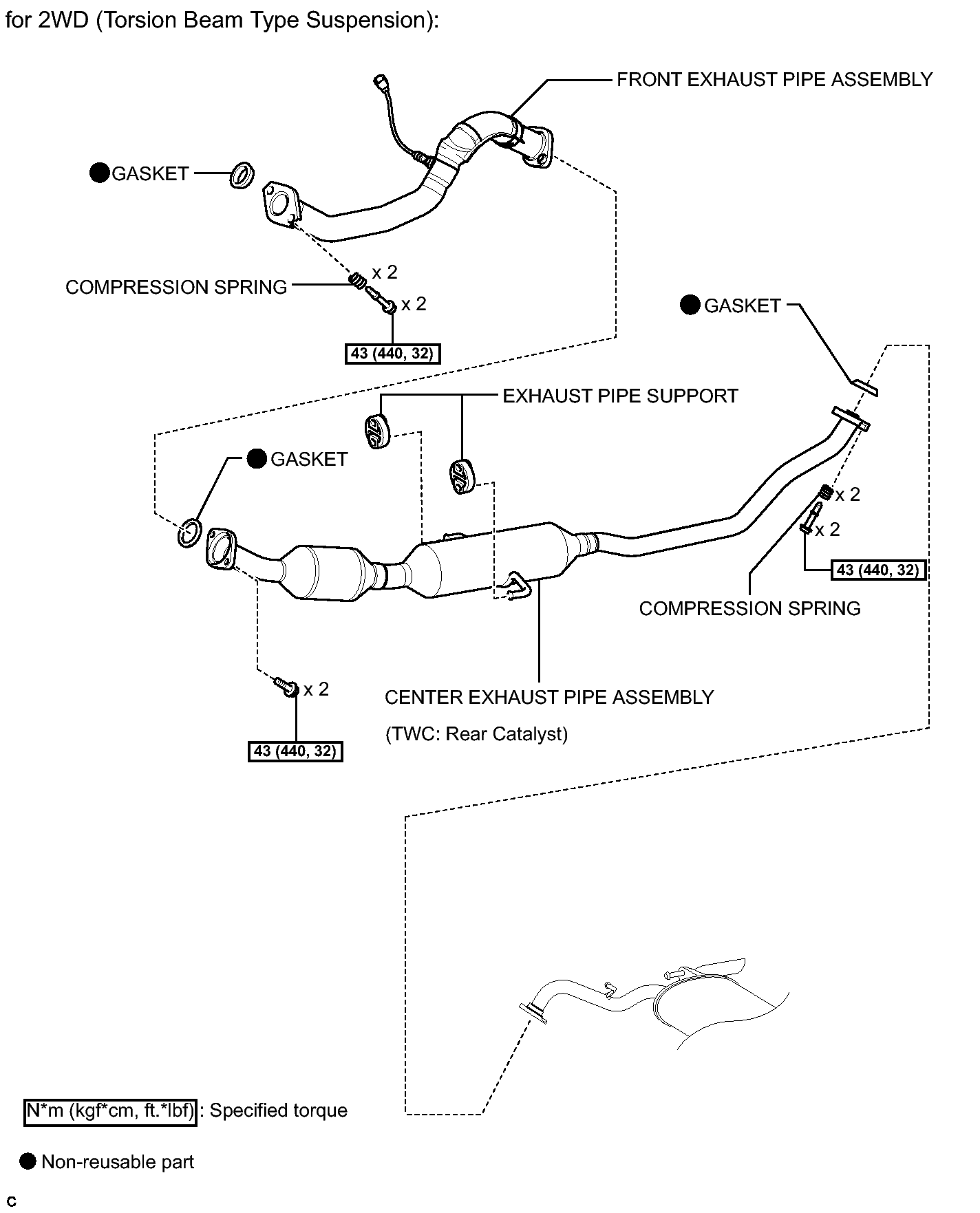

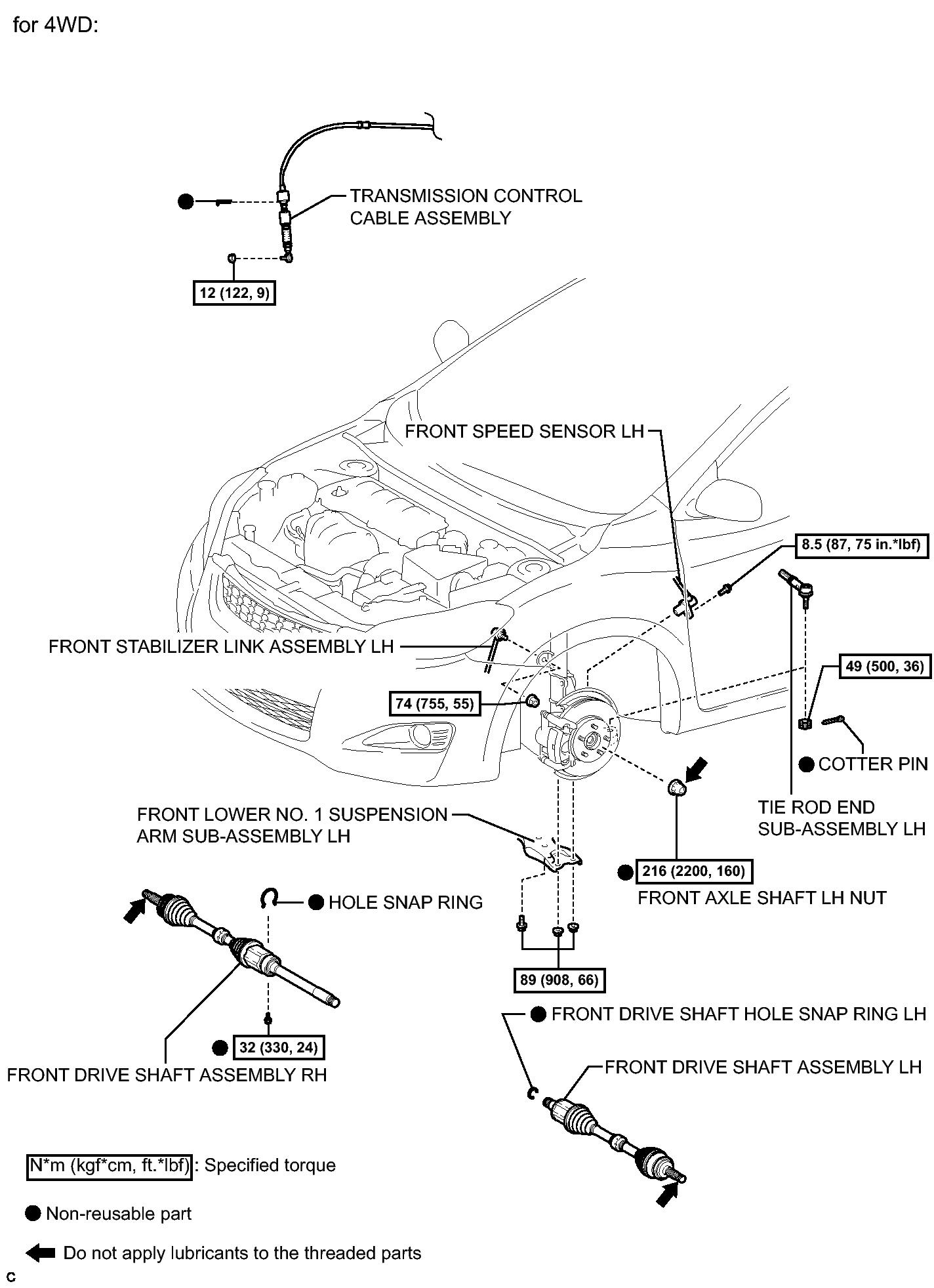

Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (1 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

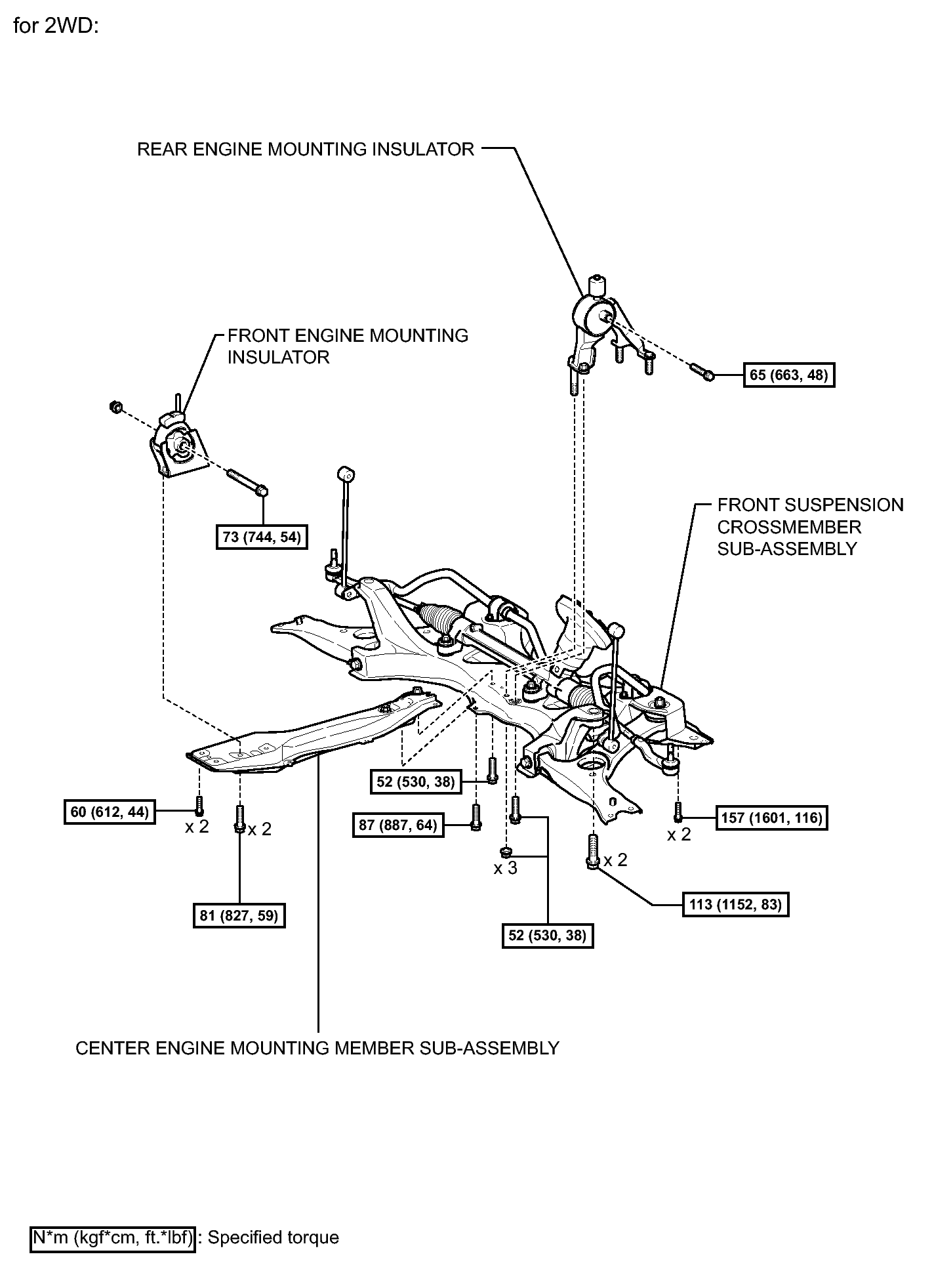

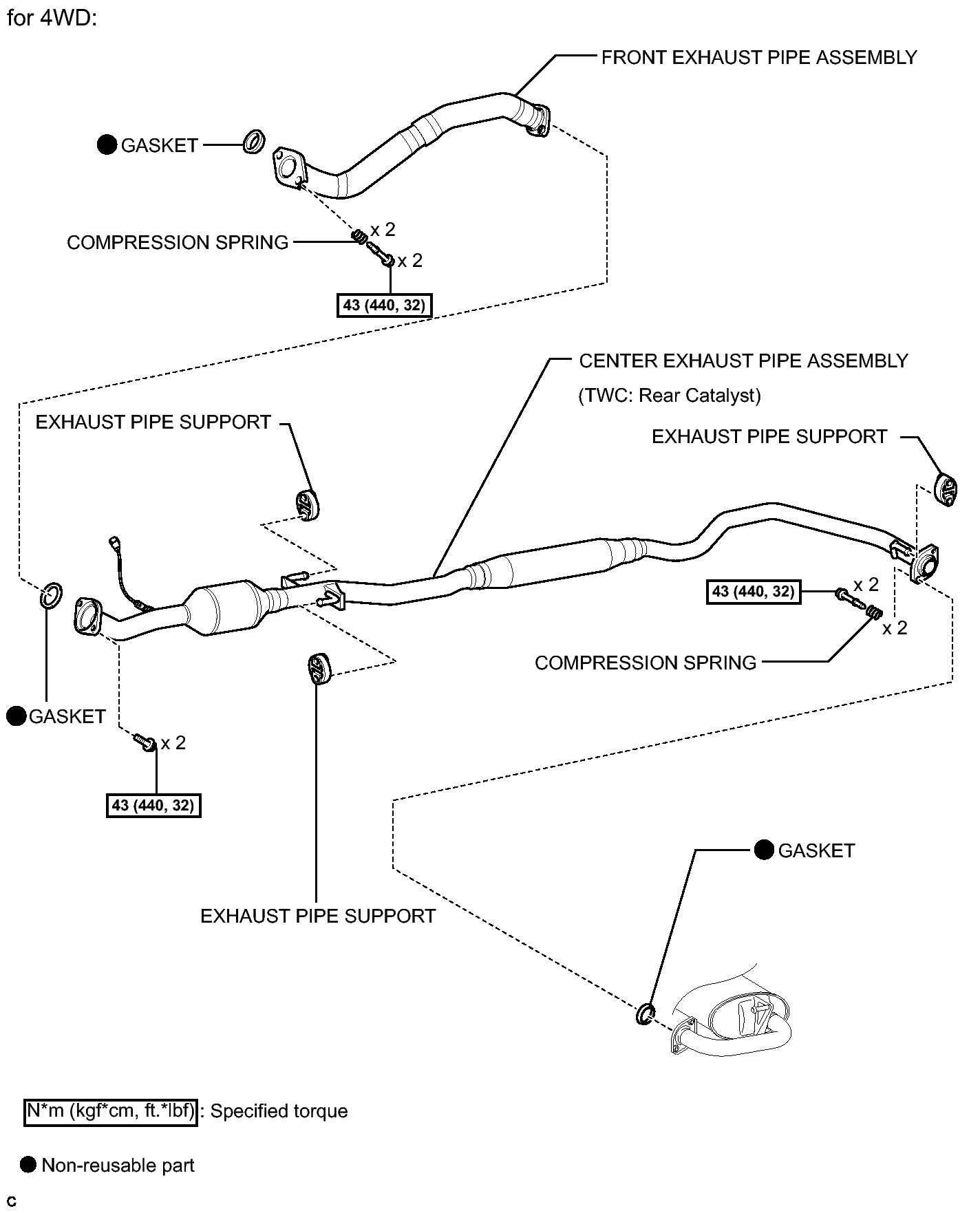

Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (2 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

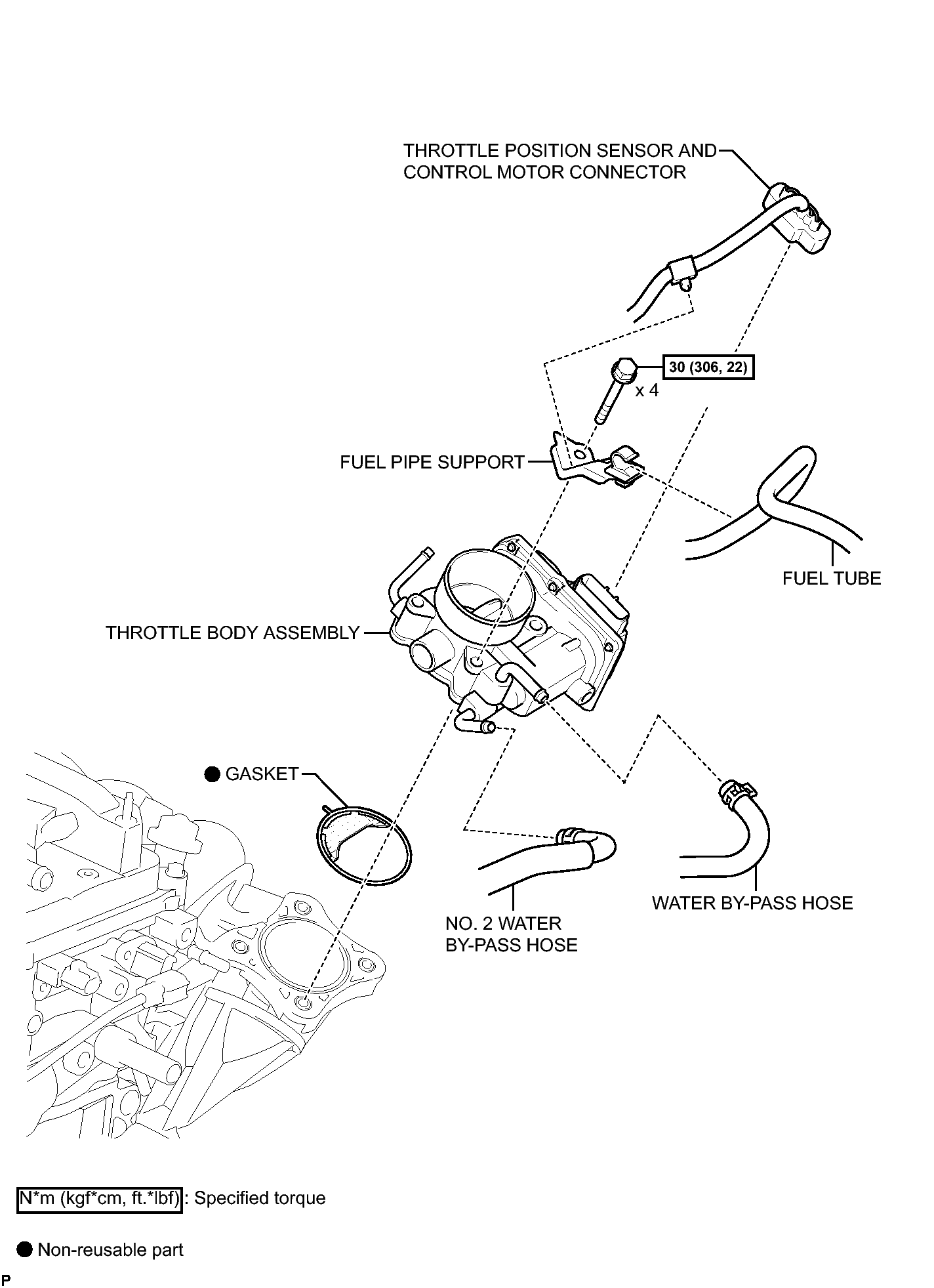

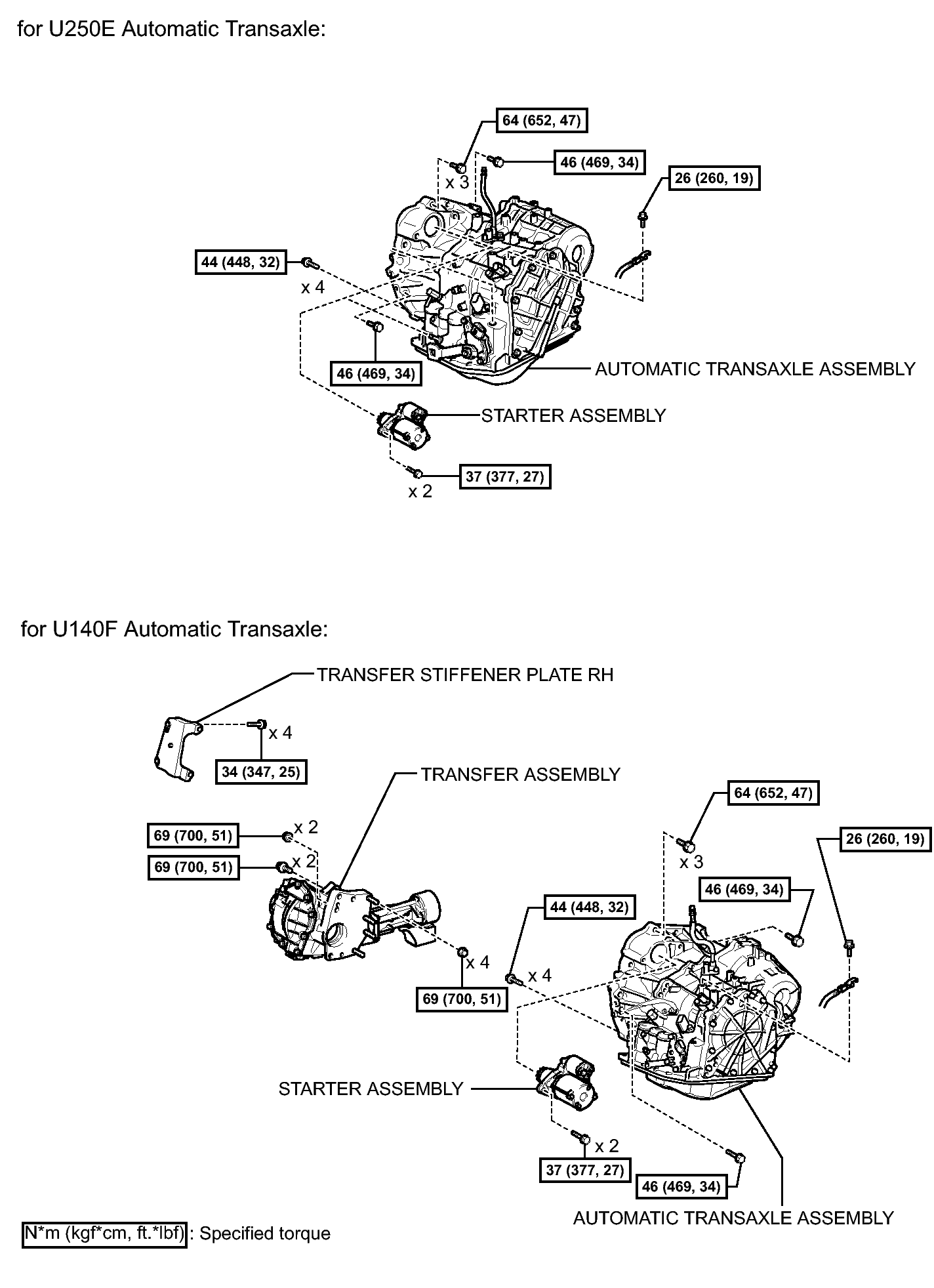

Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (3 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

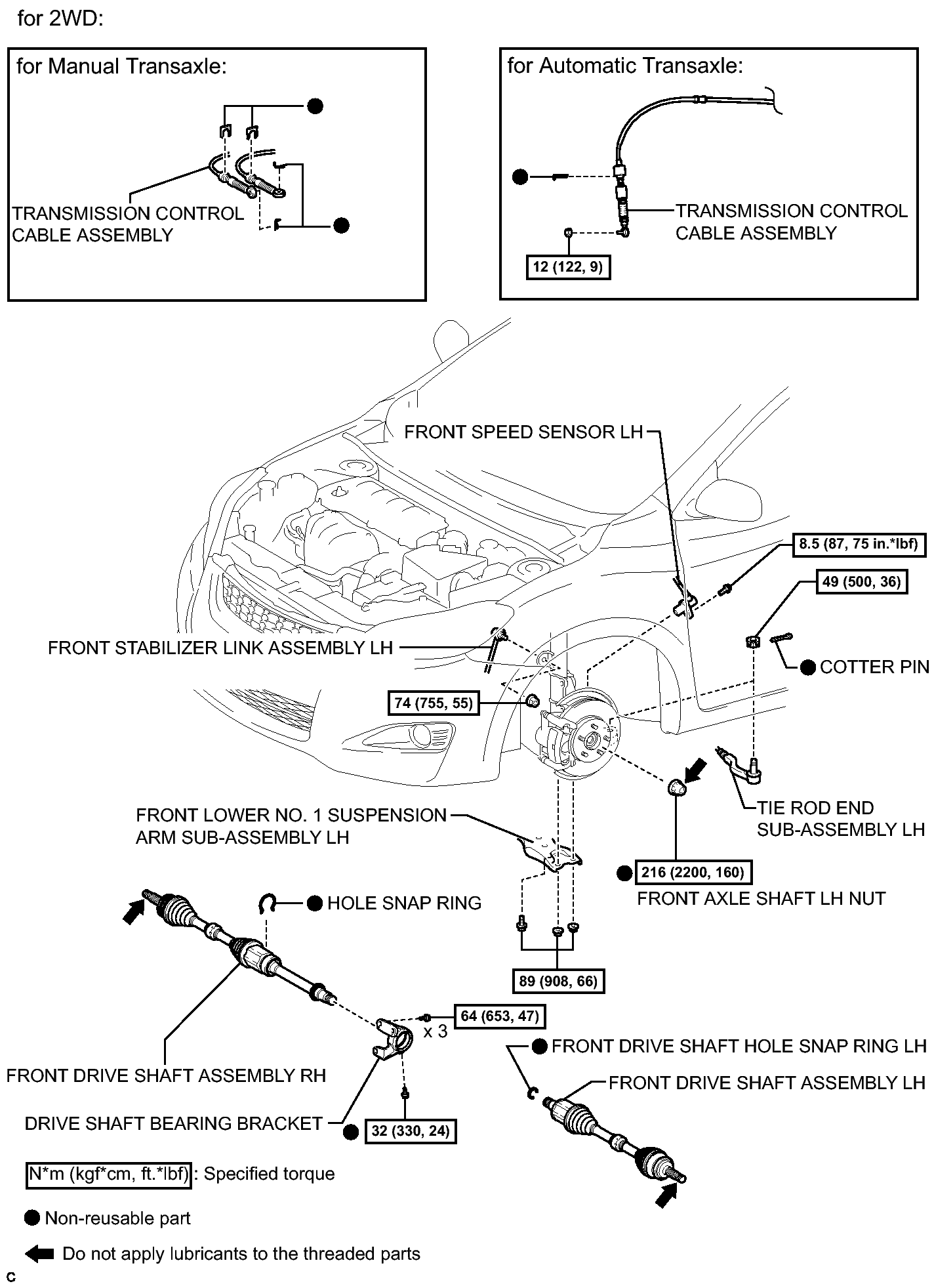

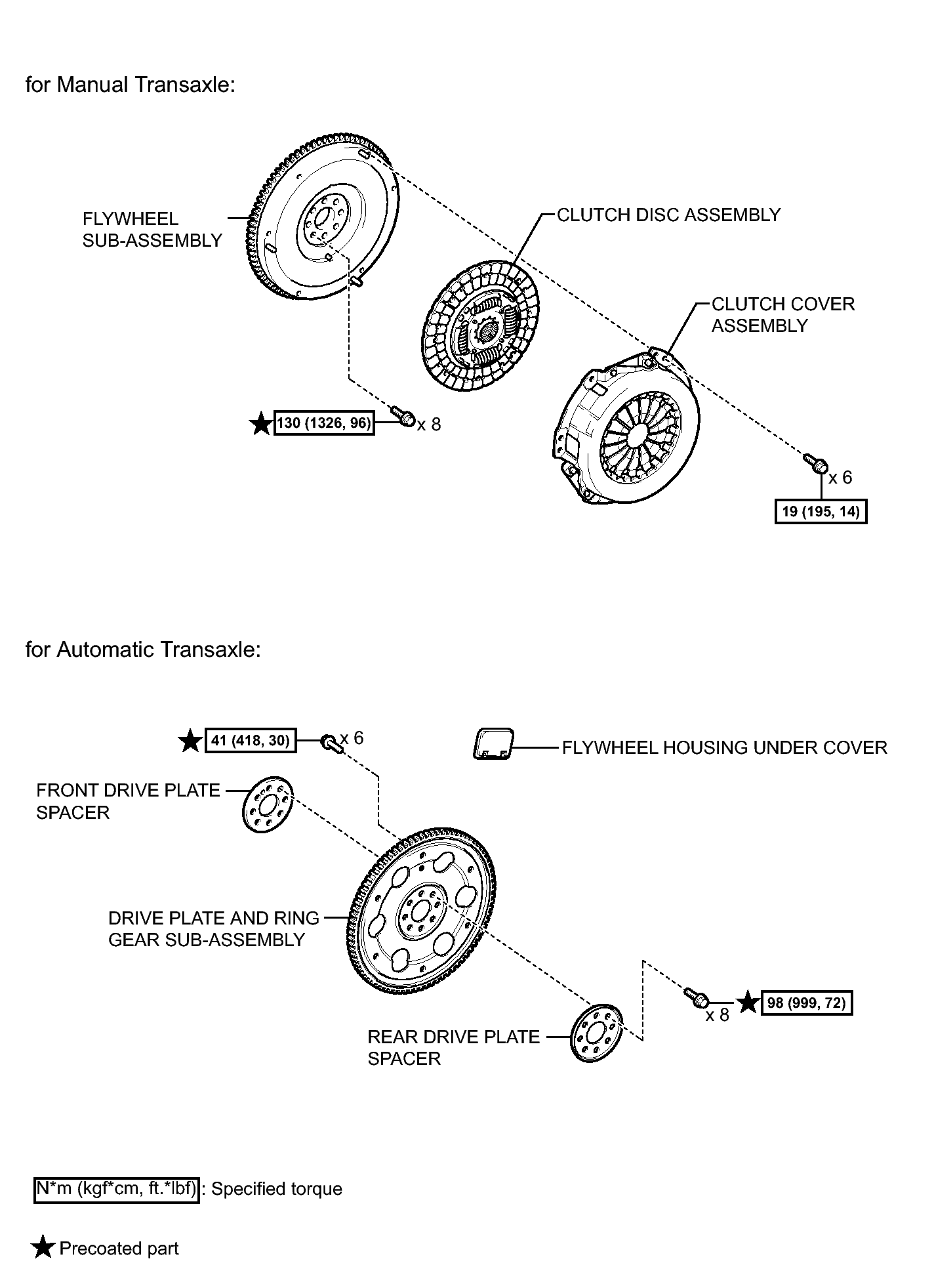

Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (4 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

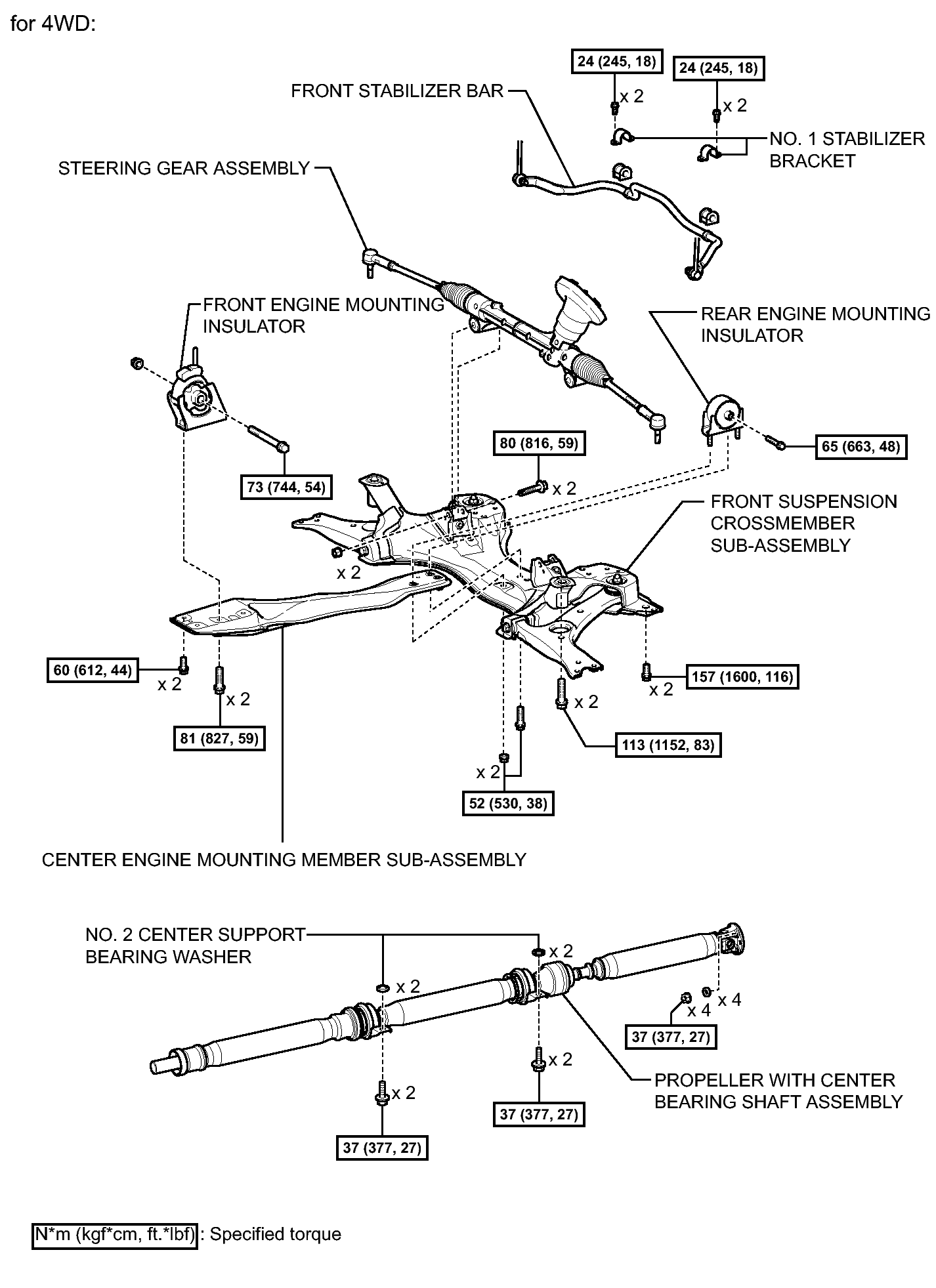

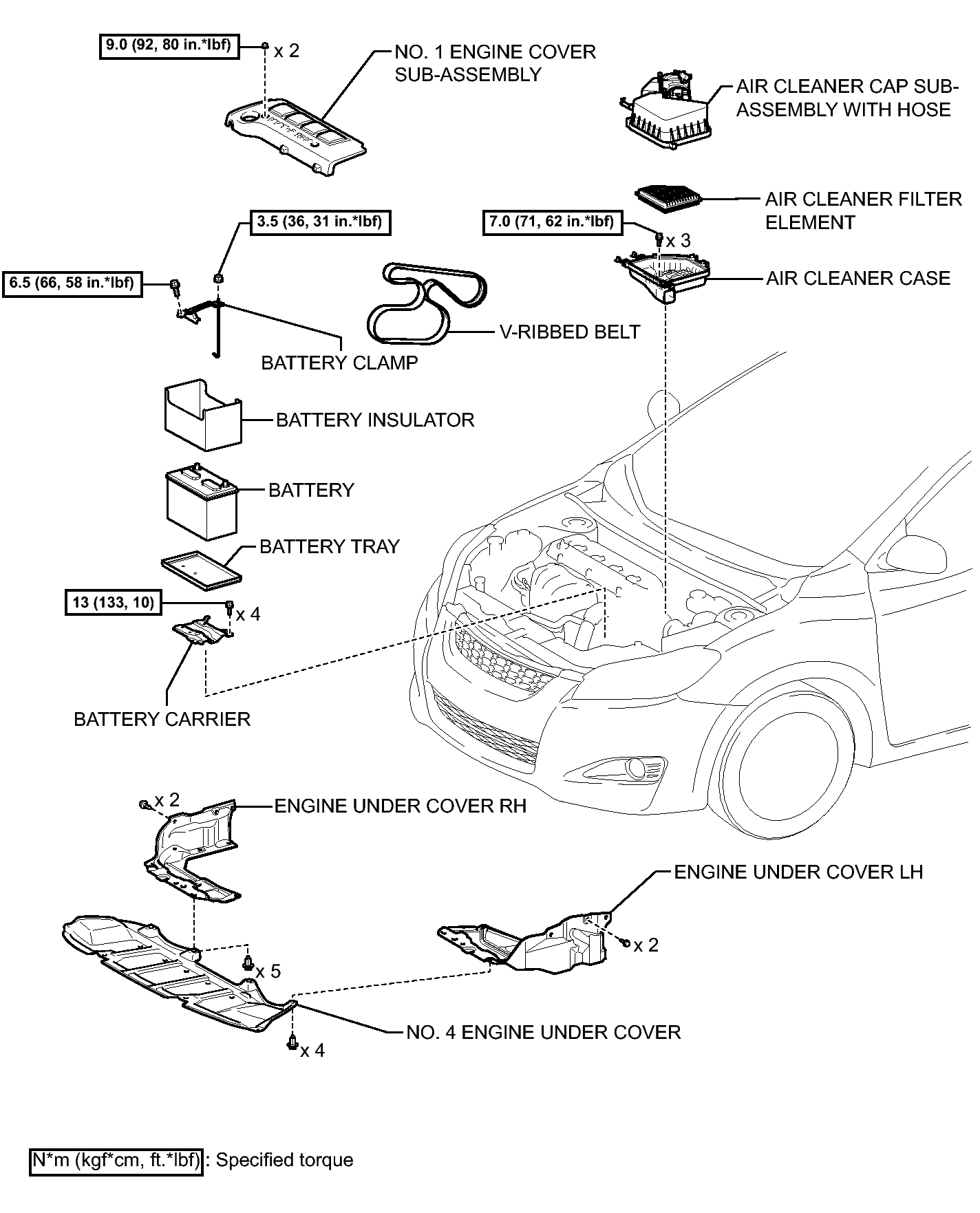

Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (5 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

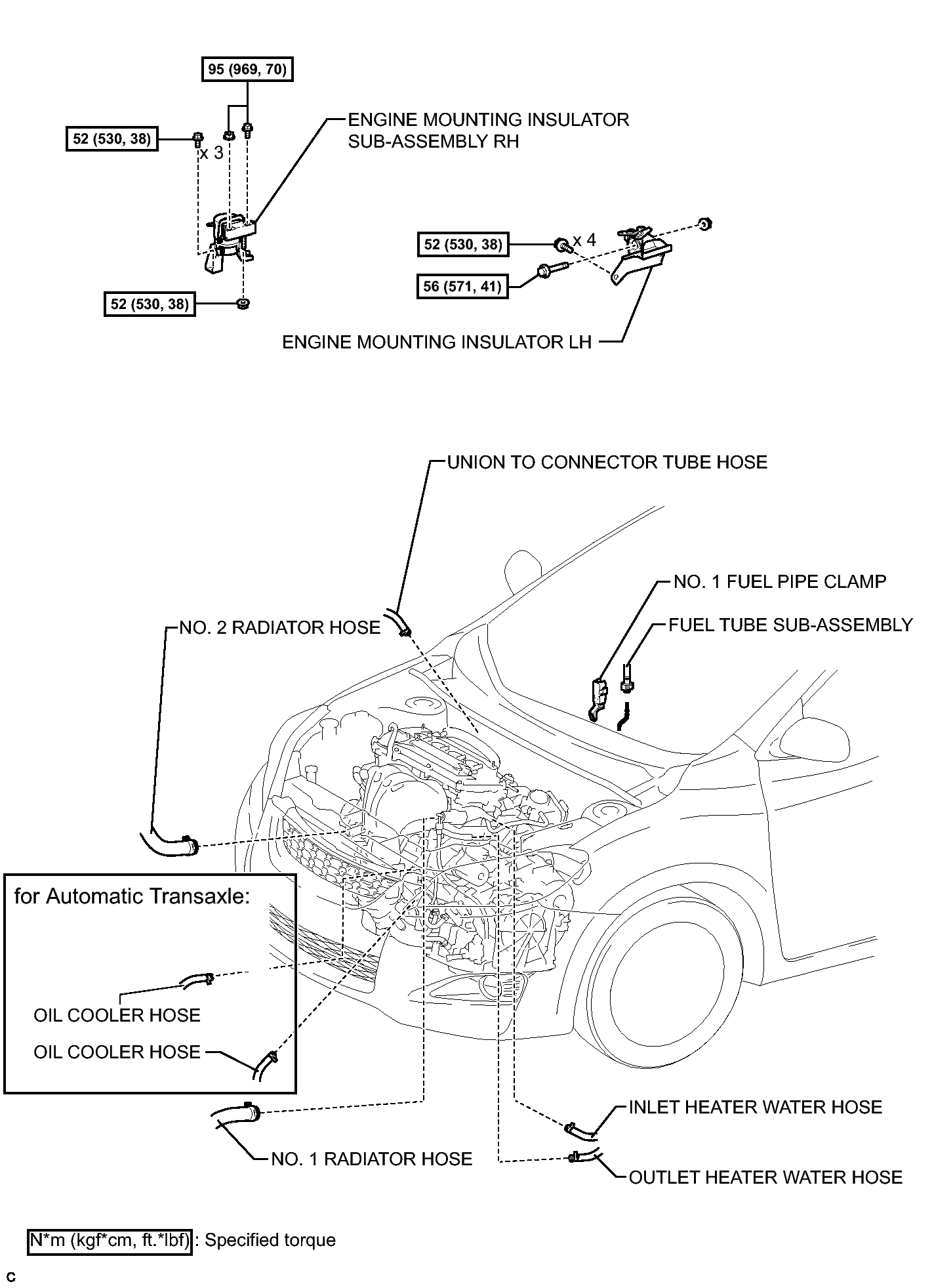

Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (6 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

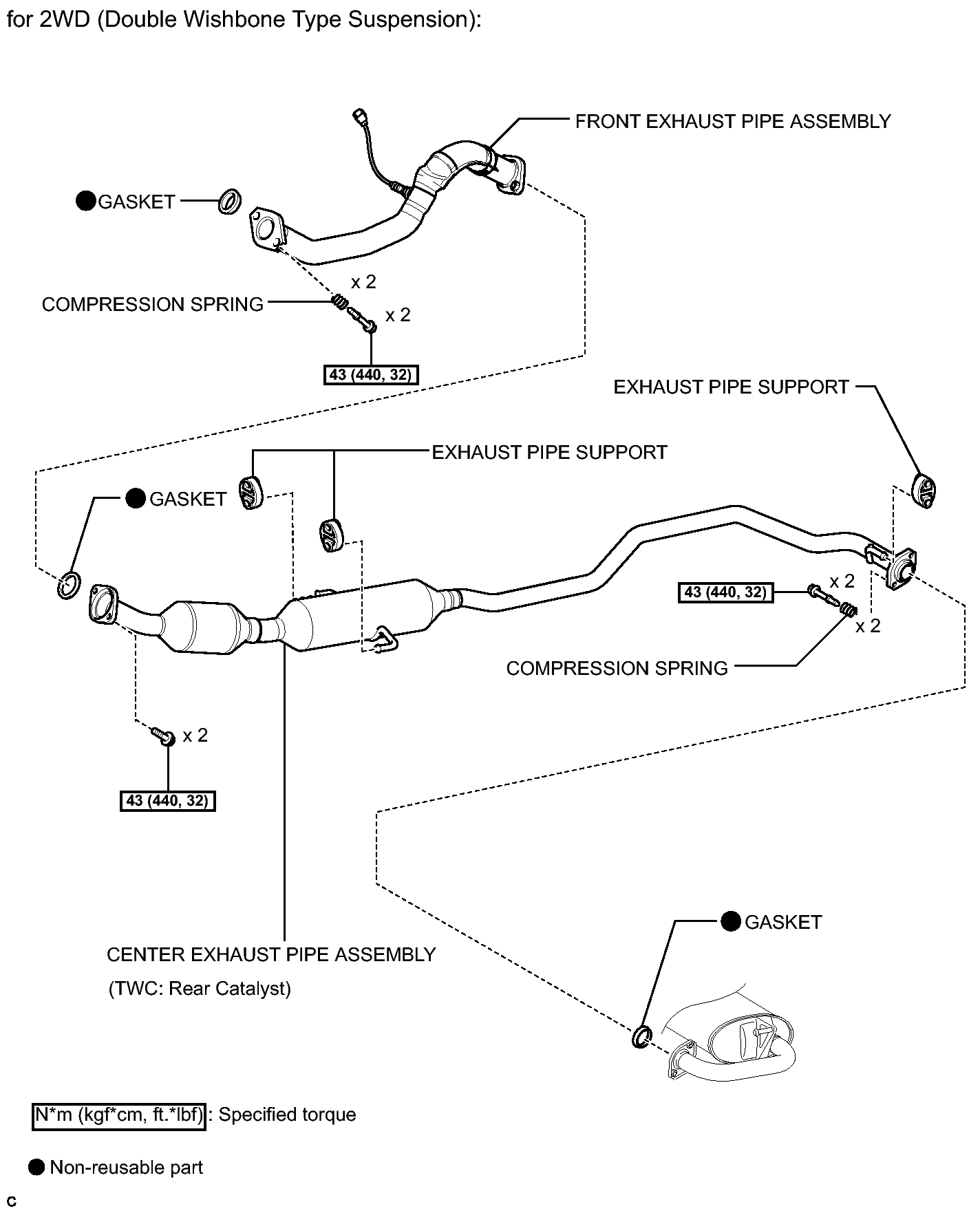

Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (7 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

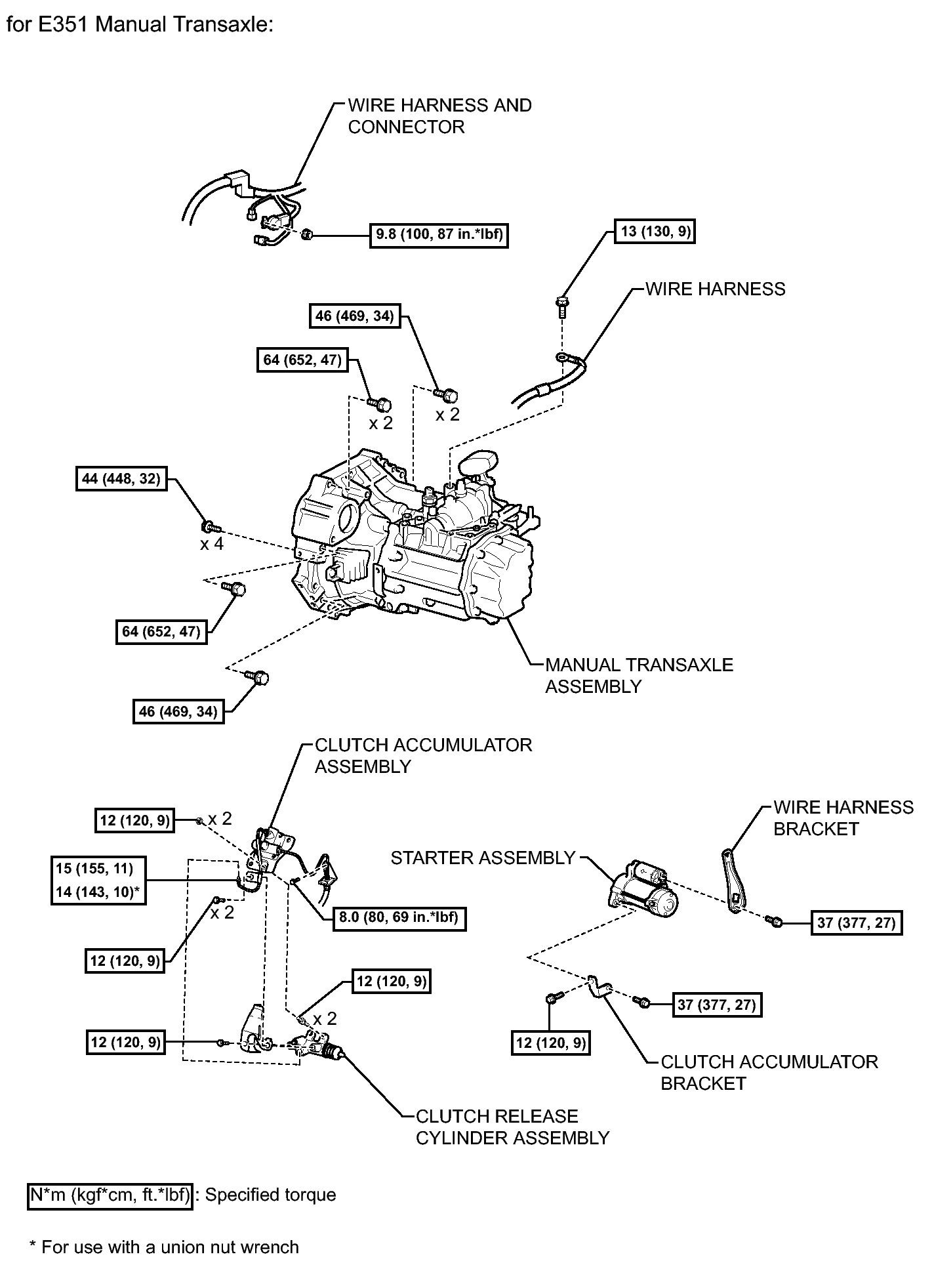

Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (8 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (9 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (10 Of 14)

Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (11 Of 14)

Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (12 Of 14)

Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (13 Of 14)

Fig 1: Identifying Engine Assembly Replacement Components With Torque Specifications (14 Of 14)
