INSTALL OIL PUMP COVER
1. Coat the drive rotor and driven rotor with engine oil.
2. Place the drive and driven rotors into the oil pump with the marks facing the pump cover side.

  Fig 1: Identifying Mark On Oil Pump Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the oil pump cover with the 5 bolts.

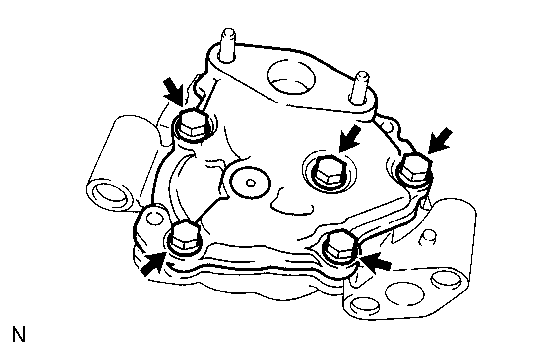

  Fig 2: Locating Oil Pump Cover Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 8.8 N*m (90 kgf*cm, 78 in.*lbf)
INSTALL OIL PUMP RELIEF VALVE
1. Coat the relief valve with engine oil.
2. Insert the relief valve and spring into the pump body hole.

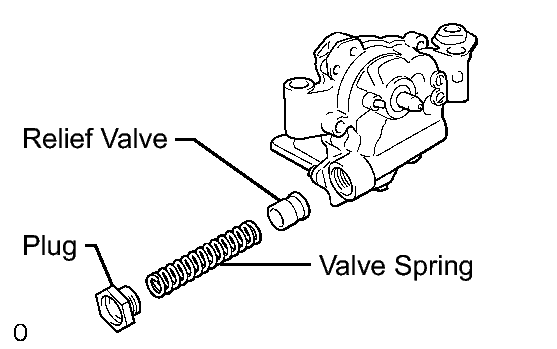

  Fig 3: Identifying Valve Spring And Relief Valve
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using a 27 mm socket wrench, install the plug.
  Torque: 49 N*m (500 kgf*cm, 36 ft.*lbf)
INSTALL OIL PUMP STRAINER
1. Install a new gasket and the oil strainer with the 2 nuts.

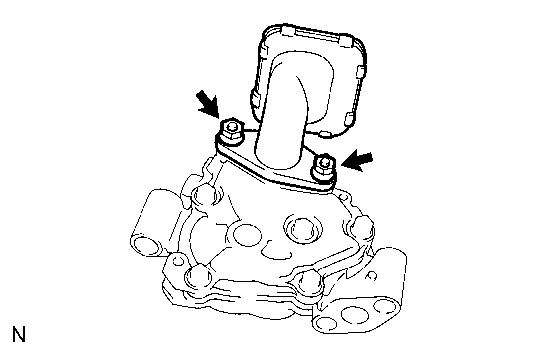

  Fig 4: Locating Oil Pump Strainer Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 8.8 N*m (90 kgf*cm, 78 in.*lbf)
